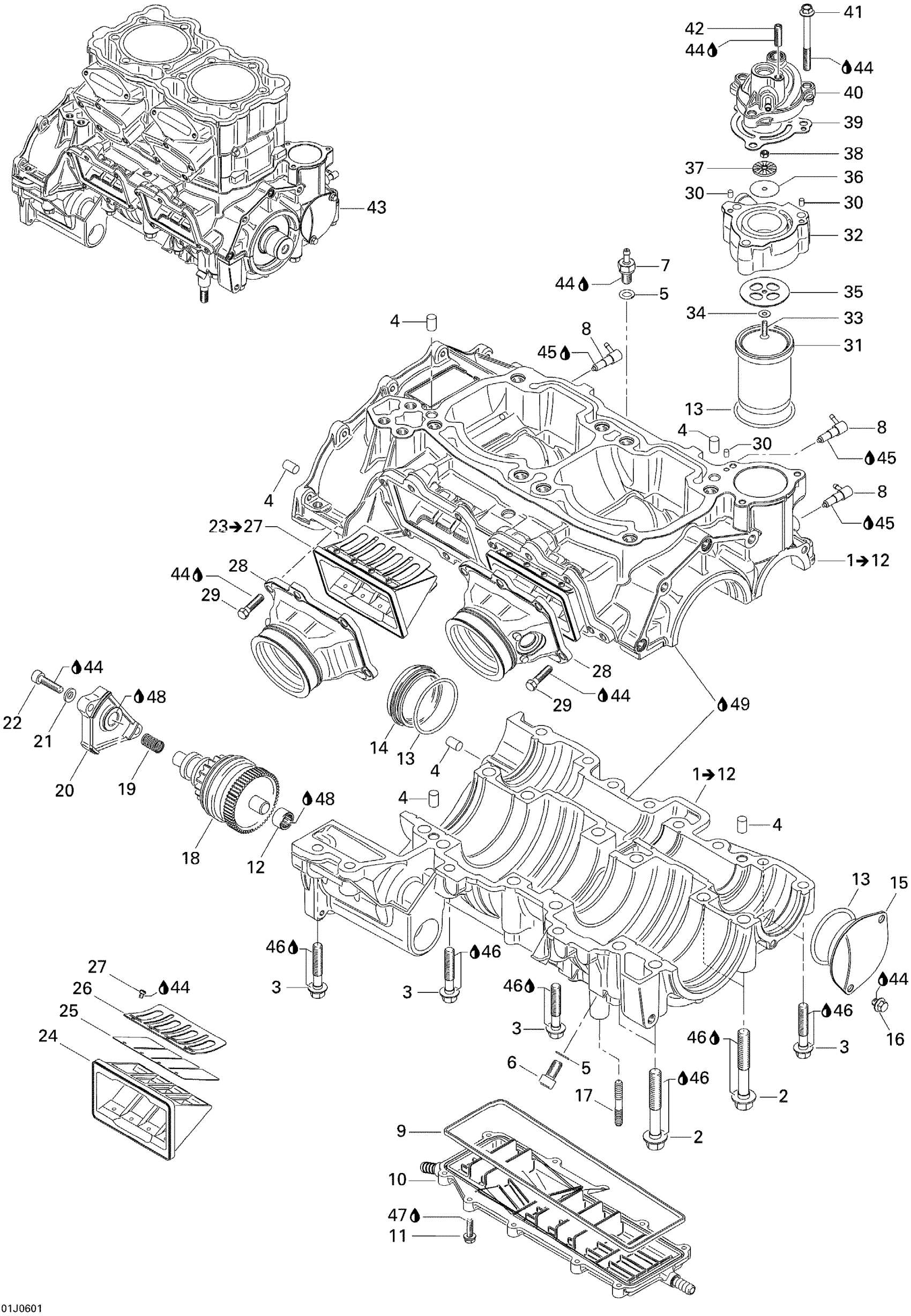

Sea-doo Sportster LE DI, 2006 Crankcase And Reed Valve Diagram

#

Description
Price

1

CRANKCASE ASSY 947-DI - Call your local BRP dealership | Includes 1 to 12

420888534

Unavailable

2

HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership

420941333

$15.66

3

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940638

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Sealing Ring

420950141

$1.64

6

Socket Head Screw M8 X 16

205081660

Unavailable

7

VENT NIPPLE M8 - Call your local BRP dealership

420640970

Unavailable

8

Check Valve

420956511

$28.57

9

RUBBER RING - Call your local BRP dealership

420931880

$7.11

10

WATERCHANNEL COVER - Call your local BRP dealership

420811430

$59.20

11

Taptite Screw M5 X 20

420841558

Unavailable

12

Needle Bushing

420232482

$15.57

13

O-RING - Call your local BRP dealership

420230300

$6.85

14

BEARING COVER - Call your local BRP dealership

420811200

Unavailable

15

BEARING COVER - Call your local BRP dealership

420811205

Unavailable

16

Hex. Flange Screw M6 X 12

207661244

$1.70

17

STUD M10 X 18 - Call your local BRP dealership

420840290

Unavailable

18

Starter Drive Ass'y

420888042

$287.27

19

Spring

420938204

$5.29

20

COVER - Call your local BRP dealership

420811210

Unavailable

21

SPRING WASHER - Call your local BRP dealership

420845020

$0.83

22

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

23

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

REED PEDAL - Call your local BRP dealership

420924612

Unavailable

26

REED PEDAL STOP - Call your local BRP dealership

420924617

Unavailable

27

Phillips Screw M3 X 5

420941215

$1.42

28

CARBURATOR ADAPTER ASS'Y - Call your local BRP dealership

420867890

$87.66

29

Hex. Flange Screw M6 X 25

207662544

$0.53

30

PIN - Call your local BRP dealership

420232020

$8.60

31

COMPRESSOR SLEEVE - Call your local BRP dealership

420923911

$191.51

32

COMPRESSOR HEAD - Call your local BRP dealership

420923890

Unavailable

33

OVAL HEAD SCREW - Call your local BRP dealership

420841368

$6.25

34

WASHER - Call your local BRP dealership

420944590

$8.60

35

INLET REED DISK - Call your local BRP dealership

420854500

$11.40

36

OUTLET REED DISK - Call your local BRP dealership

420854510

Unavailable

37

DIAPHRAGM GUIDE - Call your local BRP dealership

420944600

Unavailable

38

LOCK NUT M4 - Call your local BRP dealership

420242533

$9.97

39

GASKET - Call your local BRP dealership

420931870

$10.52

40

COMPRESSOR COVER - Call your local BRP dealership

420923902

Unavailable

41

HEX. FLANGED SCREW M6 X 55 - Call your local BRP dealership

420640563

$9.97

42

ADJUSTER SCREW M6 X 25 - Call your local BRP dealership

420640873

Unavailable

43

Short Block Ass'y, 947 Di

420094707

Unavailable

44

Loctite 243, 10 ml

293800060

$20.77

45

Sealant Loctite 648

219703000

$35.72

46

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Dow Corning 111, 150 g

413707000

$57.82

49

Loctite 5910, 300 ml

293800081

$57.99
