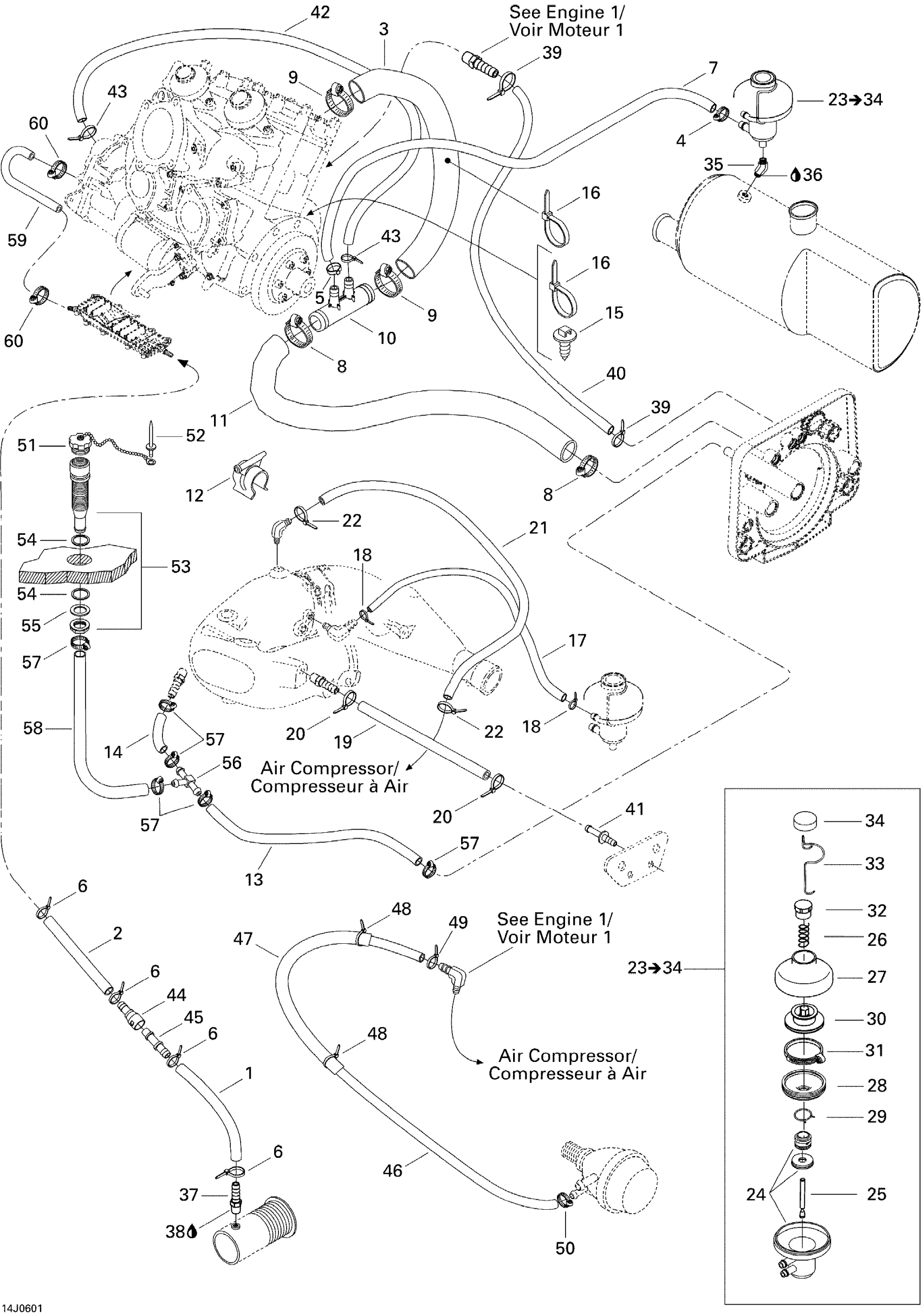

Sea-doo Sportster LE DI, 2006 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

3

FORMED HOSE - Call your local BRP dealership

276000098

Unavailable

4

Tridon Gear Clamp

293650171

$2.46

5

Crimp Clamp, 15.3-706R

293650047

$2.64

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

8

Tridon Gear Clamp

293650051

$3.61

9

Tridon Gear Clamp

293650051

$3.61

10

DOUBLE FITTING - Call your local BRP dealership

204300182

Unavailable

11

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

12

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

13

Was 276000001 Hose 12.5 mm

219704394

$42.87

14

Was 276000001 Hose 12.5 mm

219704394

$42.87

15

Mount Dart

293730040

$0.86

16

Tie Wrap 142 mm

293750002

$0.88

17

Hose 6 Mm 15000Mm Long

219704360

$104.62

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Hose 6 Mm 15000Mm Long

219704360

$104.62

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

22

Tie Wrap 94 mm | 4X4

293750001

$0.83

23

PRESSURE REGULATEUR - Call your local BRP dealership | Includes 23 to 34

274000898

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

26

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

27

Valve Cover

420911552

$36.54

28

Bellow

420260721

$42.87

29

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Rivalair Clamp

293650065

Unavailable

32

Adjuster Screw

420241221

$12.15

33

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

34

Cover Screw

274000903

Unavailable

35

MALE CONNECTOR - Call your local BRP dealership

293700033

Unavailable

36

Was 293800013 Loctite 56765

219704454

$63.40

37

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

38

Was 293800013 Loctite 56765

219704454

$63.40

39

Tie Wrap 94 mm | 4X4

293750001

$0.83

40

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

41

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

42

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

43

Tie Wrap 94 mm | 4X4

293750001

$0.83

44

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

45

Quick Male Fitting

275500435

Unavailable

46

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

47

Tubing 10 MM 1000MM Long

219704407

$2.20

48

Tie Wrap 94 mm | 4X4

293750001

$0.83

49

Tie Wrap 142 mm

293750002

$0.88

50

Tridon Gear Clamp

293650170

$1.74

51

PLUG - Call your local BRP dealership

293000055

Unavailable

52

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

53

FITTING - Call your local BRP dealership

293710081

Unavailable

54

GASKET - Call your local BRP dealership

293250028

Unavailable

55

WASHER - Call your local BRP dealership

293050003

Unavailable

56

T-FITTING - Call your local BRP dealership

293710053

Unavailable

57

Tridon Gear Clamp

293650172

$2.68

58

Was 276000001 Hose 12.5 mm

219704394

$42.87

59

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

60

Tridon Gear Clamp

293650171

$2.46
