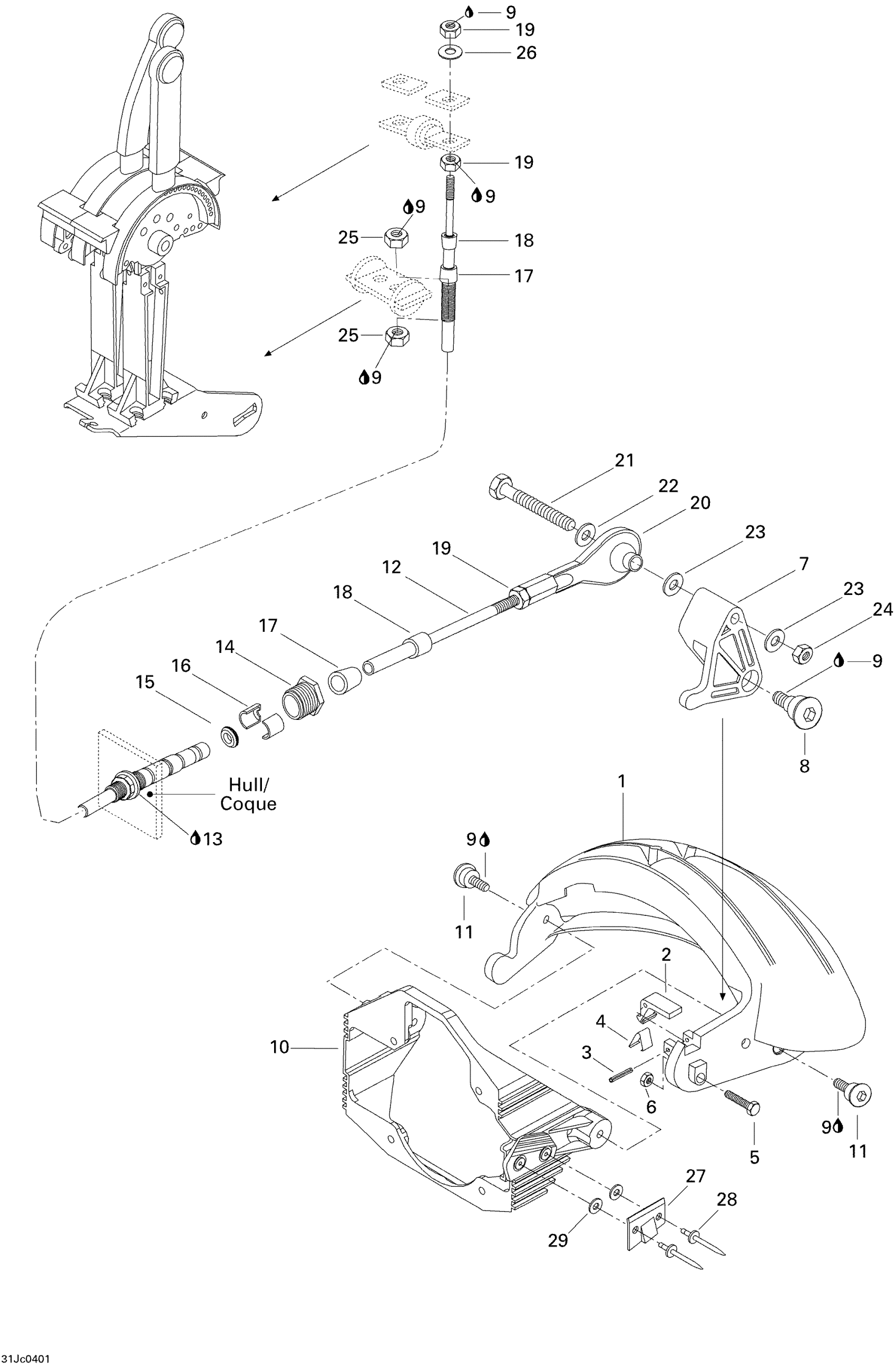

Sea-doo Sportster LE DI, 2004 Reverse Diagram
#
Description
Price
1
REVERSE GATE - Call your local BRP dealership
271000947
Unavailable
2
HOOK LEVER - Call your local BRP dealership
271000430
Unavailable
3
Pin
211400009
Unavailable
4
Spring
271000431
Unavailable
5
Hex. Forming Screw M6 X 20
207162060
Unavailable
6
Hex. Elastic Stop Nut M6
232561600
Unavailable
7
CABLE LEVER - Call your local BRP dealership
271000583
Unavailable
8
SCREW-SHOULDER M8 - Call your local BRP dealership
211000077
Unavailable
9
Loctite 243, 10 ml
293800060
Unavailable
10
REVERSE GATE SUPPORT - Call your local BRP dealership
271000778
Unavailable
11
Screw
211000007
Unavailable
12
RH REVERSE CABLE - Call your local BRP dealership
204170044
Unavailable
13
Silicone Sealant 51388, 300 ml
296000309
Unavailable
14
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
15
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
16
Half Ring
277000055
Unavailable
17
Boot, Large
277000473
Unavailable
18
Boot, Small
277000466
Unavailable
19
Hex. Nut
212100005
Unavailable
20
BALL JOINT - Call your local BRP dealership
204170062
Unavailable
21
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
22
Flat Washer M6, Stainless
234062600
Unavailable
23
Stainless Flat Washer M6
234061600
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
Unavailable
25
Hex. Jam Nut
212100006
Unavailable
26
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
27
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
28
Pop Rivet 3/16"
293150043
Unavailable
29
Flat Washer | XT
211200035
Unavailable
