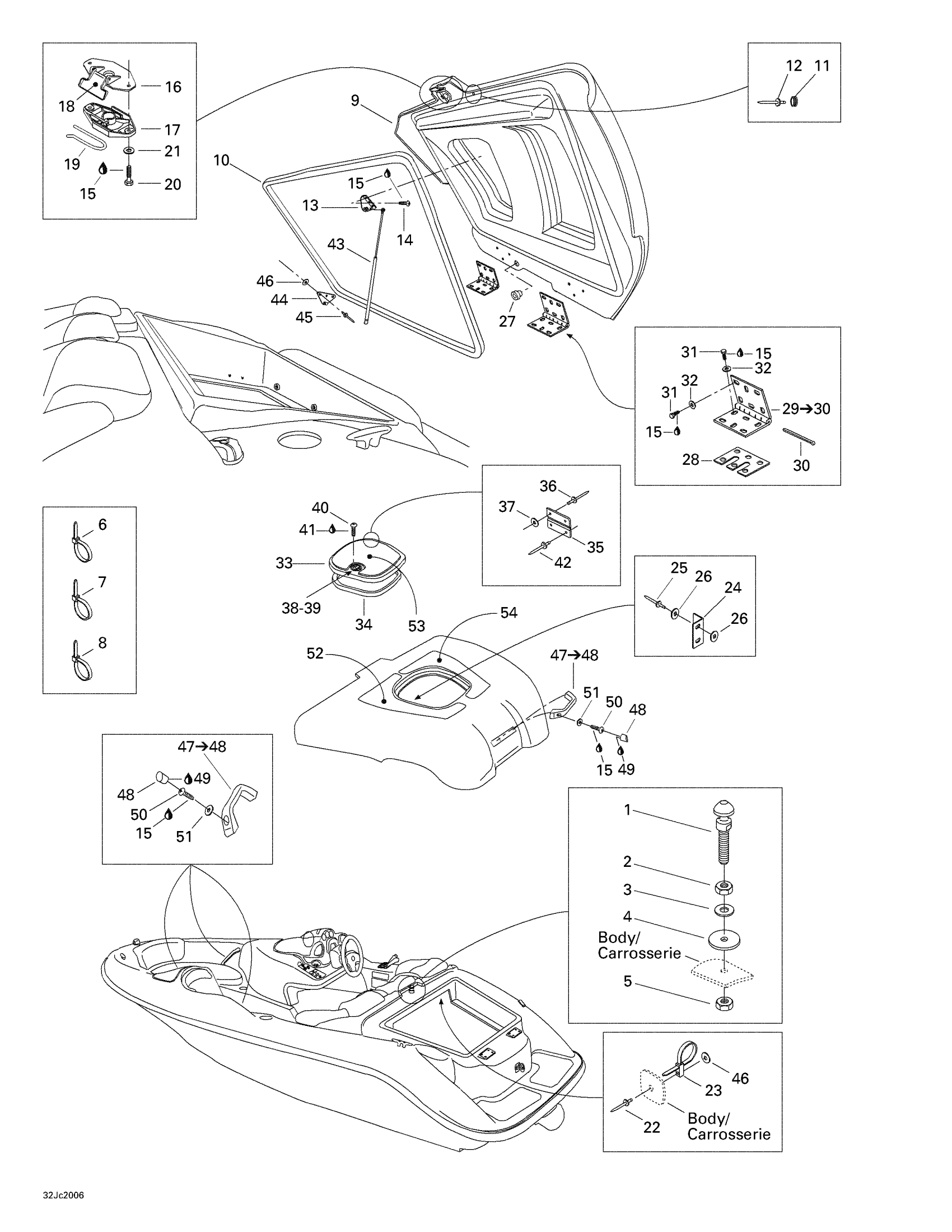

Sea-doo Sportster LE, 5693, 2000 Engine Compartment Diagram

#

Description
Price

1

Latch Stud

204700001

Unavailable

2

Hex. Jam Nut M10

232100600

$2.12

3

Flat Washer 10 mm, Stainless

234002600

$2.12

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

6

Tie Wrap 142 mm

293750002

$1.01

7

Tie Wrap 368 mm

293750008

$0.97

8

Tie-Rap 180 mm

414115200

$0.10

9

Engine Cover

204070713

Unavailable

10

Was 293200017 Neoprene Seal

219704365

$135.79

11

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

12

Pop Rivet 1/8”

293150015

$0.33

13

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

14

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Latch Ass'y

269700109

$23.10

17

Latch Ass'y

269700109

$23.10

18

Latch Ass'y

269700109

$23.10

19

Latch Spring

269700017

$8.34

20

Hex. Screw M6 X 25

207162560

$1.40

21

Stainless Flat Washer M6

234061600

$0.28

22

Pop Rivet 3/16"

293150013

$1.27

23

Tie-Rap

293750017

Unavailable

24

KEEPER - Call your local BRP dealership

204070060

Unavailable

25

Pop Rivet 3/16"

293150039

$1.31

26

Flat Washer M5, Stainless

234051600

$0.73

27

GROMMET - Call your local BRP dealership

293720017

Unavailable

28

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

29

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

30

Cotter Pin M2.5 X 12

204070205

Unavailable

31

Hex. Screw M6 X 25

207162560

$1.40

32

Stainless Flat Washer M6

234061600

$0.28

33

Rope Box Cover

204070716

Unavailable

34

Seal Tray 1000Mm Long

219704368

$12.30

35

Hinge

269700031

$8.96

36

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

37

Flat Washer 3 mm, Stainless Steel

234031600

$0.52

38

CUP BRACKET - Call your local BRP dealership

204070958

Unavailable

39

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

40

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

41

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

42

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

43

Cylinder

204070199

Unavailable

44

Shock Support

291000615

Unavailable

45

Pop Rivet 3/16"

293150043

$1.85

46

Flat Washer M5, Stainless

234051600

$0.73

47

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

48

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

49

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

50

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

51

Stainless Flat Washer M6

234061600

$0.28

52

LH Carpet

204900711

Unavailable

53

Cover Carpet

204900712

Unavailable

54

RH Carpet

204900713

Unavailable
