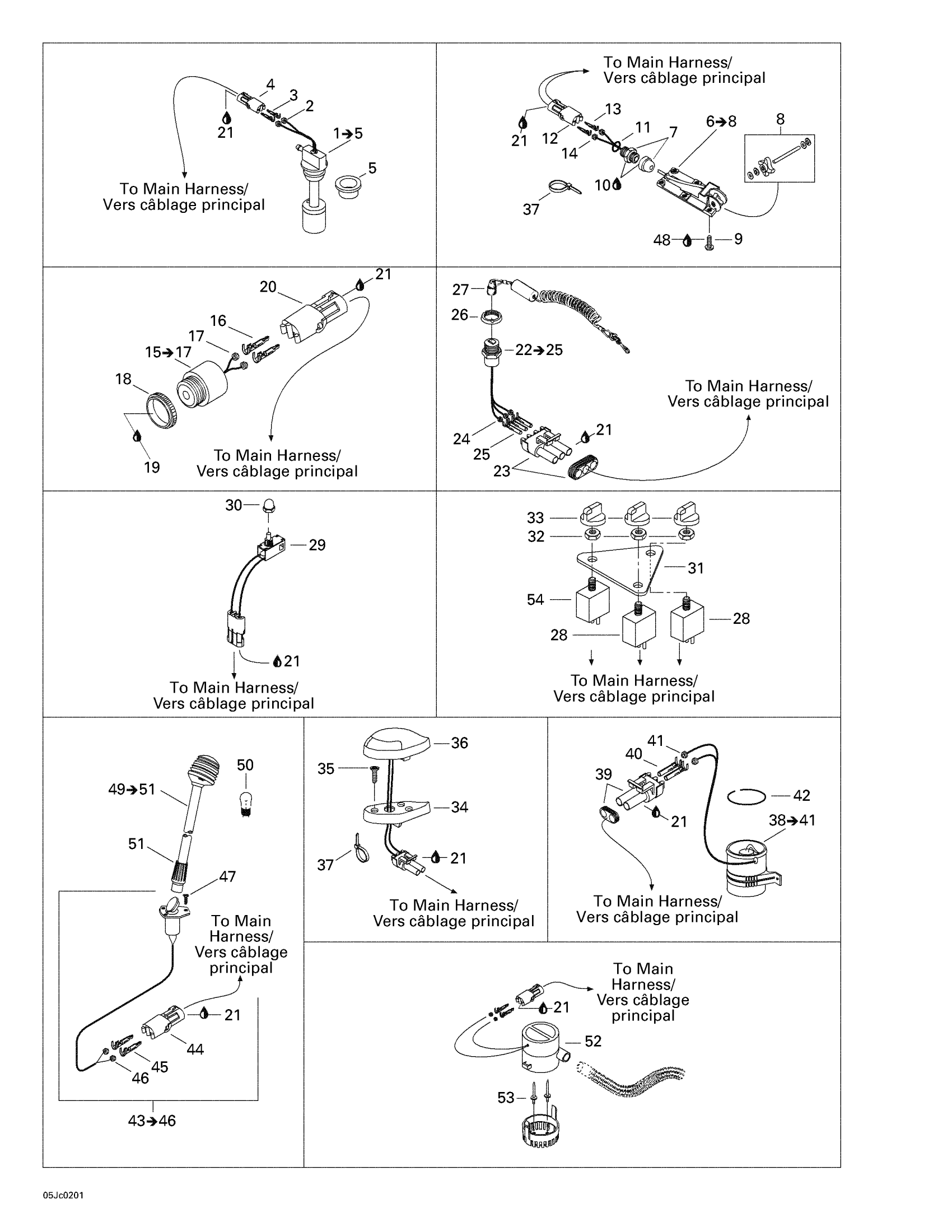

Sea-doo Sportster LE, 5494, 2002 Electrical Accessories 2 Diagram

#

Description
Price

1

Oil Sensor | Includes 44 to 48

278001402

Unavailable

2

Wire Seal

278000218

Unavailable

3

Male Terminal | XT Models

278000222

Unavailable

4

Female Housing, 2 Circuits

278000217

Unavailable

5

Grommet

293720008

Unavailable

6

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

7

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

8

Paddle Wheel Kit

295500108

Unavailable

9

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

Unavailable

11

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

12

Female Housing, 2 Circuits

278000217

Unavailable

13

Male Terminal | XT Models

278000222

Unavailable

14

Wire Seal

278000218

Unavailable

15

Buzzer Ass'y | Includes 15 - 17.

278001564

Unavailable

16

Male Terminal | XT Models

278000222

Unavailable

17

Wire Seal

278000218

Unavailable

18

Buzzer Nut

278000707

Unavailable

19

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

20

Female Housing, 2 Circuits

278000217

Unavailable

21

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

22

Safety Switch This part replaces 278002325.

278002773

Unavailable

23

Male Housing, 3 Circuits

278000273

Unavailable

24

Wire Seal

278000218

Unavailable

25

Female Terminal

278000223

Unavailable

26

Safety Nut (DESS Switch)

278002963

Unavailable

27

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

28

Fan Switch

278000540

Unavailable

29

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

30

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Switch Nut

278000647

Unavailable

33

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

34

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

35

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

36

Front Lamp

204470311

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

Unavailable

38

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

39

Male Connector, 2 Circuits

278000220

Unavailable

40

Female Terminal

278000223

Unavailable

41

Wire Seal

278000218

Unavailable

42

BROACH - Call your local BRP dealership

204000133

Unavailable

43

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

44

Female Housing, 2 Circuits

278000217

Unavailable

45

Male Terminal | XT Models

278000222

Unavailable

46

Wire Seal

278000218

Unavailable

47

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

48

Loctite 243, 10 ml

293800060

Unavailable

49

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

50

Bulb

204470053

Unavailable

51

COLLAR - Call your local BRP dealership

204470350

Unavailable

52

Bilge Pump

204471431

Unavailable

53

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

54

Light Switch

278000541

Unavailable
