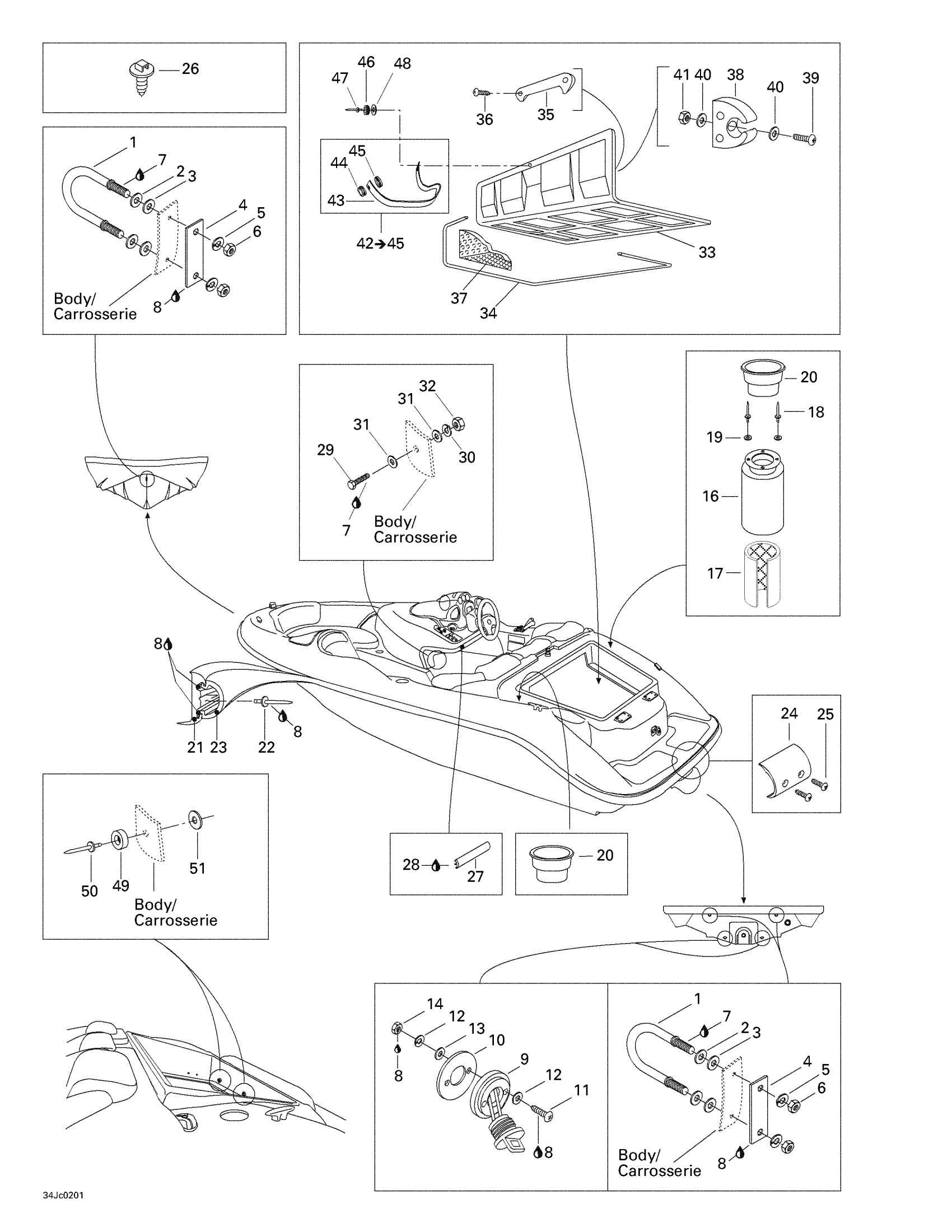

Sea-doo Sportster LE, 5494, 2002 Hull And Accessories Diagram

#

Description
Price

1

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

2

Fitting

293710162

Unavailable

3

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

4

Norma Clamp

293650080

Unavailable

5

Tie-Rap 180 mm

414115200

Unavailable

6

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

LH Spring Clip (Port Side)

204050347

Unavailable

7

Pop Rivet 3/16"

293150008

Unavailable

8

Bailer Screen

292000688

Unavailable

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

Unavailable

10

Tie Wrap 94 mm | 4X4

293750001

Unavailable

11

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

12

Support Foam Lower

204060190

Unavailable

13

Rubber Pad

204060704

Unavailable

14

Black, Dart

293730006

Unavailable

15

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

16

Pop Rivet 3/16"

293150008

Unavailable

17

Strap Clip 90°

204060017

Unavailable

18

Bilge Pump Support

204050304

Unavailable

19

Tie Wrap 368 mm

293750008

Unavailable

20

Tie-Rap 180 mm

414115200

Unavailable

21

Mount Dart

293730040

Unavailable

22

THRU HULL FITTING - Call your local BRP dealership

204060071

$38.43

23

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

24

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

$2.52

25

GASKET - Call your local BRP dealership

292800106

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

Unavailable

27

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

28

Black, Dart

293730006

Unavailable

29

Black Dart

293730014

Unavailable

30

FITTING - Call your local BRP dealership

293710060

Unavailable

31

GASKET - Call your local BRP dealership

292800106

Unavailable

32

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

33

Norma Clamp

293650074

Unavailable

34

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

35

Scupper Spacer

204060625

Unavailable

36

Pop Rivet 1/8”

293150015

Unavailable
