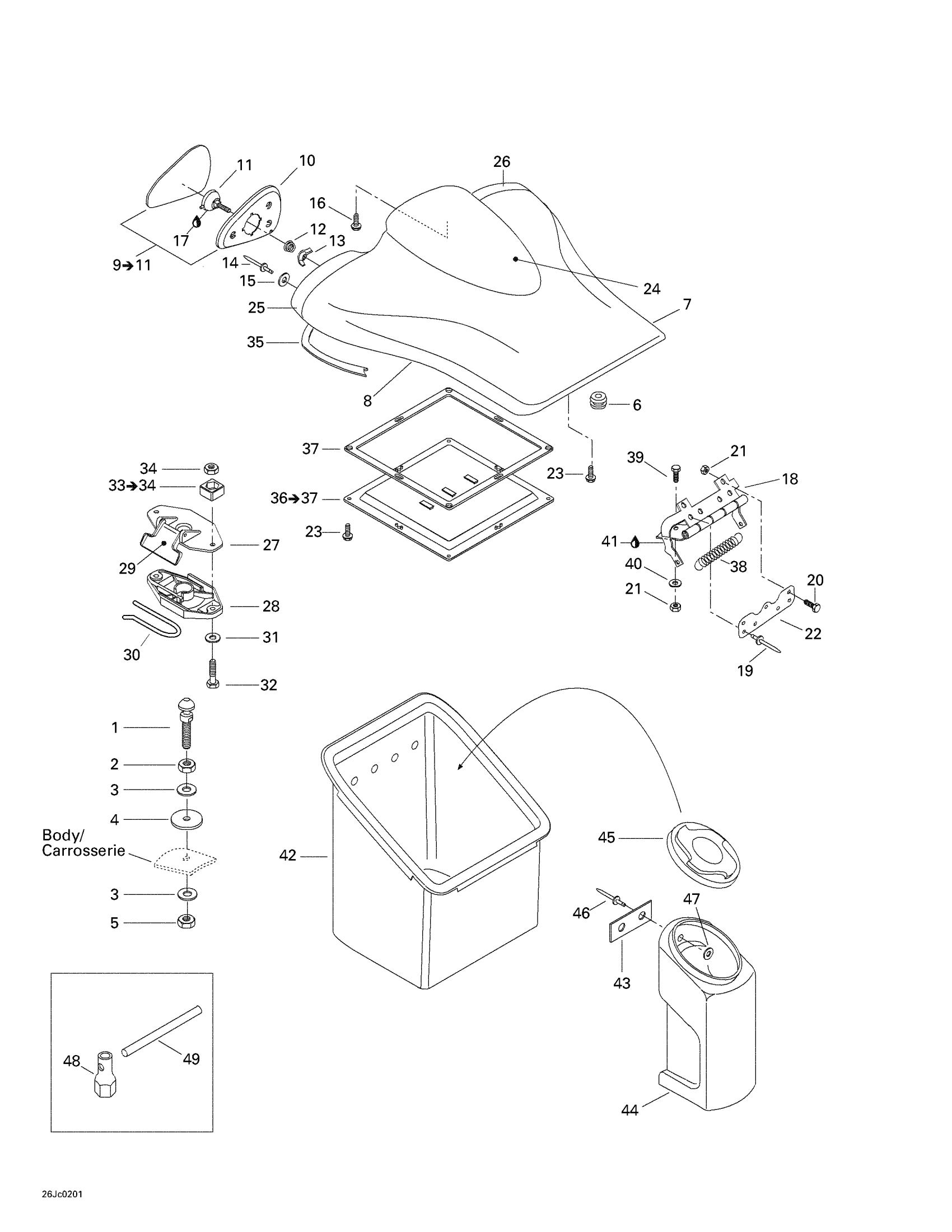

Sea-doo Sportster LE, 5494, 2002 Front Storage Compartment Diagram

#

Description
Price

1

Locking Stud

291000065

Unavailable

2

Hex. Jam Nut M10

232100600

Unavailable

3

Flat Washer 10 mm, Stainless

234002600

Unavailable

4

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

5

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

6

Grommet

204070238

Unavailable

7

UPPER STORAGE COVER - Call your local BRP dealership

269500170

Unavailable

8

LOWER STORAGE COVER - Call your local BRP dealership

269500227

Unavailable

9

RH Mirror | Includes 3 to 4

269500055

Unavailable

LH Mirror | Includes 3 to 4

269500056

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

11

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

12

Mirror Spring

269500082

Unavailable

13

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

14

Pop Rivet 3/16"

293150008

Unavailable

15

Flat Washer, Emhart

213200016

Unavailable

16

Screw K40 X 10

241140060

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

19

Pop Rivet 3/16"

293150039

Unavailable

20

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

21

Hex. Elastic Nut M5 | X

232551600

Unavailable

22

Retainer Plate

269500107

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

Unavailable

24

Deflector

204620237

Unavailable

25

RH Mirror Housing

269500172

Unavailable

26

LH Mirror Housing

269500173

Unavailable

27

Latch Ass'y

269700109

Unavailable

28

Latch Ass'y

269700109

Unavailable

29

Latch Ass'y

269700109

Unavailable

30

Latch Spring

269700017

Unavailable

31

Stainless Flat Washer M6

234061600

Unavailable

32

Hex. Screw M6 X 35

207163560

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

34

Hex. Nut M6

232061600

Unavailable

35

Seal Tray 1000Mm Long

219704368

$12.91

36

ACCESS COVER ASS'Y - Call your local BRP dealership | Includes 29 to 30

269500241

Unavailable

37

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

38

Hinge Spring

204620049

Unavailable

39

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

$1.20

40

Flat Washer M5, Stainless

234051600

Unavailable

41

Synthetic Grease, 400 G

293550010

Unavailable

42

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

43

GASKET - Call your local BRP dealership

293250037

Unavailable

44

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

45

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

46

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

47

Flat Washer M3, Stainless

234032600

Unavailable

48

Socket Wrench

204630050

Unavailable

49

Steel Bar

204630051

Unavailable
