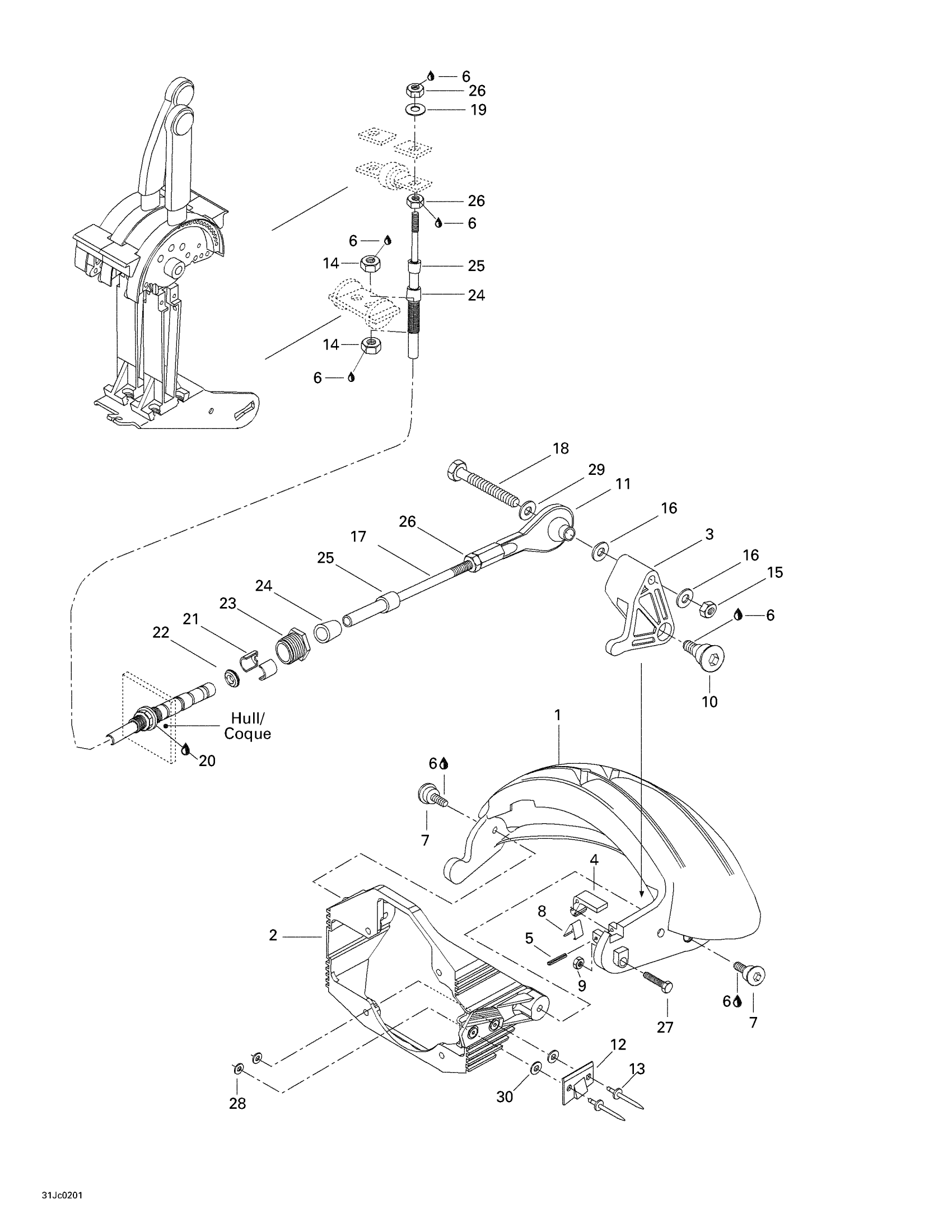

Sea-doo Sportster LE, 5494, 2002 Reverse Diagram

#

Description
Price

1

REVERSE GATE - Call your local BRP dealership

271000947

$129.97

2

REVERSE GATE SUPPORT - Call your local BRP dealership

271000778

$163.82

3

CABLE LEVER - Call your local BRP dealership

271000583

$13.82

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.31

6

Loctite 243, 10 ml

293800060

$20.77

7

Screw

211000007

Unavailable

8

Spring

271000431

$12.13

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

$12.12

11

BALL JOINT - Call your local BRP dealership

204170062

Unavailable

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Pop Rivet 3/16"

293150043

$1.61

14

Hex. Jam Nut

212100006

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Stainless Flat Washer M6

234061600

$0.25

17

RH REVERSE CABLE - Call your local BRP dealership

204170044

Unavailable

18

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

$3.31

19

FLAT WASHER - Call your local BRP dealership

211200019

$1.14

20

Silicone Sealant 51388, 300 ml

296000309

$35.72

21

Half Ring

277000055

$6.19

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

24

Boot, Large

277000473

Unavailable

25

Boot, Small

277000466

Unavailable

26

Hex. Nut

212100005

$0.90

27

Hex. Forming Screw M6 X 20

207162060

$1.03

28

Flat Washer | XT

211200035

$0.46

29

Flat Washer M6, Stainless

234062600

$0.64

30

Flat Washer | XT

211200035

$0.46
