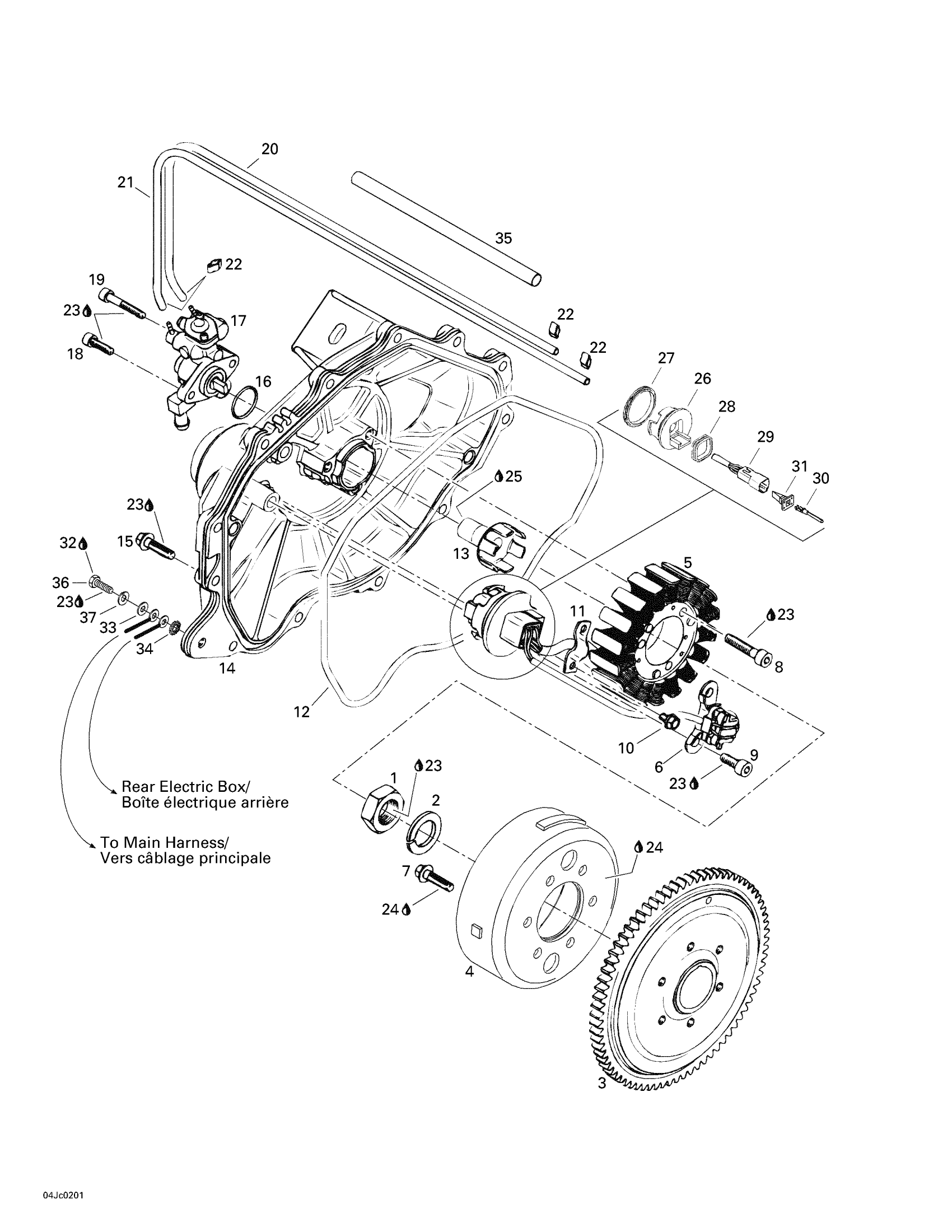

Sea-doo Sportster LE, 5494, 2002 Magneto, Oil Pump Diagram

#

Description
Price

1

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

2

Lock Washer 18 mm

290945757

Unavailable

3

FLYWHEEL HUB - Call your local BRP dealership

290966682

Unavailable

4

Magneto Flywheel

290887945

Unavailable

5

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

6

Sensor Ass'y

420966832

Unavailable

7

Socket Head Screw M6 x 16

290640171

Unavailable

8

Socket Head Screw M6 X 30

205063044

Unavailable

9

Socket Head Screw M6 x 16

420241237

Unavailable

10

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

11

Retainer Plate

290853080

Unavailable

12

O-Ring

290931690

Unavailable

13

Oil Pump Shaft

290837390

Unavailable

14

Ignition Cover

290811066

Unavailable

15

Hex. Flange Screw M6 x 25

290240033

Unavailable

16

O-RING - Call your local BRP dealership

293300018

Unavailable

17

Oil Pump Ass'y

290888690

Unavailable

18

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

19

Socket Head Screw M5 x 30

290940888

Unavailable

20

Oil Hose 1500Mm Long

219704404

Unavailable

21

Oil Hose 1500Mm Long

219704404

Unavailable

22

Clamp

290256408

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Sealant Loctite 648

219703000

Unavailable

25

Dow Corning 111, 150 g

413707000

Unavailable

26

Adaptor

270000138

Unavailable

27

Gasket

293300033

Unavailable

28

Gasket

293200030

Unavailable

29

Male Terminal Housing, 6 Circuits

710001539

Unavailable

30

Male Terminal

278000631

Unavailable

31

Female Lock, 6 Circuits

278000735

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

Flat Washer M6, Stainless

234062600

Unavailable

34

External Serrated Lock Washer 6 mm

234461608

Unavailable

35

Protector Hose

290260437

Unavailable

36

Hex. Screw M6 X 25

207162560

Unavailable

37

Lock Washer Helical M6

234161601

Unavailable

38

Engine Gasket Set (Not Shown)

290889150

Unavailable

39

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable
