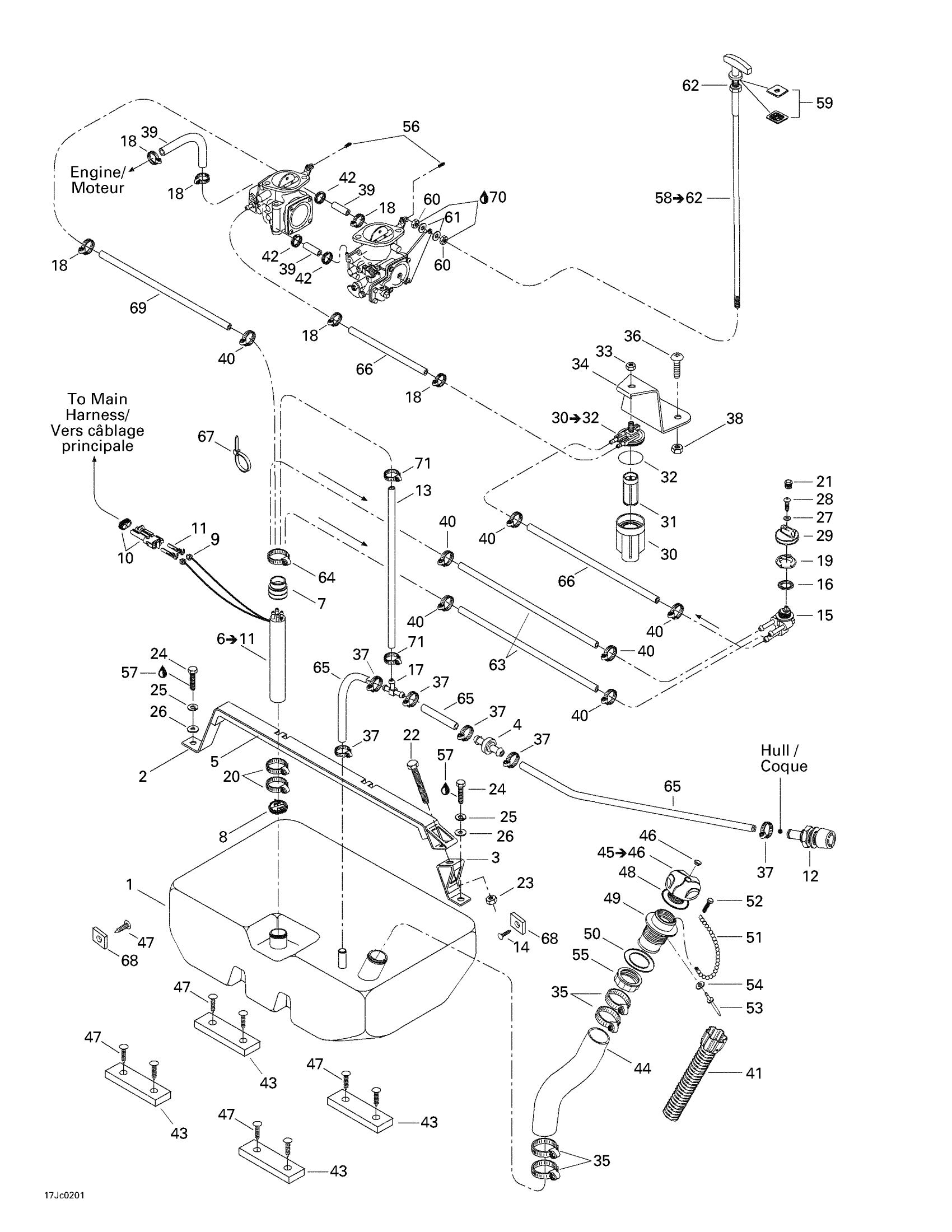

Sea-doo Sportster LE, 5494, 2002 Fuel System Diagram

#

Description
Price

1

Plastic Fuel Tank

204560124

Unavailable

2

Metal Strap

204560128

Unavailable

3

Strap Bracket

275500202

Unavailable

4

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

5

Rubber Pad

204560129

Unavailable

6

BAFFLE - Call your local BRP dealership | Includes 6 - 11.

275500469

Unavailable

7

Tube Adapter

275500111

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

Unavailable

10

Male Connector, 2 Circuits

278000220

Unavailable

11

Female Terminal

278000223

Unavailable

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

14

Black Dart

293730014

Unavailable

15

FUEL VALVE - Call your local BRP dealership

275500554

Unavailable

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

T-Fitting

204560038

Unavailable

18

Tridon Gear Clamp

293650170

Unavailable

19

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

20

Norma Clamp

293650081

Unavailable

21

Black, Cap

275500241

Unavailable

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

$2.55

23

Hex. Elastic Nut M8

232581600

Unavailable

24

Hex. Screw M8 X 30

207183060

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

Unavailable

26

Flat Washer 8 mm, Stainless

234082600

Unavailable

27

Flat Washer 4 mm

234040600

Unavailable

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

30

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

Unavailable

34

Fuel Filter Support

204560007

Unavailable

35

Norma Clamp

293650081

Unavailable

36

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

$1.15

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

$19.97

40

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Oetiker Clamp

293650042

Unavailable

43

Rubber Pad

204060704

Unavailable

44

Filler Neck Hose

204560163

Unavailable

45

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

46

Black, Snap Cap

293000034

Unavailable

47

Black, Dart

293730006

Unavailable

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

Unavailable

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

Unavailable

53

Rivet 1/8”

293150057

Unavailable

54

Flat Washer M3, Stainless

234032600

Unavailable

55

Filler Neck Nut, Fuel

211100012

Unavailable

56

Socket Set Screw M4 x 6

206540660

Unavailable

57

Loctite 271, 10 ml

293800005

Unavailable

58

Choke Cable Ass'y | Includes 58 - 62.

204250098

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

Unavailable

61

Stainless Flat Washer M6

234061600

Unavailable

62

Hex. Nut

211100007

Unavailable

63

Hose 5/16”, Meter

204560177

Unavailable

64

Norma Clamp

293650077

Unavailable

65

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

66

Hose 5/16”, Meter

204560177

Unavailable

67

Tie-Rap 180 mm

414115200

Unavailable

68

Rubber Pad

274000354

Unavailable

69

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

$19.97

70

Loctite 243, 10 ml

293800060

Unavailable

71

NORMA CLAMP - Call your local BRP dealership

293650121
