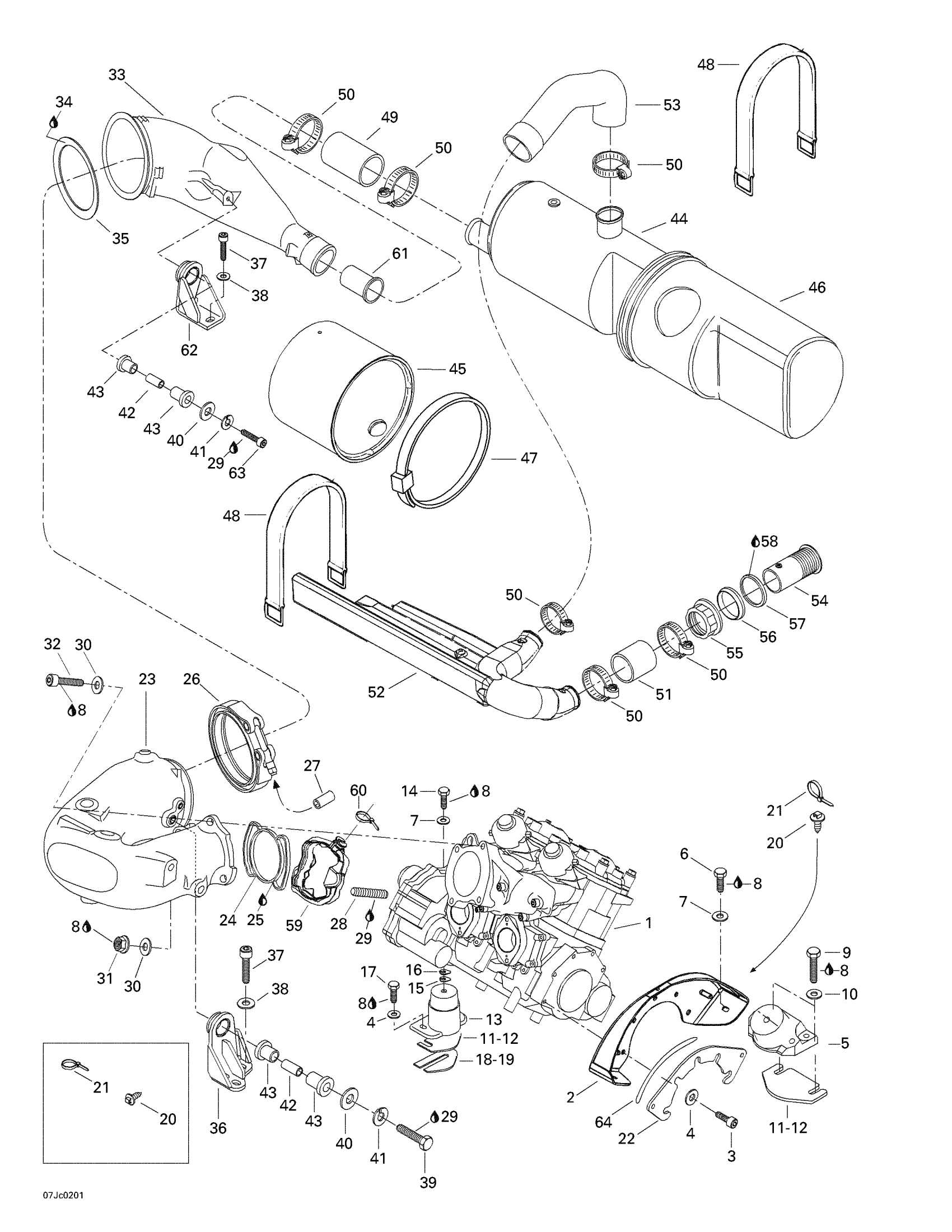

Sea-doo Sportster LE, 5494, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Rotax Engine 947 (Silver)

270000522

Unavailable

2

Engine Support

270000359

Unavailable

3

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.73

4

Stainless, Flat Washer 8 mm

234081600

$0.46

5

Rubber Mount, Black

270000421

Unavailable

6

Hex. Screw M8 X 16

207181660

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Loctite 243, 10 ml

293800060

$20.77

9

Hex. Screw M8 X 40

207184060

$1.85

10

Stainless, Flat Washer 8 mm

234081600

$0.46

11

Shim 0.3 mm

270000122

Unavailable

12

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

13

Rubber Mount, Black

270000422

Unavailable

14

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

16

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

17

Hex. Screw M8 X 40

207184060

$1.85

18

Shim 0.3 mm - Call your local BRP dealership

204250048

$8.43

19

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

$3.68

20

Mount Dart

293730040

$0.86

21

Tie-Rap 180 mm

414115200

$0.09

22

Gasket

293250110

Unavailable

23

Head Pipe Ass'y | Includes 34 - 38.

274000928

Unavailable

24

Exhaust Gasket

290931990

Unavailable

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

26

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

27

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

28

STUD M10 X 5.1 X 55, SCOTCH GRIP - Call your local BRP dealership

250300008

Unavailable

29

Loctite 271, 10 ml

293800005

$20.77

30

Flat Washer

211200051

$1.34

31

Hex. Flange Nut M10

233101600

$4.39

32

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

33

Exhaust Cone

274000658

Unavailable

34

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

35

SEALING RING - Call your local BRP dealership

274000511

Unavailable

36

Pipe Support

274000890

Unavailable

37

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

$2.58

38

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

$5.29

39

SCREW-HEX.CAP-DIN.931A2 S.GRIP - Call your local BRP dealership

207204060

Unavailable

40

Flat Washer 10 mm, Stainless

234002600

$1.85

41

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

42

BUSHING - Call your local BRP dealership

274000861

Unavailable

43

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

44

Muffler (Black)

274000749

Unavailable

45

MUFFLER COVER, FRONT - Call your local BRP dealership

274000796

$83.05

46

Muffler Cover, Rear

274000799

Unavailable

47

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00

48

Retainer Strap

293850097

$9.26

49

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

50

Tridon Clamp

293650064

$7.80

51

Exhaust Hose

274000616

Unavailable

52

Resonator

295500683

Unavailable

53

Exhaust Hose

274000525

Unavailable

54

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

55

Nut 72 mm

274000224

$12.17

56

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

57

GASKET - Call your local BRP dealership

293250041

$7.85

58

Silicone Sealant 51388, 300 ml

296000309

$35.72

59

PICK UP ENVELOPE - Call your local BRP dealership

274000862

Unavailable

60

Tie Wrap 142 mm

293750002

$0.88

61

Exhaust Insert

204340255

Unavailable

62

Pipe Support

274000878

Unavailable

63

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205004060

$2.72

64

Was 271000110 Protection Trim

219704353

$15.03
