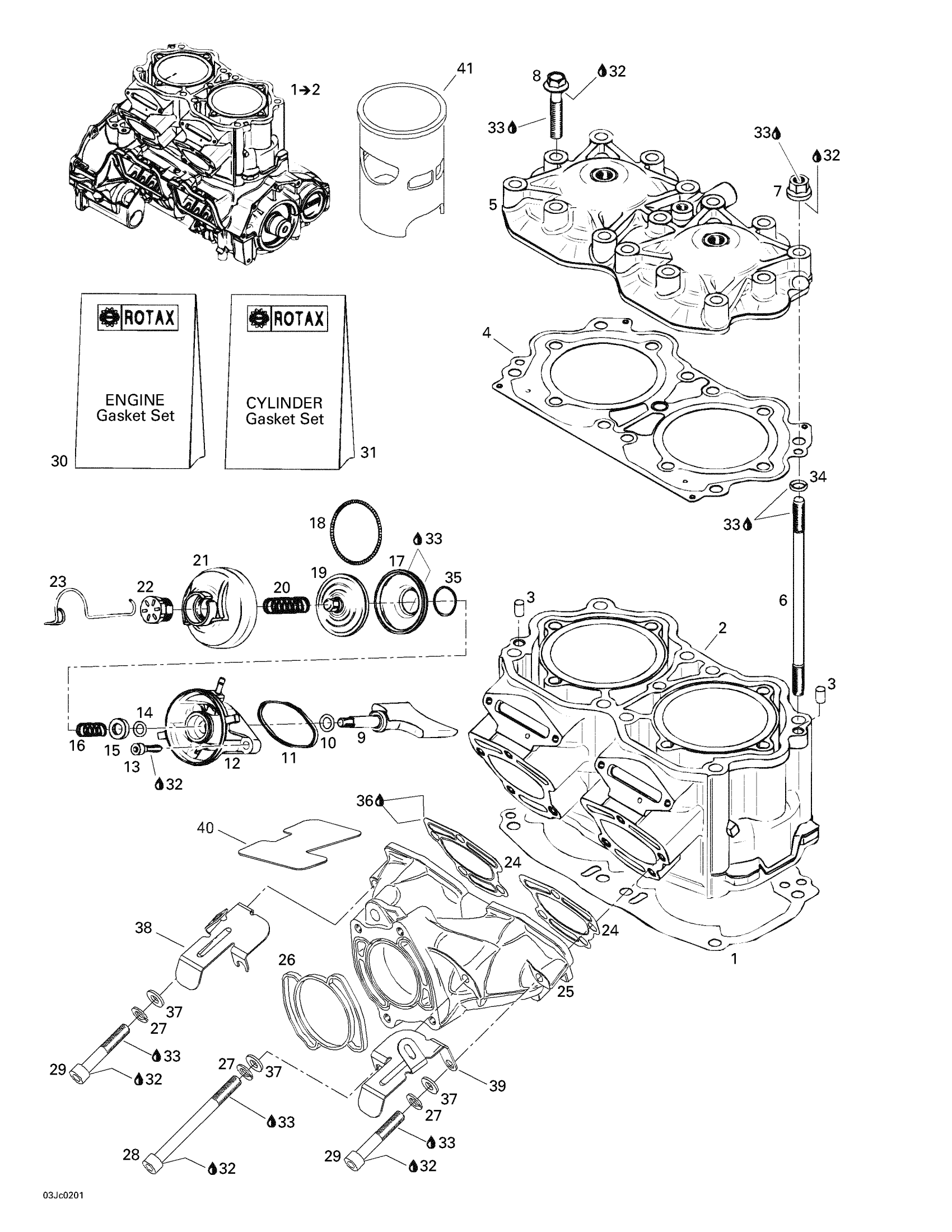

Sea-doo Sportster LE, 5494, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership

421000562

Unavailable

1

GASKET CYLINDER 0.8 MM - Call your local BRP dealership

420931907

Unavailable

Gasket Cylinder 0.6 mm

290931901

Unavailable

Gasket Cylinder 0.5 mm

290931900

Unavailable

2

Cylinder with Sleeve (Silver)

290613561

Unavailable

2

REBUILD-CYLINDER-947 2000 - Call your local BRP dealership

421000561

Unavailable

3

Center Pin 8 X 12

420632010

Unavailable

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (Silver)

290923921

Unavailable

6

STUD M10 X 200 - Call your local BRP dealership

290640232

Unavailable

7

Stud Nut M10

290842863

Unavailable

8

Screw Hex. Flange M10 x 60

290841708

Unavailable

9

Exhaust Valve

290854410

Unavailable

10

O-Ring

420931765

Unavailable

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854435

Unavailable

13

Socket Head Screw M6 X 25

205062560

Unavailable

14

O-Ring

420931765

Unavailable

15

Support Ring

290926220

Unavailable

16

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

17

Exhaust Bellows

420260723

Unavailable

18

Hose Spring This part replaces 420239048.

420939281

Unavailable

19

Exhaust Valve

290854446

Unavailable

20

Compression Spring

290939137

Unavailable

21

Valve Cover This part replaces 420911558.

420911559

Unavailable

22

Adjuster Screw

420241221

Unavailable

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

EXHAUST MANIFOLD GASKET - Call your local BRP dealership

420931653

Unavailable

25

Exhaust Manifold

420979607

Unavailable

26

Exhaust Gasket

290931990

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

30

Engine Gasket Set (Not Shown)

290889150

Unavailable

31

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable

32

Loctite 243, 10 ml

293800060

Unavailable

33

Dow Corning 111, 150 g

413707000

Unavailable

34

O-RING - Call your local BRP dealership

290850460

Unavailable

35

Hose Spring This part replaces 420838253.

420838255

Unavailable

36

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

37

Flat Washer 10 mm, Stainless

234000600

Unavailable

38

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

39

Duct Support, PTO

273000169

Unavailable

40

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

41

SLEEVE-CYL.947 - Call your local BRP dealership This part replaces 420613551.

420613555

Unavailable
