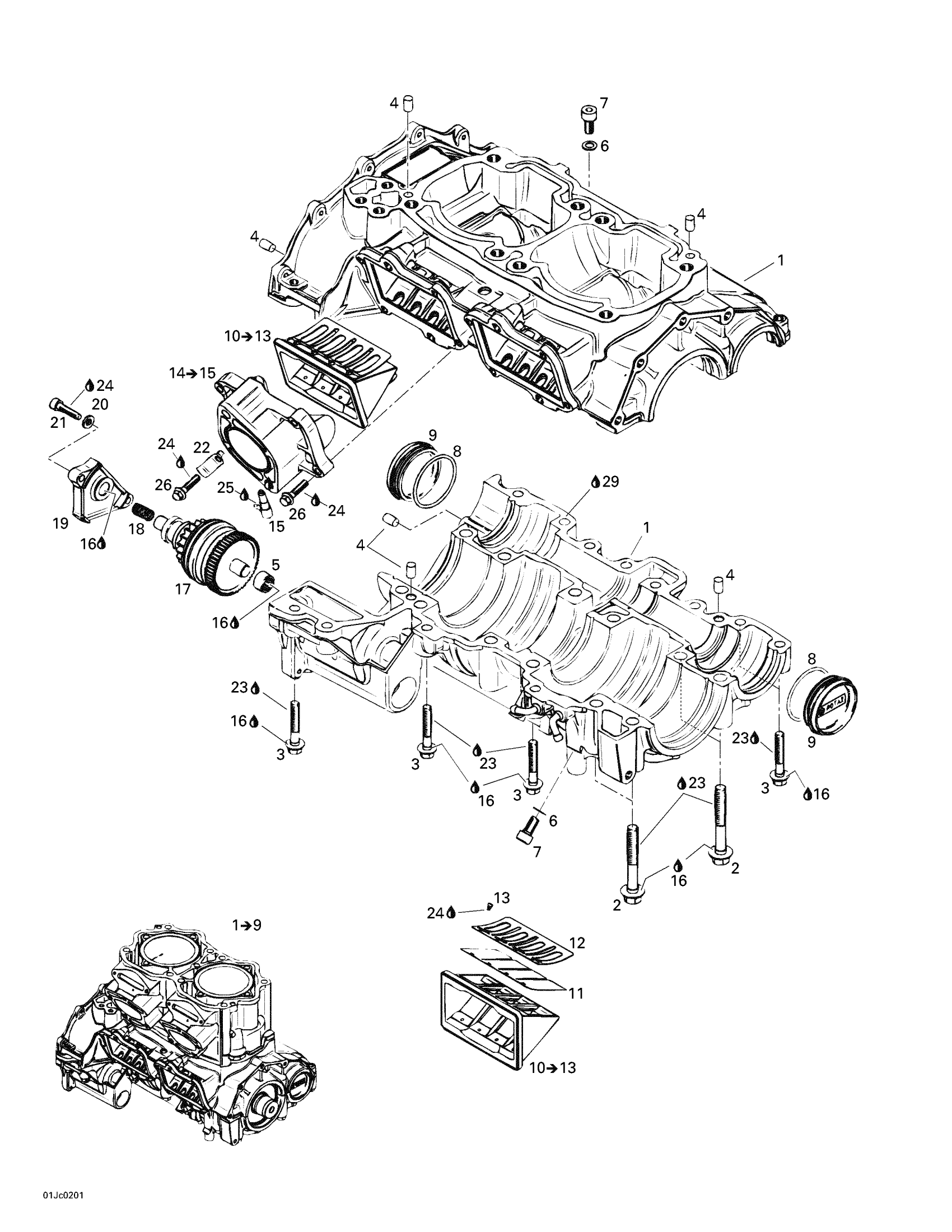

Sea-doo Sportster LE, 5494, 2002 Crankcase And Reed Valve Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

290094703

Unavailable

1

REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership

421000562

Unavailable

1

Crankcase Ass'y <<947>> (Silver) | Includes 1 - 7.

290887754

Unavailable

2

Flange Screw M10 x 73,5

290941333

Unavailable

3

FLANGE SCREW M8 X 45 - Call your local BRP dealership

290940638

Unavailable

4

Center Pin 8 X 12

420632010

Unavailable

5

Needle Bushing

420232482

Unavailable

6

Sealing Ring

420950141

Unavailable

7

Socket Head Screw M8 X 16

205081660

Unavailable

8

O-Ring

290230300

Unavailable

9

Bearing Cover

290811200

Unavailable

10

REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27

420924602

Unavailable

11

Reed Pedal

290924612

Unavailable

12

Reed Pedal Stop

290924617

Unavailable

13

Phillips Screw M3 X 5

420941215

Unavailable

14

Carburator Adapter Ass'y | Includes 14 - 15.

290867833

Unavailable

15

Check Valve

420956511

Unavailable

16

Dow Corning 111, 150 g

413707000

Unavailable

17

Starter Drive Ass'y

420888042

Unavailable

18

Spring

420938204

Unavailable

19

Cover

290811210

Unavailable

20

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

21

Allen Screw M6 x 22 This part replaces 420840401.

420840403

Unavailable

22

WIRE SUPPORT - Call your local BRP dealership

290953330

Unavailable

23

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

24

Loctite 243, 10 ml

293800060

Unavailable

25

Sealant Loctite 648

219703000

Unavailable

26

Hex. Flange Screw M6 x 25

290240033

Unavailable

27

Engine Gasket Set (Not Shown)

290889150

Unavailable

28

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290889155

Unavailable

29

Loctite 5910, 300 ml

293800081

Unavailable
