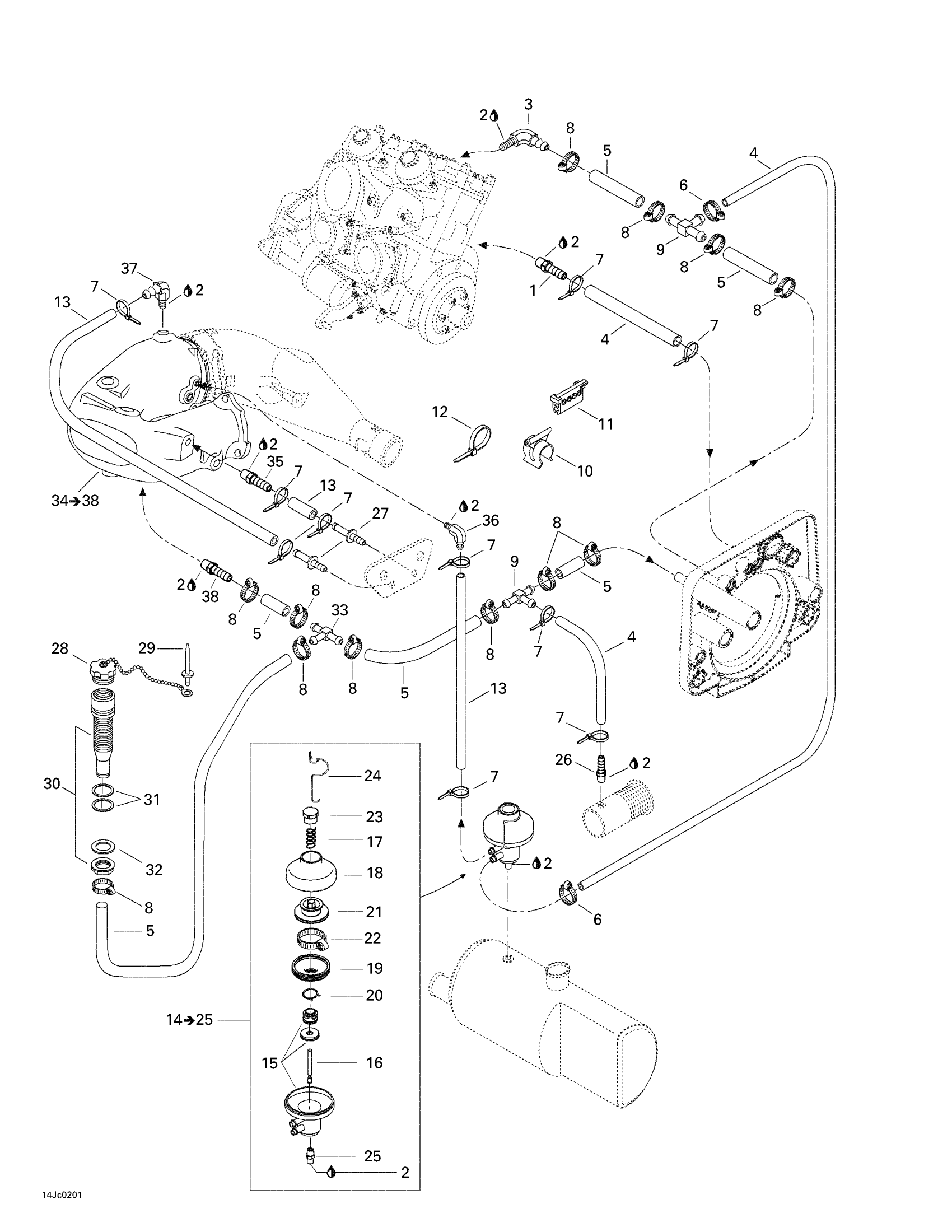

Sea-doo Sportster LE, 5494, 2002 Cooling System Diagram

#

Description
Price

1

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

2

Was 293800013 Loctite 56765

219704454

$65.35

3

Elbow Fitting 90° | Without Catalyst

293700023

$17.66

4

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

5

Was 276000001 Hose 12.5 mm

219704394

$42.87

6

Tridon Gear Clamp

293650170

$1.74

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Tridon Gear Clamp

293650172

$2.68

9

T-Fitting

293710116

$14.27

10

COLLAR SUPPORT - Call your local BRP dealership

278000559

$7.66

11

4 Wire Support

278000346

Unavailable

12

Tie-Rap 180 mm

414115200

$0.09

13

Hose 6 Mm 15000Mm Long

219704360

$104.62

14

PRESSURE REGULATOR ASS'Y - Call your local BRP dealership | Includes 14 - 25.

274000832

$233.82

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

17

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

18

Valve Cover

420911552

$37.66

19

Bellow

420260721

$42.87

20

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rivalair Clamp

293650065

Unavailable

23

Adjuster Screw

420241221

Unavailable

24

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

25

MALE CONNECTOR - Call your local BRP dealership

293700010

$16.12

26

MALE CONNECTOR - Call your local BRP dealership

293710017

Unavailable

27

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

28

PLUG - Call your local BRP dealership

293000055

$13.82

29

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

$1.19

30

FITTING - Call your local BRP dealership

293710081

$12.28

31

GASKET - Call your local BRP dealership

293250028

Unavailable

32

WASHER - Call your local BRP dealership

293050003

$2.74

33

T-FITTING - Call your local BRP dealership

293710053

Unavailable

34

Head Pipe Ass'y | Includes 34 - 38.

274000928

Unavailable

35

Male Connector

293710037

$7.23

36

Elbow Fitting 90°

293710018

Unavailable

37

Elbow Fitting 90°

293710048

Unavailable

38

Male Connector | With Catalyst

293710021

$10.57
