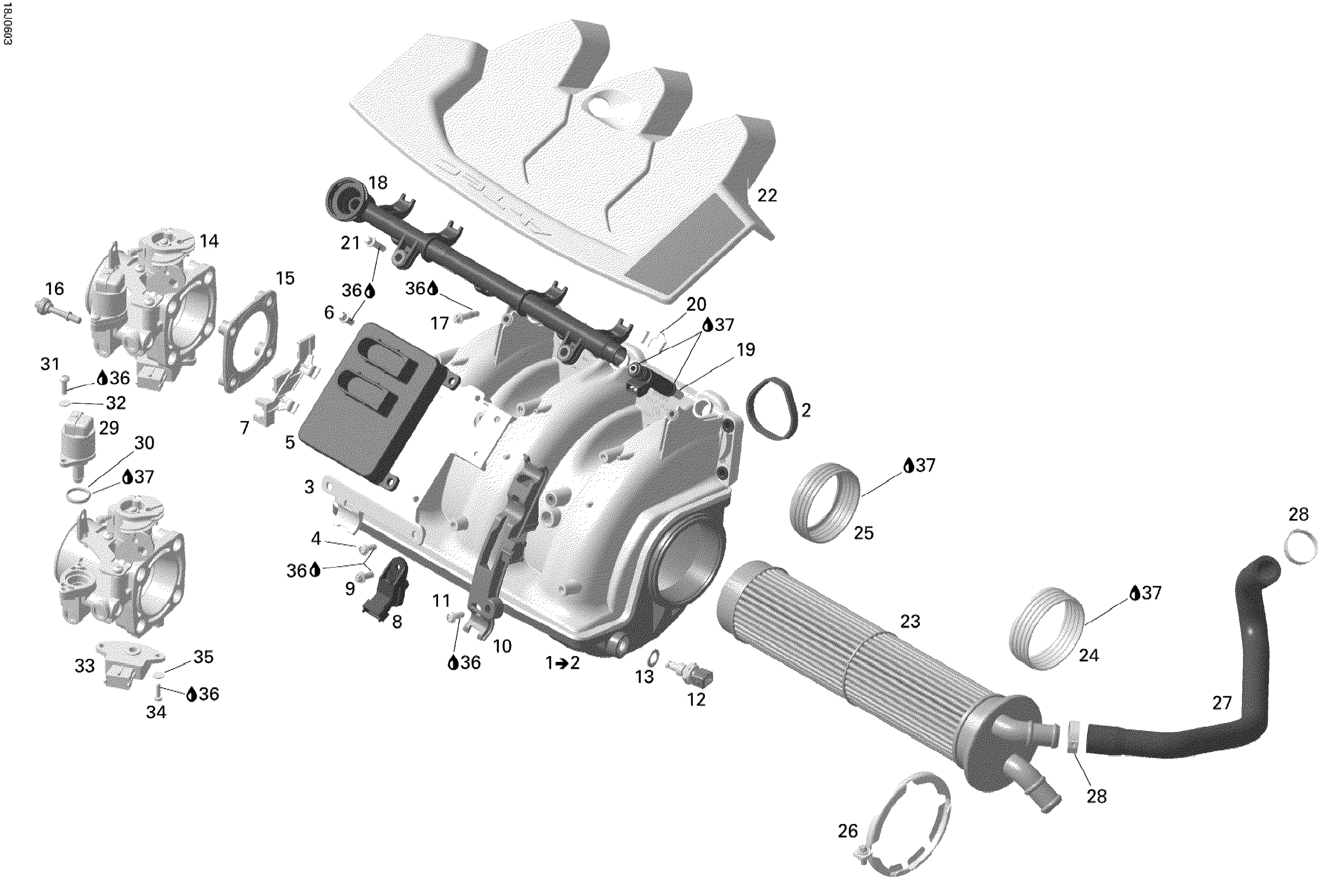

Sea-doo Sportster 4-TEC SCIC, Edition 2, 2006 Air Intake Manifold Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867955

$443.05

2

Gasket | Included in gasket kit

420950740

$3.61

3

BASE PLATE - Call your local BRP dealership

420851521

$52.28

4

Torx Flange Screw M6 X 16

420641048

$2.46

5

ELECTRONIC BOX - Call your local BRP dealership | Edition 1

420664946

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

$5.62

8

Pressure Sensor

420274058

$109.17

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

WIRING SUPPORT - Call your local BRP dealership

420660410

$8.60

11

Torx Flange Screw M6 X 16

420641588

$1.74

12

Temperature Sensor This part replaces 420222423.

420222421

$31.82

13

Aluminum Sealing Ring

420250016

$4.41

14

Throttle Body

420892450

Unavailable

15

Rubber Gasket

420950792

$8.89

16

Hex Screw M6 X 30

420440568

$7.10

17

Torx Flange Screw M6 X 25

420641238

$2.68

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874391

Unavailable

19

Fuel Injector | Includes 19 to 20

420874520

$119.57

20

Injector Clip

420853030

$2.46

21

Torx Flange Screw M6 X 25

420641238

$2.68

22

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

$39.97

23

Intercooler This part replaces 420889653.

420889654

$428.97

24

PROFILE RING - Call your local BRP dealership

420631990

Unavailable

25

Profile Ring

420631995

$15.57

26

Gear Clamp

420853253

$29.22

27

FORMED HOSE - Call your local BRP dealership

420822173

Unavailable

28

Gear Clamp

420851673

$4.71

29

Idle Bypass Valve

420963051

$254.12

30

O-Ring

420631780

$3.61

31

Binding Head Screw M5 X 16

420440911

$11.48

32

Snap Ring

420845710

$3.38

33

Position Sensor

420866120

$77.97

34

Phillips Screw M4 X 16

208641660

$0.74

35

Flat Washer 4 mm, Stainless

234042600

$0.92

36

Loctite 243, 10 ml

293800060

$20.77

37

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
