Description

Price

1

Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.

420893511

$2,899.97

2

Center Pin 8 X 12

420632010

$3.07

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$22.72

4

Aluminum Sealing Ring

420250016

$4.41

5

Plug Screw M12

420841923

$12.97

6

Torx Flange Screw M10 X 82

420641120

$6.11

7

Hex. Flange Screw M8 X 45

420641208

$6.18

8

Plug Screw M20 X 1.5

420641317

$10.58

9

Needle Bushing

420232482

$15.57

10

Plug Screw M30 X 1.5

420641171

$15.57

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$7.87

12

O-Ring

420430405

$11.48

13

Plug Cover

420660110

$6.11

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

$45.35

15

Torx Flange Screw M8 X 35

420641188

$6.11

16

Engine Bracket PTO, Exhaust

420811788

$69.20

17

Torx Flange Screw M8 X 35

420641188

$6.11

18

Torx Flange Screw M8 X 55

420641213

$6.11

19

Engine Bracket PTO, Exhaust

420811784

$69.20

20

Retaining Plate

420851740

$20.74

21

Torx Flange Screw M8 X 55

420641213

$6.11

22

Hose Bracket

420660290

$15.35

23

Chain Tensioner

415129408

$52.62

24

Gasket Ring

420430624

$1.51

25

Chain Tensioner With Screw | Includes no. 8-11

420236259

$58.47

26

SPACER - Call your local BRP dealership

420847970

$5.29

27

Rubber Bracket

420660090

$3.38

28

Flat Washer M6

420827968

$1.56

29

Torx Flange Screw M6 X 35

420440274

$0.83

30

Oil Pressure Switch

420856533

$33.77

31

Noise Sensor

270000484

$65.62

32

Torx Flange Screw M8 X 35

420641188

$6.11

33

Oil Radiator

420888850

Unavailable

34

O-Ring

420250057

$3.48

35

Torx Flange Screw M6 X 16

420641048

$2.46

36

FORMED HOSE - Call your local BRP dealership

420922796

Unavailable

37

FORMED HOSE - Call your local BRP dealership

420922791

$31.51

38

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

39

Gear Clamp

420851673

$4.71

40

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

41

O-Ring

420631310

$3.61

42

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

43

Starter Gear, 9 Teeth

420834522

$59.77

44

Retaining Ring

420845601

$3.73

45

Torx Flange Screw M6 X 25

420641238

$2.68

46

Grooved Pin

420249073

$1.56

47

Bendix Starter This part replaces 420889872.

420890637

$214.47

48

Bendix Starter This part replaces 420889872.

420890637

$214.47

49

Spring Washer

420238300

$6.11

50

Thrust Washer

420827261

$6.18

51

Oil Level Tube

420956944

$95.52

52

O-Ring

420950810

$12.29

53

Oil Level Gauge

420956933

$21.42

54

Engine Gasket Set

420889773

$453.02

55

Not Available As Spare Part - Friction Washer

Unavailable

55

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

55

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

61

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

56

Loctite 243, 10 ml

293800060

$20.77

57

Dow Corning 111, 150 g

413707000

$57.82

58

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

59

Loctite 5910, 300 ml

293800081

$57.99

60

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

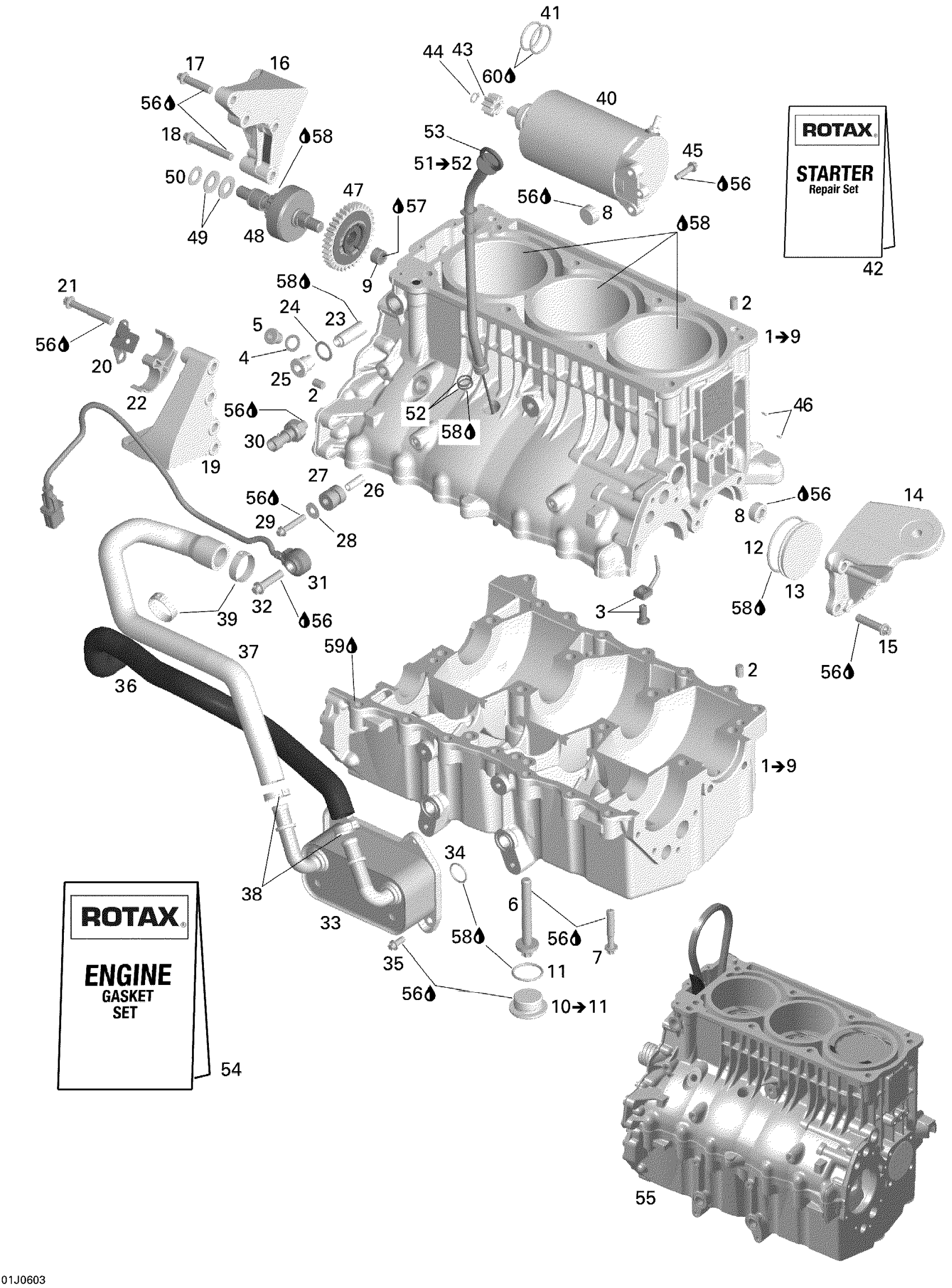

Sea-doo Sportster 4-TEC SCIC, Edition 2, 2006 Engine Block Diagram
