Partiron

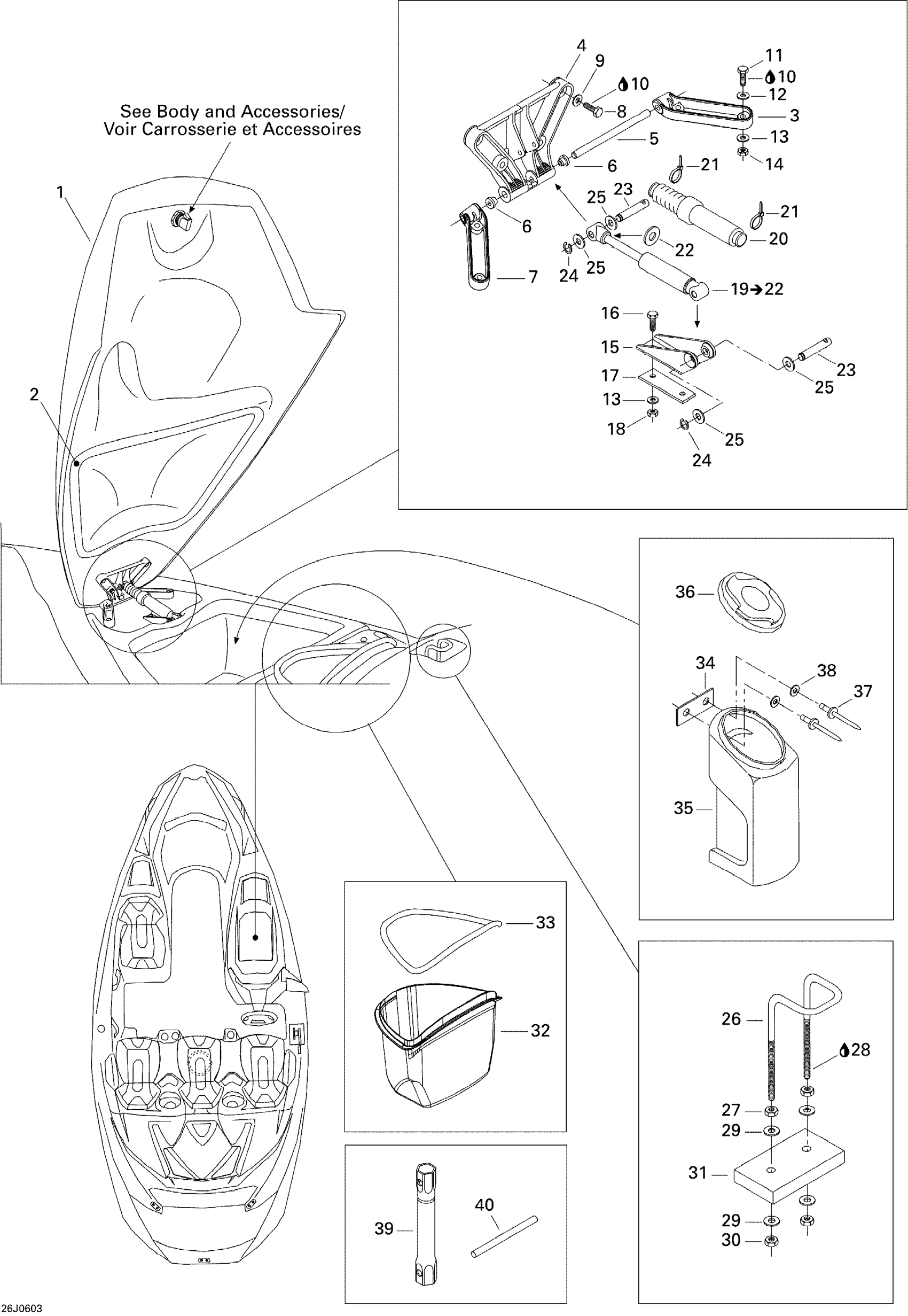

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Storage Compartment, Front Diagram

#

Description
Price

1

Storage Cover Ass'y, Yellow | Yellow Model

204620313

Unavailable

2

Seal Tray 1000Mm Long

219704368

$12.91

3

RH HINGE - Call your local BRP dealership

269700022111

$36.12

4

COVER HINGE - Call your local BRP dealership

269700038

$63.82

5

AXLE - Call your local BRP dealership

269700024

Unavailable

6

CUSHION - Call your local BRP dealership

293350016

Unavailable

7

LH HINGE - Call your local BRP dealership

269700023111

$36.12

8

Hex. Screw M6 X 25

207162560

$1.22

9

Stainless Flat Washer M6

234061600

$0.25

10

Loctite 243, 10 ml

293800060

$20.77

11

Hex. Screw M6 X 35

207063560

$1.85

12

Stainless Flat Washer M6

234061600

$0.25

13

Flat Washer M6, Stainless

234062600

$0.64

14

Hex. Elastic Stop Nut M6

232561600

$0.92

15

SHOCK SUPPORT - Call your local BRP dealership

291000855

$27.66

16

Hex. Screw M6 X 25

207162560

$1.22

17

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

$11.98

18

Hex. Elastic Stop Nut M6

232561600

$0.92

19

Shock-Gas This part replaces 269501864.

269501993

$46.12

20

BELLOW - Call your local BRP dealership

291000919

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

Washer

211200034

Unavailable

23

SHORT PIN - Call your local BRP dealership

211400006

$7.94

24

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

25

Stainless, Flat Washer 8 mm

234081600

$0.46

26

Hook

204620151

Unavailable

27

Hex. Nut M6

232061600

$0.91

28

Loctite 243, 10 ml

293800060

$20.77

29

Flat Washer M6, Stainless

234062600

$0.64

30

Hex. Elastic Stop Nut M6

232561600

$0.92

31

REINFORCEMENT PLATE - Call your local BRP dealership

204620270

Unavailable

32

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

33

NEOPRENE SEAL 1M/3.28FT - Call your local BRP dealership

204130049

Unavailable

34

GASKET - Call your local BRP dealership

293250037

$5.00

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

36

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

37

Pop Rivet 3/16"

293150008

$0.40

38

Flat Washer 5 mm, Stainless

234052600

$0.64

39

Socket Wrench

529035731

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable
