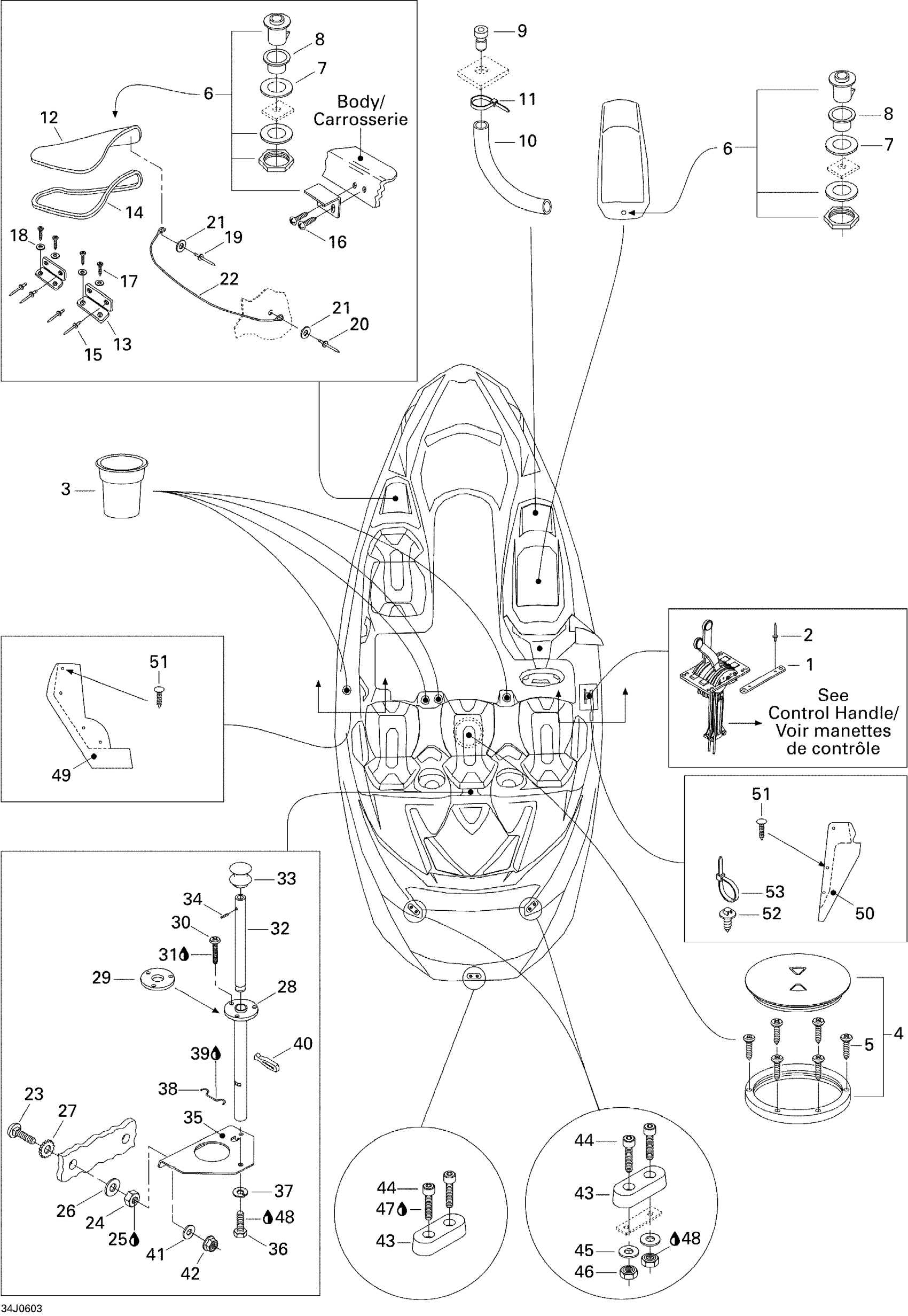

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Body And Accessories Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.11

3

CUP HOLDER - Call your local BRP dealership | STD

291000619

$12.68

4

Not Available As Spare Part - Friction Washer

Unavailable

5

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

6

LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership

204071753

Unavailable

7

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

8

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

9

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

10

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model

204073023

Unavailable

13

Hinge

269700031

$7.80

14

Seal Tray 1000Mm Long

219704368

$12.91

15

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

16

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

17

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

18

Flat Washer 4 mm

234040600

$0.46

19

Pop Rivet 3/16"

293150008

$0.40

20

Pop Rivet 3/16"

293150039

$1.37

21

Flat Washer 5 mm, Stainless

234052600

$0.64

22

RETAINER CABLE - Call your local BRP dealership

204000117

$37.66

23

Elevator Bolt

204000130

Unavailable

24

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

25

Loctite 271, 10 ml

293800005

$20.77

26

Flat Washer M6, Stainless

234062600

$0.64

27

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

28

FIXED TUBE - Call your local BRP dealership

204071495

Unavailable

29

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

30

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

$1.69

31

Loctite 243, 10 ml

293800060

$20.77

32

SKI SHAFT - Call your local BRP dealership

204071624

Unavailable

33

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

34

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

35

FIXATION PLATE - Call your local BRP dealership

204071140

Unavailable

36

Hex. Screw M8 X 18

207181860

$1.48

37

Lock Washer 8 mm, Stainless

234181601

$0.46

38

SPRING - Call your local BRP dealership

291001205

Unavailable

39

Synthetic Grease, 400 G

293550010

Unavailable

40

Windshield Latch

570023800

$3.58

41

Flat Washer M6, Stainless

234062600

$0.64

42

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

43

Rubber Bumper

204071739

Unavailable

44

Socket Head Screw M6 X 30

205063060

$2.29

45

Flat Washer M6, Stainless

234062600

$0.64

46

Hex. Elastic Stop Nut M6

232561600

$0.92

47

Loctite 243, 10 ml

293800060

$20.77

48

Loctite 243, 10 ml

293800060

$20.77

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

Black Dart

293730014

$0.81

52

Mount Dart

293730040

$0.86

53

Tie-Rap 180 mm

414115200

$0.09
