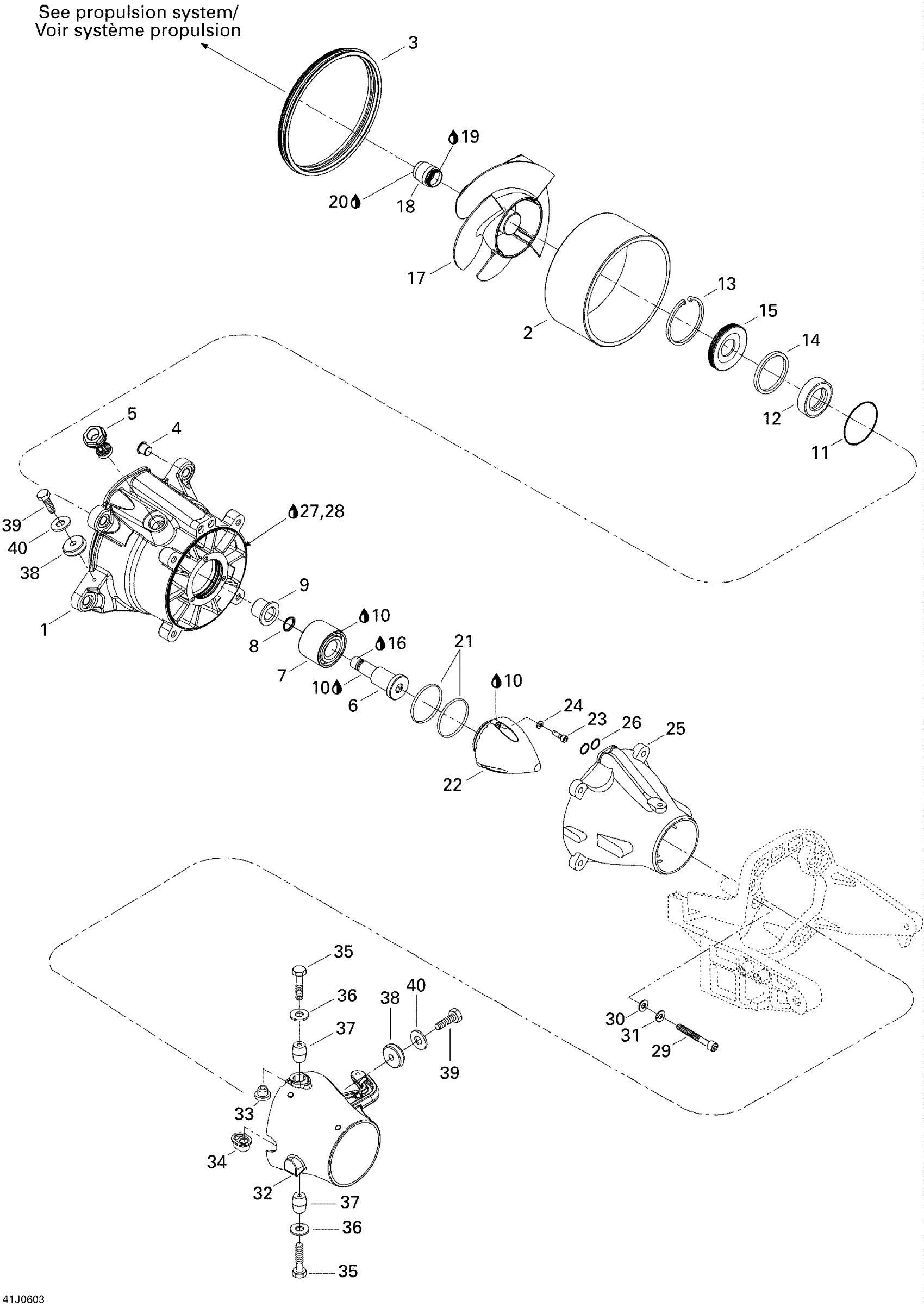

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Pump Diagram

Impeller Housing

267000084

Unavailable

Wear Ring

267000372

$68.87

Neoprene Seal

293200087

$9.19

Bushing

267000093

$7.15

Plug | Includes 370z to 370z1

267000282

$14.27

Impeller Shaft

267000054

$94.22

Angled Bearing This part replaces 267000030.

267000900

$66.27

O-Ring

505070315

$2.34

Shaft Sleeve

267000318

$102.67

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

O-Ring

293300090

$5.97

Seal

271002071

$26.62

Circlip

293370038

$7.12

Spacer

271001393

$6.12

Oil Seal

293200089

$15.57

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Impeller Ass'y This part replaces 267000250.

267000699

$317.17

Guard

271002228

$9.85

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

Synthetic Grease, 400 G

293550010

Unavailable

O-Ring

293300086

$2.90

Impeller Cover

267000262

$16.87

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

Stainless Flat Washer M6

234061600

$0.25

Black, Venturi - Call your local BRP dealership

204160302

Unavailable

O-Ring

293300013

$5.69

Was 293800041 Loctite Primer 7649

219704458

$41.99

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

Socket Screw M8 X 110, Scotch Grip

231181060

$7.85

Flat Washer M8.5 x 18

293050001

$1.29

Lock Washer 8 mm, Stainless

234181601

$0.46

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

Venturi Bushing

293900001

$6.14

Plastic Bushing

293900010

$7.15

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

Flat Washer M8.5 x 18

293050001

$1.29

Sleeve

271001816

$11.58

Anode Zinc

271001813

$13.62

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

Stainless Flat Washer M6

234061600

$0.25
