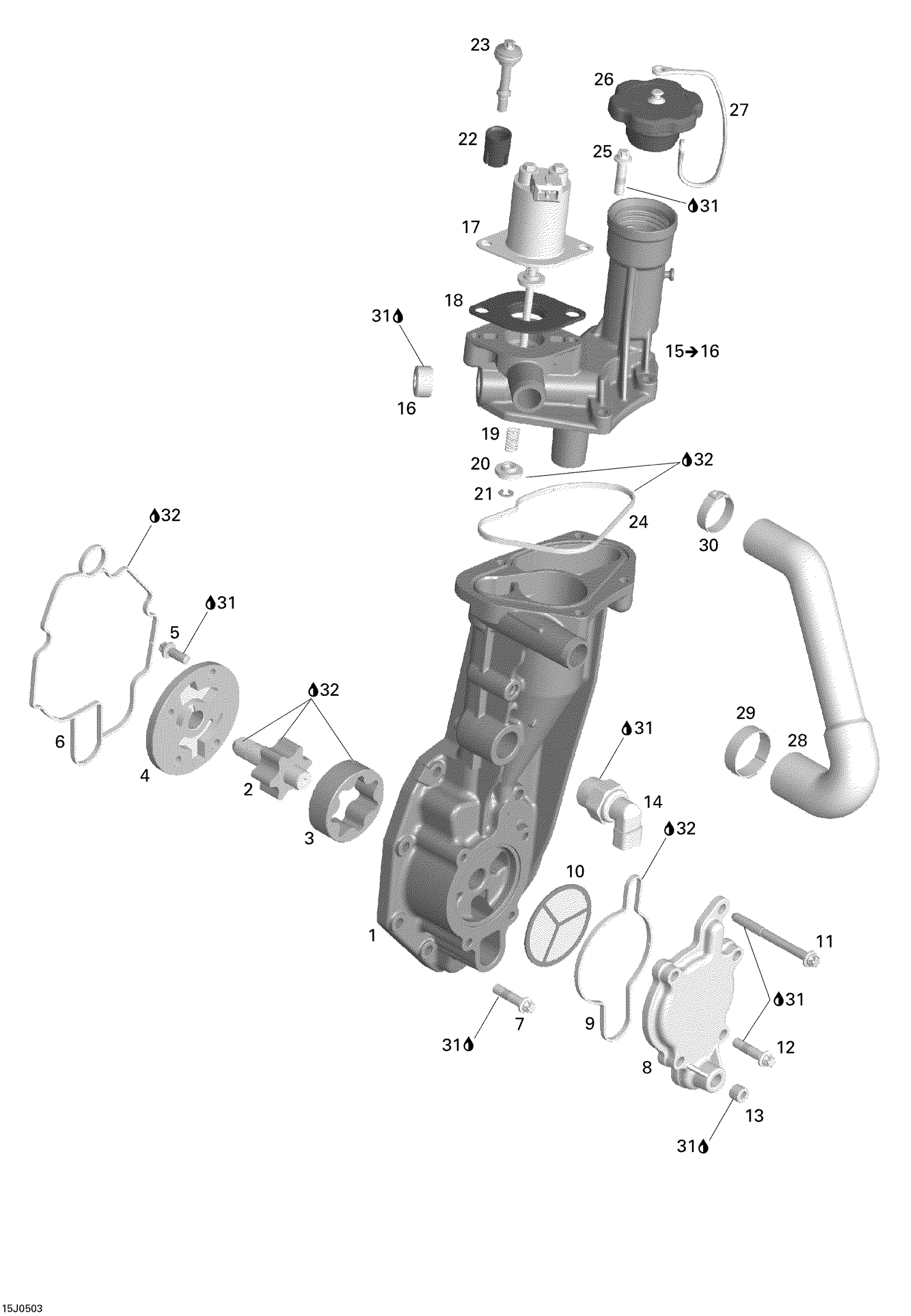

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Oil Separator 1 Diagram

#

Description
Price

1

OIL PUMP HOUSING - Call your local BRP dealership

420956762

Unavailable

2

Oil Pump Shaft

420837543

$49.37

3

Oil Pump Rotor 16 mm

420956675

$29.22

4

Oil Pump Cover

420811851

$27.27

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

GASKET - Call your local BRP dealership

420631480

Unavailable

7

Torx Flange Screw M6 X 25

420641238

$2.68

8

Oil Sieve Cover

420811893

Unavailable

9

GASKET - Call your local BRP dealership

420630232

Unavailable

10

OIL SIEVE - Call your local BRP dealership

420256570

$13.78

11

TORX FLANGED SCREW M6 X 65 - Call your local BRP dealership

420641518

Unavailable

12

Torx Flange Screw M6 X 25

420641238

$2.68

13

Plug Screw M10 X 1

420641323

$11.48

14

Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.

420256886

$40.92

15

Oil Separator Cover | Includes 15 to 16

420811967

Unavailable

16

Plug Screw M20 X 1.5

420641317

$10.58

17

Shut Off, Solenoid

420956666

Unavailable

18

Gasket

420960820

Unavailable

19

COMPRESSION SPRING - Call your local BRP dealership

420939250

Unavailable

20

VALVE DISC - Call your local BRP dealership

420856055

Unavailable

21

RETAINING RING - Call your local BRP dealership

420845620

$1.35

22

DISTANCE SLEEVE - Call your local BRP dealership

420947290

Unavailable

23

Allen Screw M6 x 30,5

420440561

$3.67

24

Gasket

420630222

Unavailable

25

Torx Flange Screw M6 X 25

420641238

$2.68

26

Plug Cover, Yellow

420956923

$19.47

27

Retaining Band

420660620

$6.11

28

Formed Hose

420956975

Unavailable

29

Gear Clamp

420851673

$4.71

30

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

31

Loctite 243, 10 ml

293800060

$20.77

32

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
