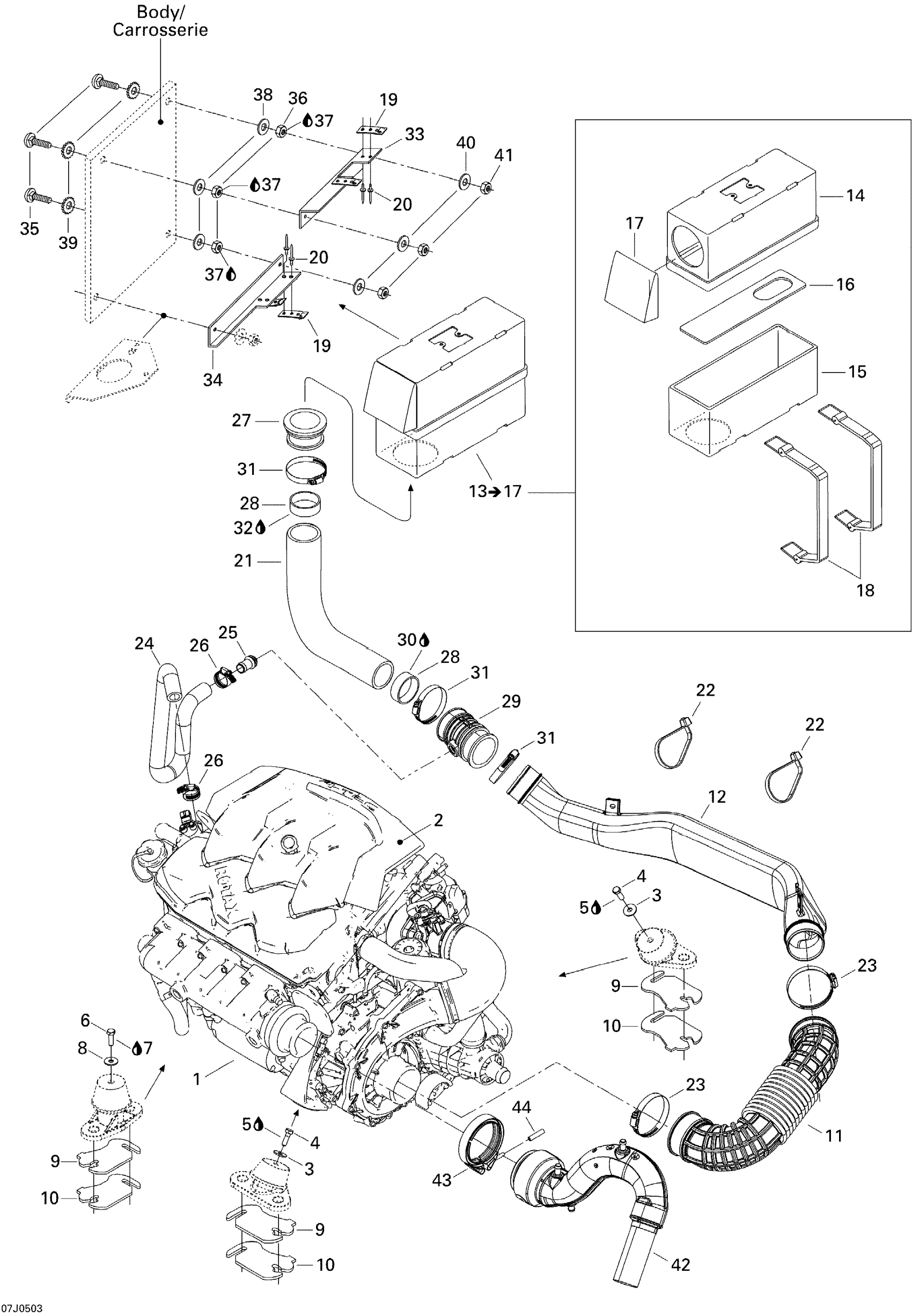

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Engine And Air Intake 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

$39.97

3

Flat Washer 8 mm, Stainless

234082600

$1.98

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

5

Loctite 243, 10 ml

293800060

$20.77

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

7

Loctite 243, 10 ml

293800060

$20.77

8

Flat Washer 8 mm, Stainless

234082600

$1.98

9

Shim 1.3 mm

270000762

$9.04

10

SHIM 0.3 MM - Call your local BRP dealership

270000445

$8.15

11

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

$45.35

12

Intake Hose

273000185

Unavailable

13

Air Silencer Ass'y | Includes 13 to 14

204250323

Unavailable

14

Air Silencer, Upper

204250260

Unavailable

15

Air Silencer, Lower

204250261

Unavailable

16

Air Silencer Divider

204250324

Unavailable

17

Air Silencer Hood

204250270

Unavailable

18

Retainer Strap

293850097

$9.26

19

STRAP CLIP - Call your local BRP dealership

293850024

$13.74

20

Pop Rivet 3/16"

204000081

$1.37

21

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

22

Tie Wrap 368 mm

293750008

$0.85

23

Tridon Clamp

293650179

$8.81

24

Hose

275500604

Unavailable

25

Breather Valve

273000234

$10.63

26

Tridon Gear Clamp

293650051

$3.61

27

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

$11.51

28

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

29

Adaptor Hose, Engine

204250276

Unavailable

30

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

31

Tridon Clamp

293650064

$7.80

32

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

33

Air Silencer Bracket, Upper

204250285

Unavailable

34

Air Silencer Bracket, Lower

204250284

Unavailable

35

Elevator Bolt

204000130

Unavailable

36

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

37

Loctite 271, 10 ml

293800005

$20.77

38

Stainless, Flat Washer 8 mm

234081600

$0.46

39

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

40

Flat Washer M6, Stainless

234062600

$0.64

41

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

$1.14

42

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

43

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

44

Polyurethane Hose 10000Mm Long

219704410

$46.12
