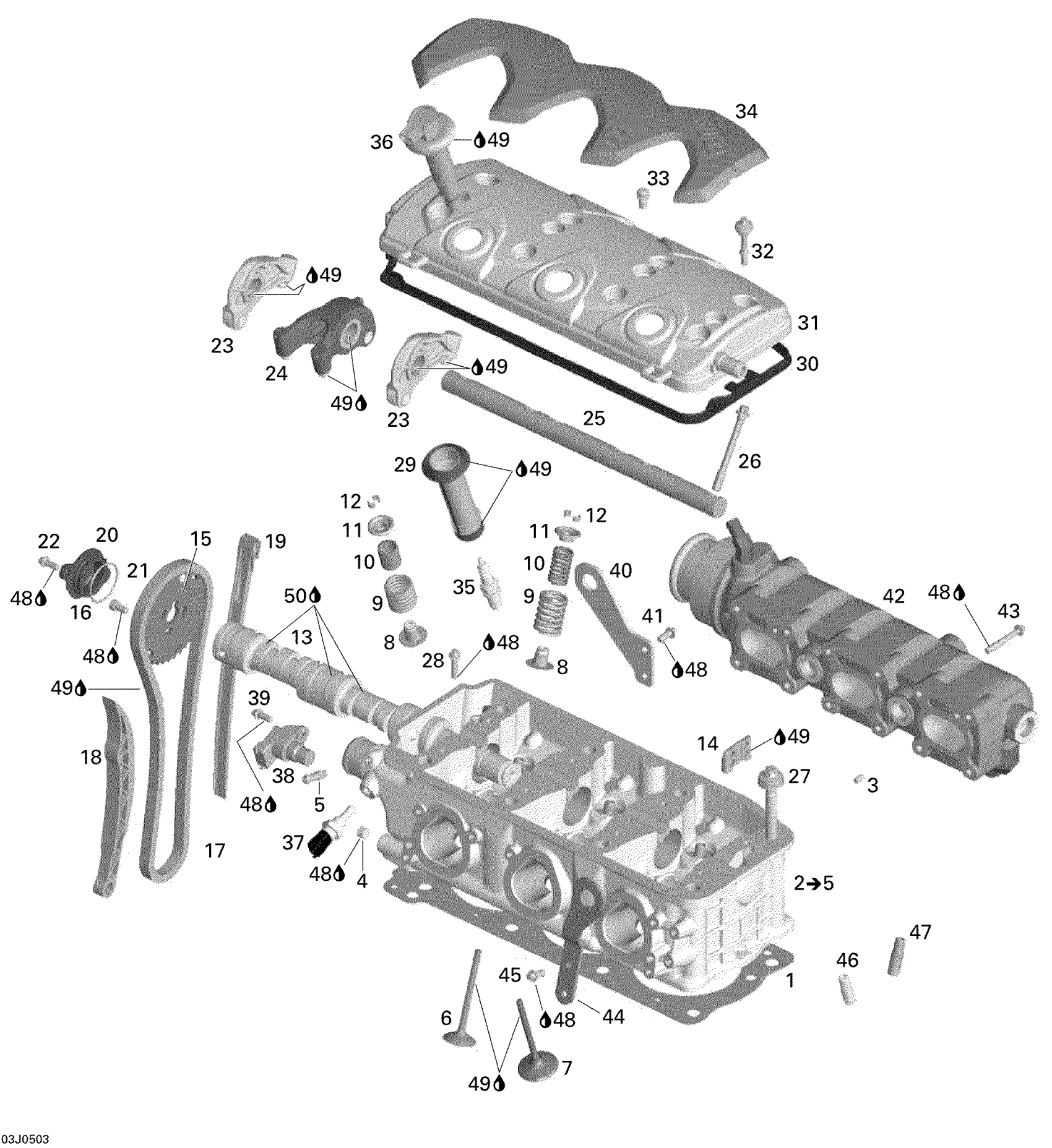

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Cylinder Head 1 Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$100.72

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$685.07

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

Plug Screw M10 X 1

420641323

$11.48

5

Hose Nipple

420924724

$12.29

6

EXHAUST VALVE, 31 MM - Call your local BRP dealership | 6 Valves per package. Always replace complete valve set.

295501047

Unavailable

7

Intake Valve 38MM

420253163

$33.77

8

Valve Steam Seal

420630202

$6.02

9

Valve Spring

420238180

$12.97

10

Valve Spring Inside

420838280

$10.58

11

Valve Spring Retainer

420254283

$7.05

12

Valve Cotter

420253645

$6.11

13

Camshaft

420837629

Unavailable

14

Camshaft Guide

420851694

$26.62

15

Timing Gear, 38 Teeth

420254309

$57.82

16

Allen Screw M6 X 12

420840032

$3.61

17

Camshaft Chain

420898042

$79.92

18

Chain Tension Guide

420236541

$12.97

19

Chain Guide

420236501

$11.48

20

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

21

O-Ring

420950870

$4.41

22

Torx Flange Screw M6 X 16

420641048

$2.46

23

Rocker Arm, Exhaust

420254329

$112.42

24

Rocker Arm, Inner

420254316

$148.17

25

Rocker Arm Shaft

420854592

Unavailable

26

Torx Screw M8 X 72

420641080

$4.39

27

Torx Flange Screw M11 X 147

420641110

$8.63

28

Torx Flange Screw M6 X 25

420641238

$2.68

29

Spark Plug Pipe

420851754

$22.72

30

Valve Cover Gasket | Included in gasket kit

420950820

$27.27

31

VALVE COVER - Call your local BRP dealership

420811581

Unavailable

32

Allen Screw M6 x 30,5

420440561

$3.67

33

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

$5.62

34

Valve Cover

420660167

$56.89

35

Spark Plug, NGK DCP-R8E

715900637

$5.66

36

Ignition Coil Kit This part replaces 420664020.

296000307

$86.42

37

Temperature Sensor

278002895

$31.82

38

Camshaft Position Sensor Ass'y

420664046

$70.82

39

Torx Flange Screw M6 X 16

420641048

$2.46

40

Transport Bracket PTO

420851618

$27.66

41

Torx Flange Screw M6 X 16

420641048

$2.46

42

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

43

Torx Flange Screw M6 X 45

420641198

$3.38

44

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

$16.89

45

Torx Flange Screw M6 X 16

420641048

$2.46

46

Valve Guide | Inner diameter machined

420253929

$37.67

47

Valve Guide | Inner diameter machined

420253929

$37.67

48

Loctite 243, 10 ml

293800060

$20.77

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
