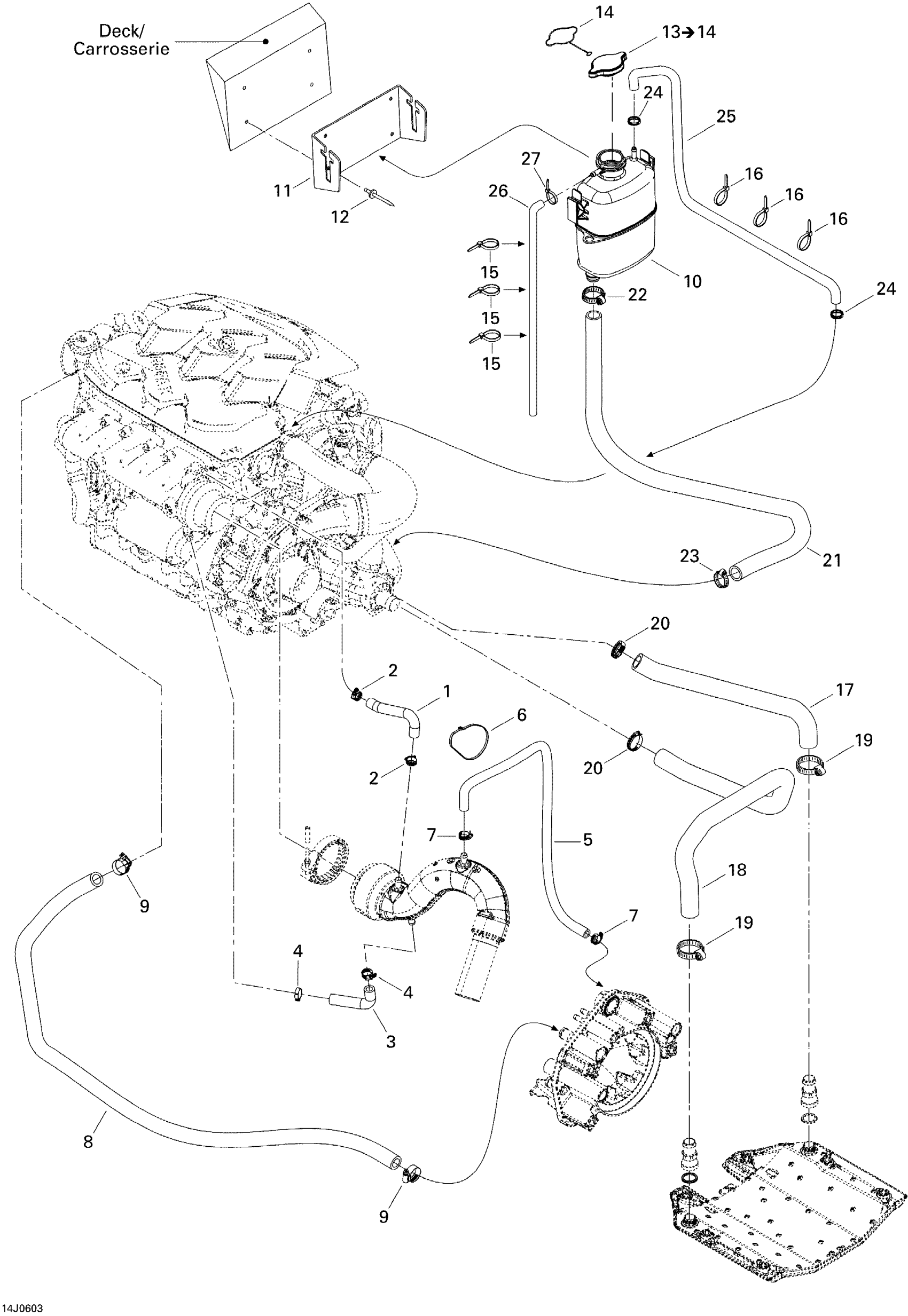

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000155

Unavailable

2

Tridon Gear Clamp

293650172

$3.19

3

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

4

Tridon Gear Clamp

293650172

$3.19

5

Was 276000001 Hose 12.5 mm

219704394

$52.99

6

Tie Wrap 368 mm

293750008

$1.49

7

Tridon Gear Clamp

293650172

$3.19

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.29

10

Coolant Tank

276000086

$114.99

11

Coolant Tank Bracket

204300165

Unavailable

12

Pop Rivet 3/16"

293150039

$1.49

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

15

Tie Wrap 142 mm

293750002

$1.49

16

Tie Wrap 142 mm

293750002

$1.49

17

RH Radiator Hose

276000248

$58.99

18

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

19

Tridon Gear Clamp

293650045

$5.79

20

Tridon Gear Clamp

293650045

$5.79

21

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

22

Tridon Gear Clamp

293650051

$4.29

23

Tridon Gear Clamp

293650019

$5.99

24

Oetiker Gear Clamp

293650025

$3.19

25

Was 275500549 Hose 1/4"

219704357

$199.99

26

Polyurethane Hose 10000Mm Long

219704410

$57.99

27

Tie Wrap 94 mm | 4X4

293750001

$1.49
