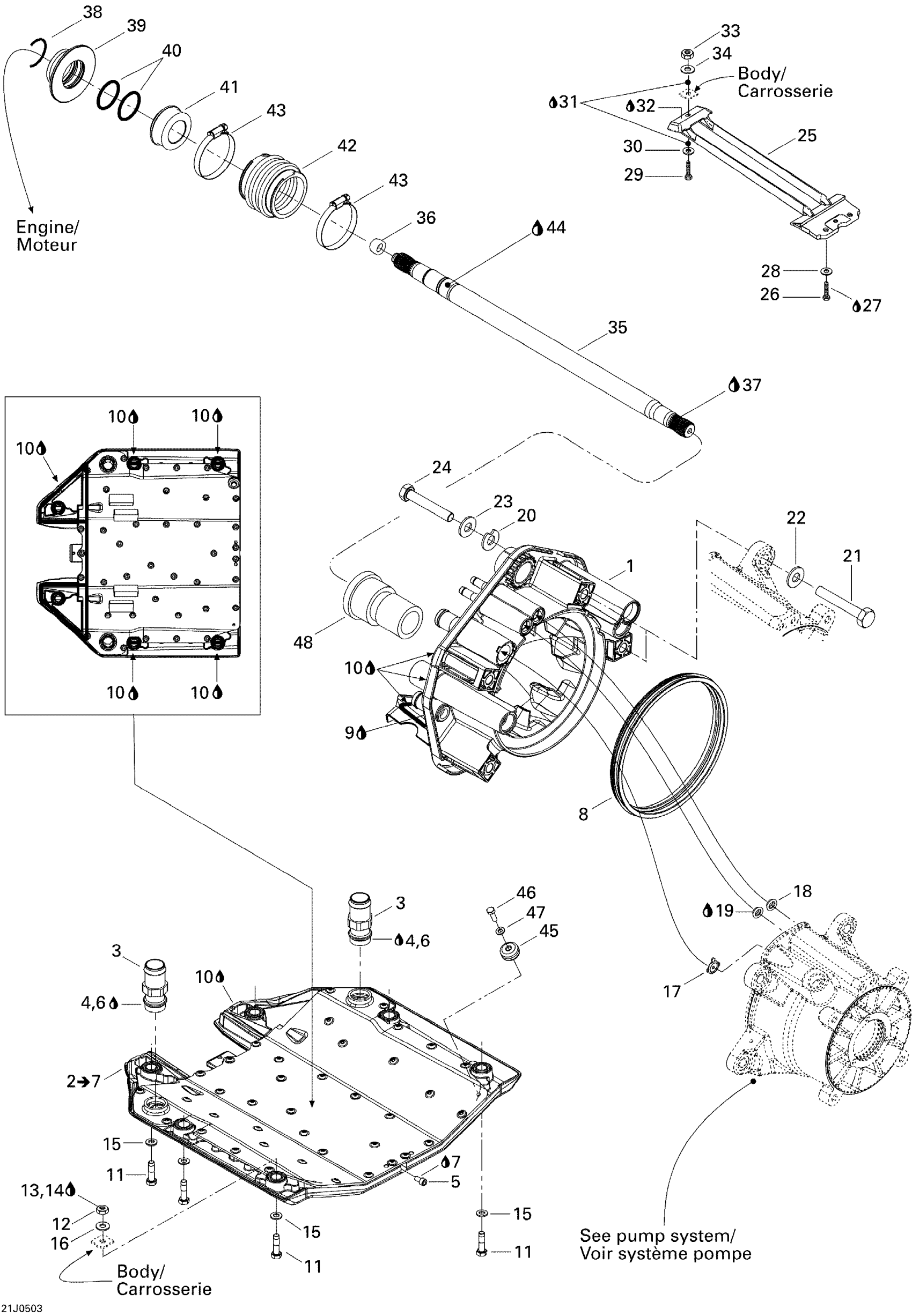

Sea-doo Sportster 4-TEC SCIC, 2005 Propulsion Diagram

#

Description
Price

1

Pump Support

204120277

Unavailable

2

Riding Plate | Includes 11 to 16

271001491

Unavailable

3

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

4

Was 293800041 Loctite Primer 7649

219704458

$41.99

5

Socket Drain Plug M6 X 12

250500005

$11.74

6

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

7

Was 293800013 Loctite 56765

219704454

$65.35

8

Neoprene Seal

293200087

$9.19

9

Glue Tube, Loctite 454, 20 G

413708300

$59.97

10

Instant Gasket

219701421

$50.02

11

Hex. Screw M8 X 40

207084060

$1.85

12

Hex. Elastic Nut M8

232581600

$1.25

13

Silicone Sealant 51388, 300 ml

296000309

$35.72

14

Loctite 243, 10 ml

293800060

$20.77

15

Stainless, Flat Washer 8 mm

234081600

$0.46

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Reducer This part replaces 291001887.

291004649

$12.57

18

Watertight Seal

293250084

$5.81

19

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

20

Shim 0.3 mm

272000053

$8.02

20

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

21

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

22

Flat Washer

211200051

$1.34

23

Flat Washer 10 mm, Stainless

234002600

$1.85

24

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

25

Pump Grate

204120278

Unavailable

26

Hex. Screw M6 X 16

207161660

$1.22

27

Loctite 271, 10 ml

293800005

$20.77

28

Stainless Flat Washer M6

234061600

$0.25

29

Hex. Screw M8 X 40

207184060

$1.85

30

Stainless, Flat Washer 8 mm

234081600

$0.46

31

Silicone Sealant 51388, 300 ml

296000309

$35.72

32

Instant Gasket

219701421

$50.02

33

Hex. Elastic Nut M8

232581600

$1.25

34

Stainless, Flat Washer 8 mm

234081600

$0.46

35

DRIVE SHAFT - Call your local BRP dealership

204120279

Unavailable

36

Drive Shaft Plug

272000173

$7.02

37

Synthetic Grease, 400 G

293550010

Unavailable

38

C-Clip

271001577

$2.68

39

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

40

O-Ring

293300107

$0.83

41

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

42

Bellow This part replaces 271001422.

271001933

$18.82

43

Norma Clamp

293650079

$8.89

44

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

45

Anode Zinc

271001813

$13.62

46

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

47

Stainless Flat Washer M6

234061600

$0.25

48

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
