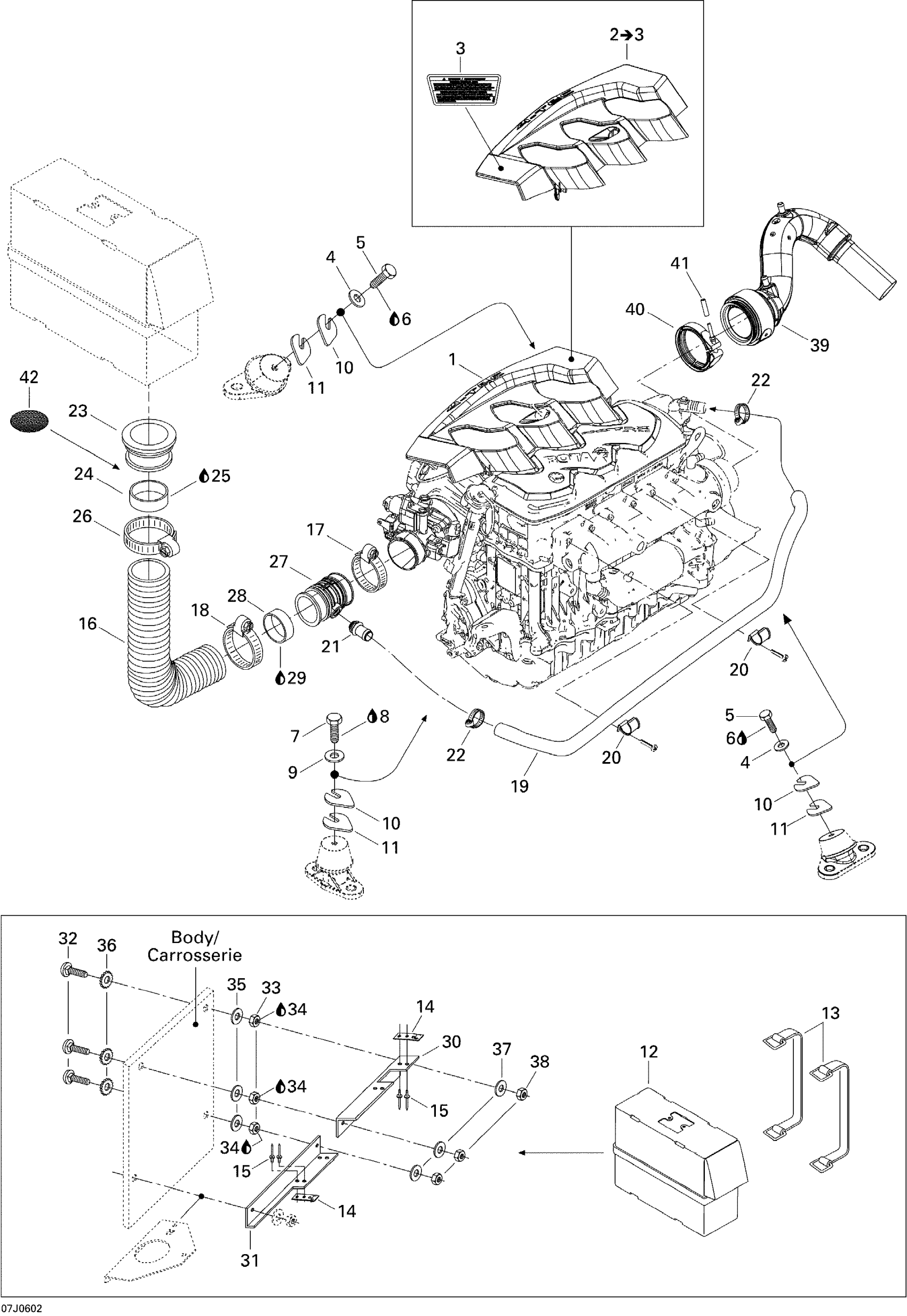

Sea-doo Sportster 4-TEC, Edition 2, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 NA

270000639

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$1.98

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$20.77

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$20.77

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

Air Silencer Ass'y

204250258

Unavailable

13

Retainer Strap

293850097

$9.26

14

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

15

Pop Rivet 3/16"

204000081

$1.31

16

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

17

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

18

Tridon Clamp

293650179

$8.81

19

Formed Hose

270000949

$37.02

20

Retainer

275500664

$10.91

21

Breather Valve

273000234

$10.63

22

Tridon Gear Clamp

293650051

$3.61

23

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

24

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

25

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

26

Tridon Clamp

293650179

$8.81

27

Adaptor Hose, Engine

204250276

Unavailable

28

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

29

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

30

Air Silencer Bracket, Upper

204250285

Unavailable

31

Air Silencer Bracket, Lower

204250284

Unavailable

32

Elevator Bolt

204000130

Unavailable

33

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

34

Loctite 271, 10 ml

293800005

$20.77

35

Stainless, Flat Washer 8 mm

234081600

$0.46

36

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.64

38

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

39

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

40

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

41

Polyurethane Hose 10000Mm Long

219704410

$46.12

42

Intake Screen

204250395

$23.10
