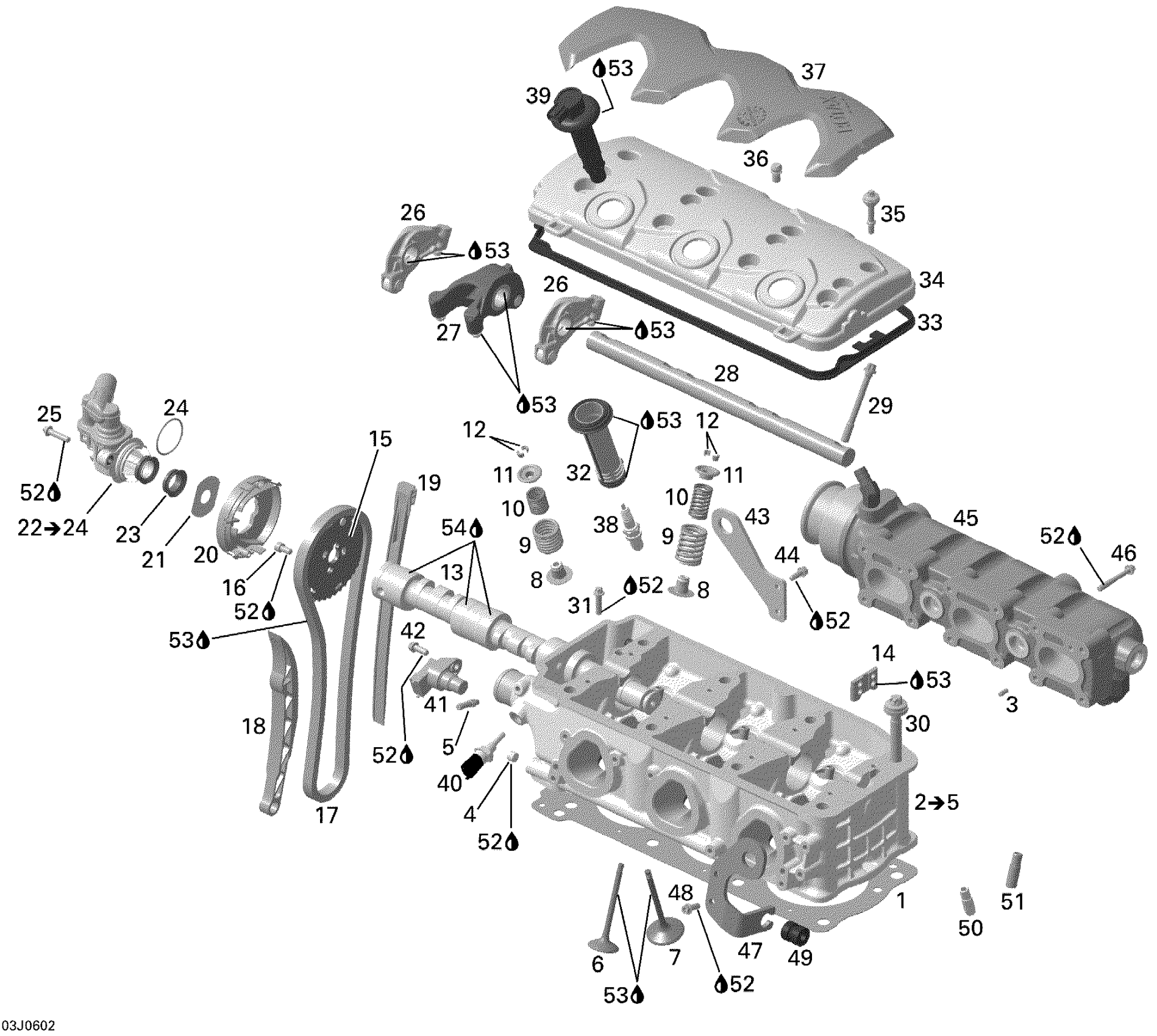

Sea-doo Sportster 4-TEC, Edition 2, 2006 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$124.99

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$799.99

3

Drive Pin 5 X 10

420929650

$1.69

4

Plug Screw M10 X 1

420641323

$14.49

5

Hose Nipple

420924724

$15.49

6

Exhaust Valve, 31 mm

420254682

$104.99

7

Intake Valve 38MM

420253163

$42.99

8

Valve Steam Seal

420630202

$8.09

9

Valve Spring

420238180

$15.99

10

Valve Spring Inside

420838280

$12.49

11

Valve Spring Retainer

420254283

$8.79

12

Valve Cotter

420253645

$7.59

13

Camshaft This part replaces 420837851.

420637780

Unavailable

14

Camshaft Guide

420851694

$32.99

15

Timing Gear, 38 Teeth

420254309

$71.99

16

Allen Screw M6 X 12

420840032

$4.49

17

Camshaft Chain

420898042

$98.99

18

Chain Tension Guide

420236541

$15.99

19

Chain Guide

420236501

$14.49

20

Cover

420660037

$24.49

21

Thrust Washer

420627494

$7.59

22

Vent Valve | Includes 22 to 24

420856500

$98.49

23

V-Ring 20S FPM Blow By Valve

420630125

$11.99

24

O-Ring

420950870

$5.49

25

Torx Flange Screw M6 X 25

420641238

$3.39

26

Rocker Arm, Exhaust

420254329

$139.99

27

Rocker Arm, Inner

420254316

$184.99

28

Rocker Arm, Shaft

420854594

$201.49

29

Torx Screw M8 X 72

420641080

$5.19

30

Torx Flange Screw M11 X 147

420641110

$11.99

31

Torx Flange Screw M6 X 25

420641238

$3.39

32

Spark Plug Pipe

420851754

$28.99

33

Valve Cover Gasket | Included in gasket kit

420950820

$33.99

34

VALVE COVER - Call your local BRP dealership

420811587

Unavailable

35

Hex Screw M6 X 30

420440568

$8.79

36

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

37

Valve Cover

420660167

$59.99

38

Spark Plug, NGK DCP-R8E

715900637

$6.99

39

Ignition Coil Kit This part replaces 420664020.

296000307

$109.99

40

Temperature Sensor

278002895

$41.99

41

Camshaft Position Sensor Ass'y

420664046

$91.99

42

Torx Flange Screw M6 X 16

420641048

$2.99

43

Transport Bracket PTO

420851618

$27.49

44

Torx Flange Screw M6 X 16

420641048

$2.99

45

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

46

Torx Flange Screw M6 X 45

420641198

$4.19

47

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

48

Torx Flange Screw M6 X 16

420641048

$2.99

49

Rubber Bracket

420660090

$4.19

50

Valve Guide | Inner diameter machined

420253929

$47.99

51

Valve Guide | Inner diameter machined

420253929

$47.99

52

Loctite 243, 10 ml

293800060

$21.49

53

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

54

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
