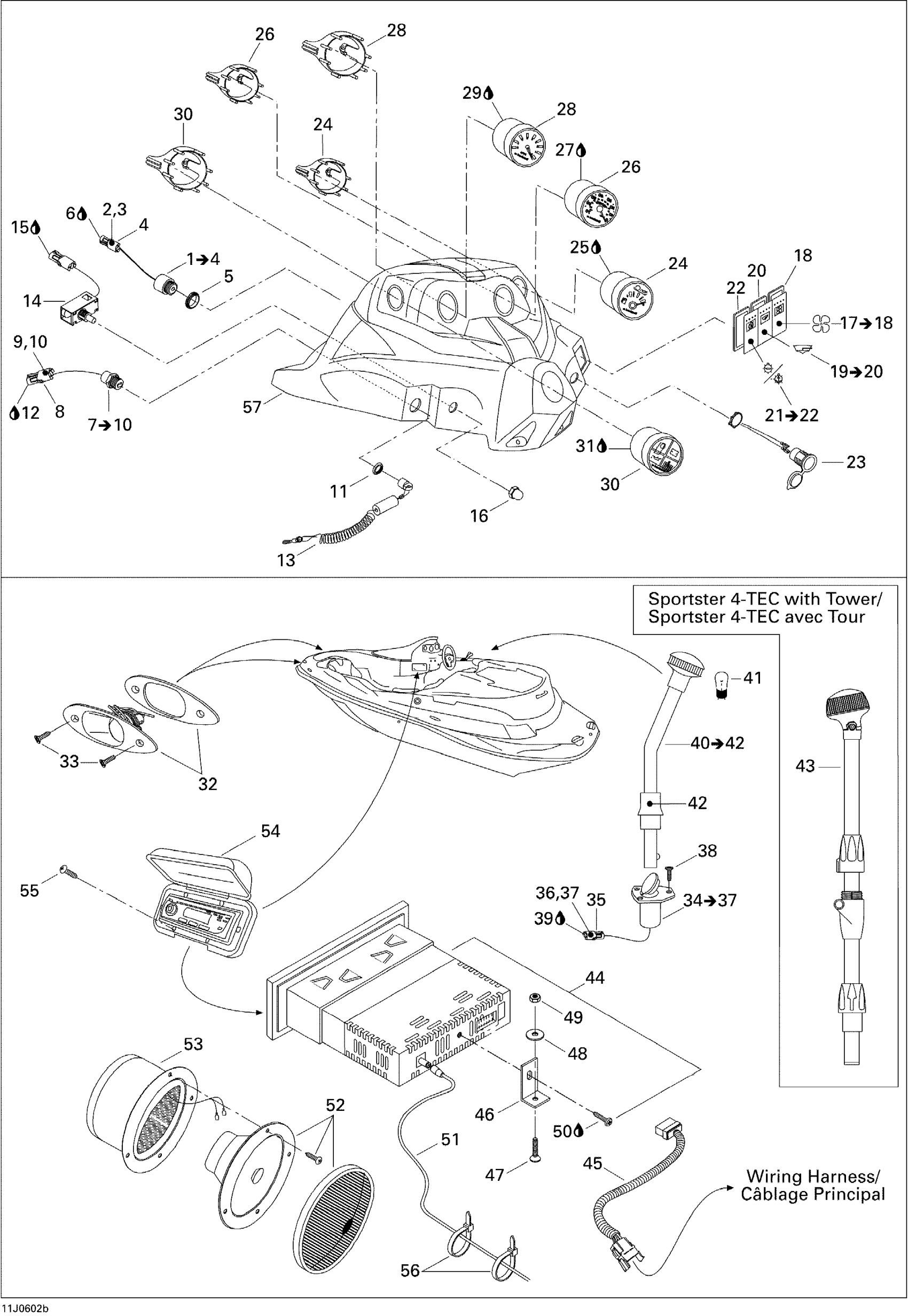

Sea-doo Sportster 4-TEC, Edition 1, 2006 Electrical Accessories 2 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$82.81

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

Female Housing, 2 Circuits

278000217

$7.59

5

Buzzer Nut

278000707

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

Safety Switch This part replaces 278002325.

278002773

$89.67

8

Male Housing, 3 Circuits

278000273

$7.59

9

Wire Seal

278000218

$3.48

10

Female Terminal

278000223

$2.55

11

Safety Nut (DESS Switch)

278002963

$2.72

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

Safety Lanyard

204471206

$68.87

14

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

17

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

18

Gasket

204470132

Unavailable

19

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

20

Gasket

204470132

Unavailable

21

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

22

Gasket

204470132

Unavailable

23

DC Outlet

710001248

$31.17

24

FUEL GAUGE - Call your local BRP dealership

204470956

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

26

Speed Gauge

204470957

$423.85

27

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

28

TACHOMETER GAUGE - Call your local BRP dealership

204470958

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

30

ENGINE WARNING GAUGE - Call your local BRP dealership

204470959

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

32

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

33

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

34

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

35

Female Housing, 2 Circuits

278000217

$7.59

36

Male Terminal | XT Models

278000222

$2.55

37

Wire Seal

278000218

$3.48

38

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

39

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

40

Rear Light Pole | Models Without Tower, Includes 39 to 41

204470792

Unavailable

41

Bulb

204470053

Unavailable

42

COLLAR - Call your local BRP dealership

204470350

Unavailable

43

Rear Light Pole | Models With Tower

204470842

Unavailable

44

Stereo Compact Disk Player/radio

204471056

Unavailable

45

Stereo Adaptor Harness

204470930

Unavailable

46

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

47

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

48

Flat Washer M6, Stainless

234062600

$0.64

49

Hex. Elastic Stop Nut M6

232561600

$0.92

50

Loctite 243, 10 ml

293800060

$20.77

51

Antenna

204470931

Unavailable

52

Black, Speaker

204471060

Unavailable

53

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

54

RADIO CD PLAYER COVER - Call your local BRP dealership

204470894

Unavailable

55

Pan Head Tapping Screw M3.5x25

209632560

Unavailable

56

Tie Wrap 94 mm | 4X4

293750001

$0.83

57

Top Dash

204471052

Unavailable
