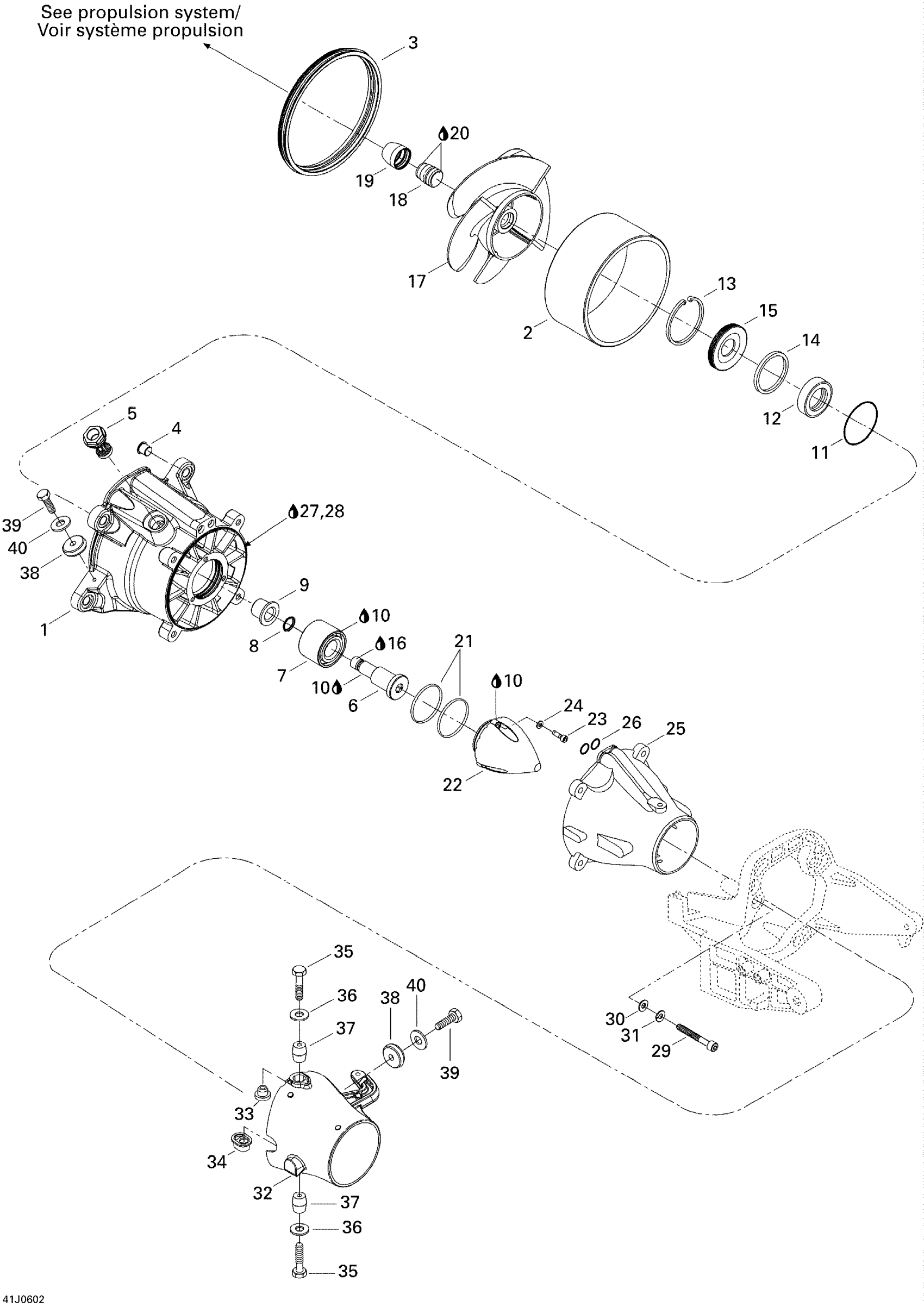

Sea-doo Sportster 4-TEC, Edition 1, 2006 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000419

$81.51

3

Neoprene Seal

293200087

$9.19

4

Bushing

267000093

$7.15

5

Plug | Includes 370z to 370z1

267000282

$14.27

6

Impeller Shaft

267000054

$94.22

7

Angled Bearing This part replaces 267000030.

267000900

$66.27

8

O-Ring

505070315

$2.34

9

Shaft Sleeve

267000318

$102.67

10

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

11

O-Ring

293300090

$5.97

12

Seal

271002071

$26.62

13

Circlip

293370038

$7.12

14

Spacer

271001393

$6.12

15

Oil Seal

293200089

$15.57

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Impeller Assy This part replaces 267000115.

267000673

$317.17

18

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

19

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

20

Synthetic Grease, 400 G

293550010

Unavailable

21

O-Ring

293300086

$2.90

22

Impeller Cover

267000262

$16.87

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

24

Stainless Flat Washer M6

234061600

$0.25

25

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

26

O-Ring

293300013

$5.69

27

Was 293800041 Loctite Primer 7649

219704458

$41.99

28

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

29

Socket Screw M8 X 110, Scotch Grip

231181060

$7.85

30

Flat Washer M8.5 x 18

293050001

$1.29

31

Lock Washer 8 mm, Stainless

234181601

$0.46

32

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

33

Venturi Bushing

293900001

$6.14

34

Plastic Bushing

293900010

$7.15

35

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

36

Flat Washer M8.5 x 18

293050001

$1.29

37

Sleeve

271001816

$11.58

38

Anode Zinc

271001813

$13.62

39

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

40

Stainless Flat Washer M6

234061600

$0.25
