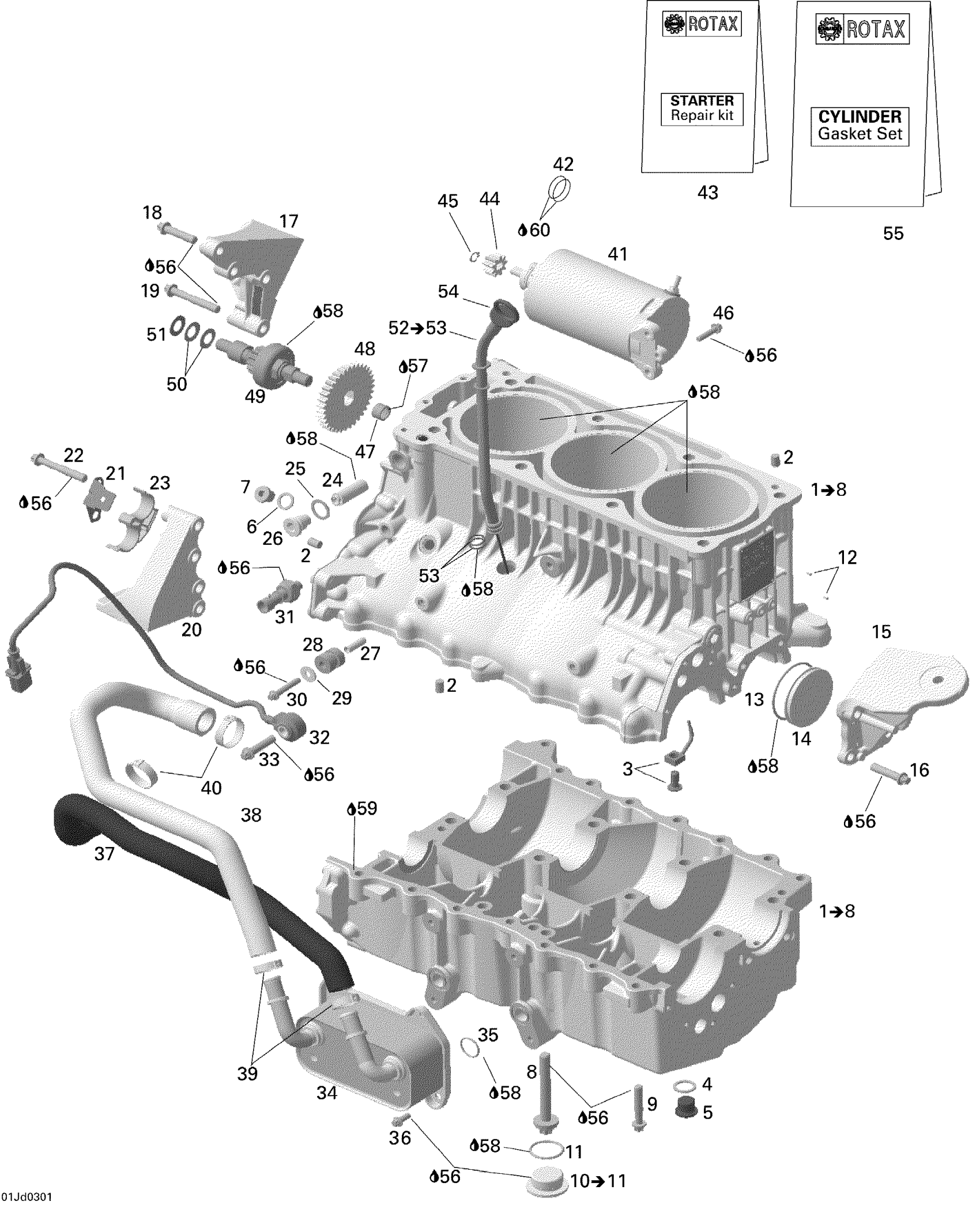

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Engine Block Diagram

#

Description
Price

1

Engine Block Ass’y | INCLUDES 1 TO 8

420888812

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$22.72

4

Gasket Ring

420430624

$1.51

5

Plug Screw M16

420240233

Unavailable

6

Aluminum Sealing Ring

420250016

$4.41

7

Plug Screw M12

420841923

$12.97

8

Torx Flange Screw M10 X 82

420641120

$6.11

9

Hex. Flange Screw M8 X 45

420641208

$6.18

10

Plug Screw M30 X 1.5

420641171

$15.57

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$7.87

12

Grooved Pin

420249073

$1.56

13

O-Ring

420430405

$11.48

14

Plug Cover

420660110

$6.11

15

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

16

Torx Flange Screw M8 X 35

420641188

$6.11

17

Engine Bracket PTO, Exhaust

420811788

$66.39

18

Torx Flange Screw M8 X 35

420641188

$6.11

19

Torx Flange Screw M8 X 55

420641213

$6.11

20

Engine Bracket PTO, Exhaust

420811784

$62.66

21

Retaining Plate

420851740

$17.88

22

Torx Flange Screw M8 X 55

420641213

$6.11

23

Hose Bracket

420660290

$14.90

24

Chain Tensioner

415129408

$60.42

25

Gasket Ring

420430624

$1.51

26

Chain Tensioner With Screw | Includes no. 8-11

420236259

$58.47

27

SPACER - Call your local BRP dealership

420847970

Unavailable

28

Rubber Bracket

420660090

$3.38

29

Flat Washer M6

420827968

$1.56

30

Torx Flange Screw M6 X 35

420641258

$2.78

31

Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.

420856538

$46.12

32

Noise Sensor

270000484

$65.62

33

Torx Flange Screw M8 X 35

420641188

$6.11

34

Oil Radiator

420888850

Unavailable

35

O-Ring

420250057

$3.48

36

Torx Flange Screw M6 X 16

420641048

$2.46

37

FORMED HOSE - Call your local BRP dealership

420922796

Unavailable

38

FORMED HOSE - Call your local BRP dealership

420922791

Unavailable

39

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

40

Gear Clamp

420851673

$4.71

41

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

42

O-Ring

420631310

$3.61

43

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

44

Starter Gear, 9 Teeth

420834522

$59.77

45

Retaining Ring

420845601

$3.73

46

Torx Flange Screw M6 X 25

420641238

$2.68

47

Needle Bushing

420232482

$15.57

48

Bendix Starter This part replaces 420889872.

420890637

$214.47

49

Bendix Starter This part replaces 420889872.

420890637

$214.47

50

Spring Washer

420238300

$6.11

51

Thrust Washer

420827261

$6.18

52

OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52

420956943

Unavailable

53

O-Ring

420950810

$12.29

54

Oil Level Gauge

420956932

$21.42

55

Engine Gasket Set

420889772

$319.77

56

Loctite 243, 10 ml

293800060

$20.77

57

Dow Corning 111, 150 g

413707000

$57.82

58

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

59

Loctite 5910, 300 ml

293800081

$57.99

60

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

61

Engine Long Block, 1503 NA | Not Shown

415150315

Unavailable
