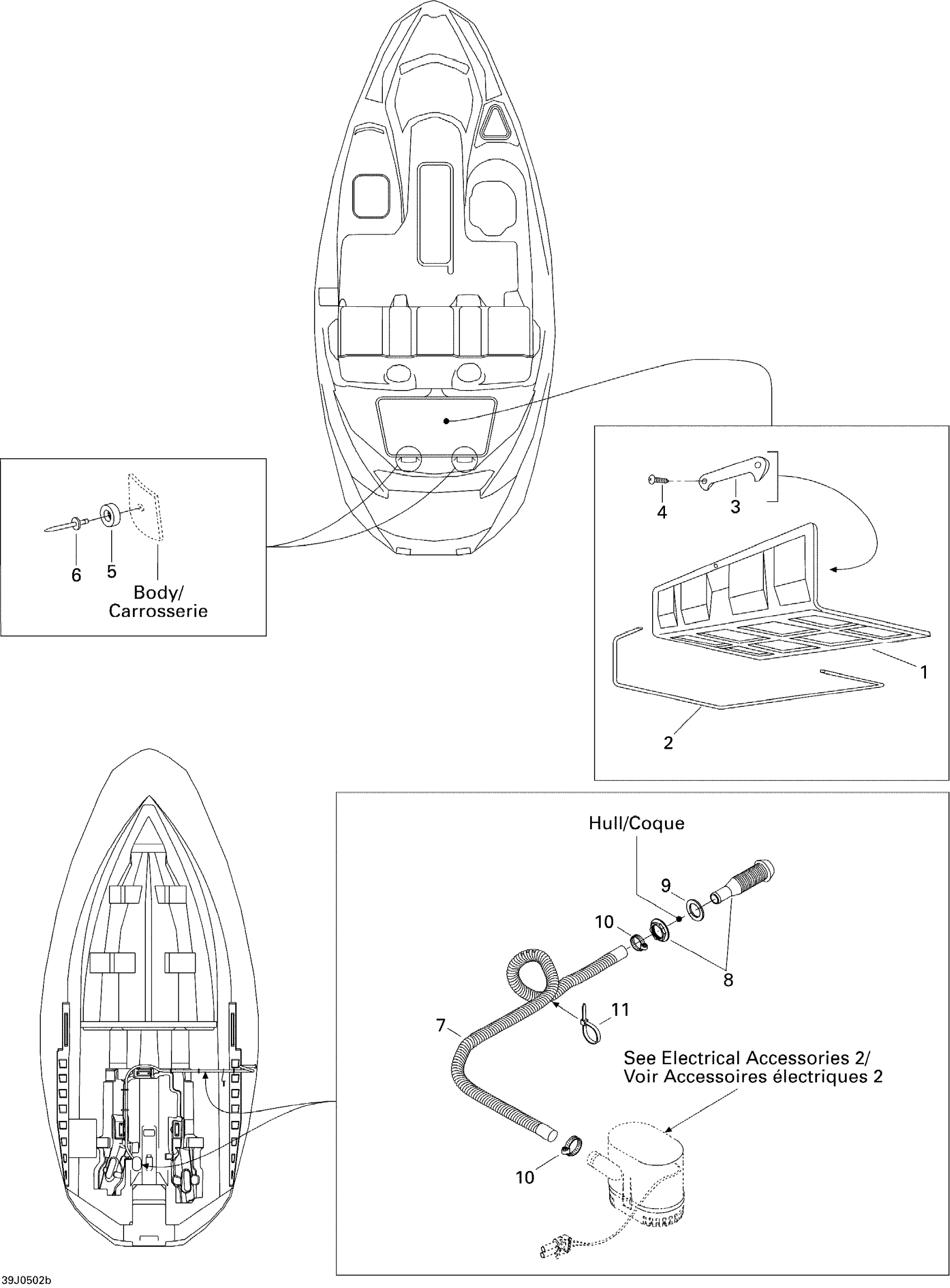

Sea-doo Sportster 4-TEC, 2005 Hull 2 Diagram

#

Description

Price

1

Access Cover

204050632

Unavailable

2

Seal Tray 1000Mm Long

219704368

$12.30

3

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

4

Hex. Flange Screw K40 X 16

241141660

$1.43

5

Rubber Stopper

293830043

Unavailable

6

RIVET - Call your local BRP dealership

293150065

Unavailable

7

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

8

Fitting

293710162

$11.87

9

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

10

Tridon Clamp

293650016

$9.84

11

Tie-Rap 180 mm

414115200

$0.10
