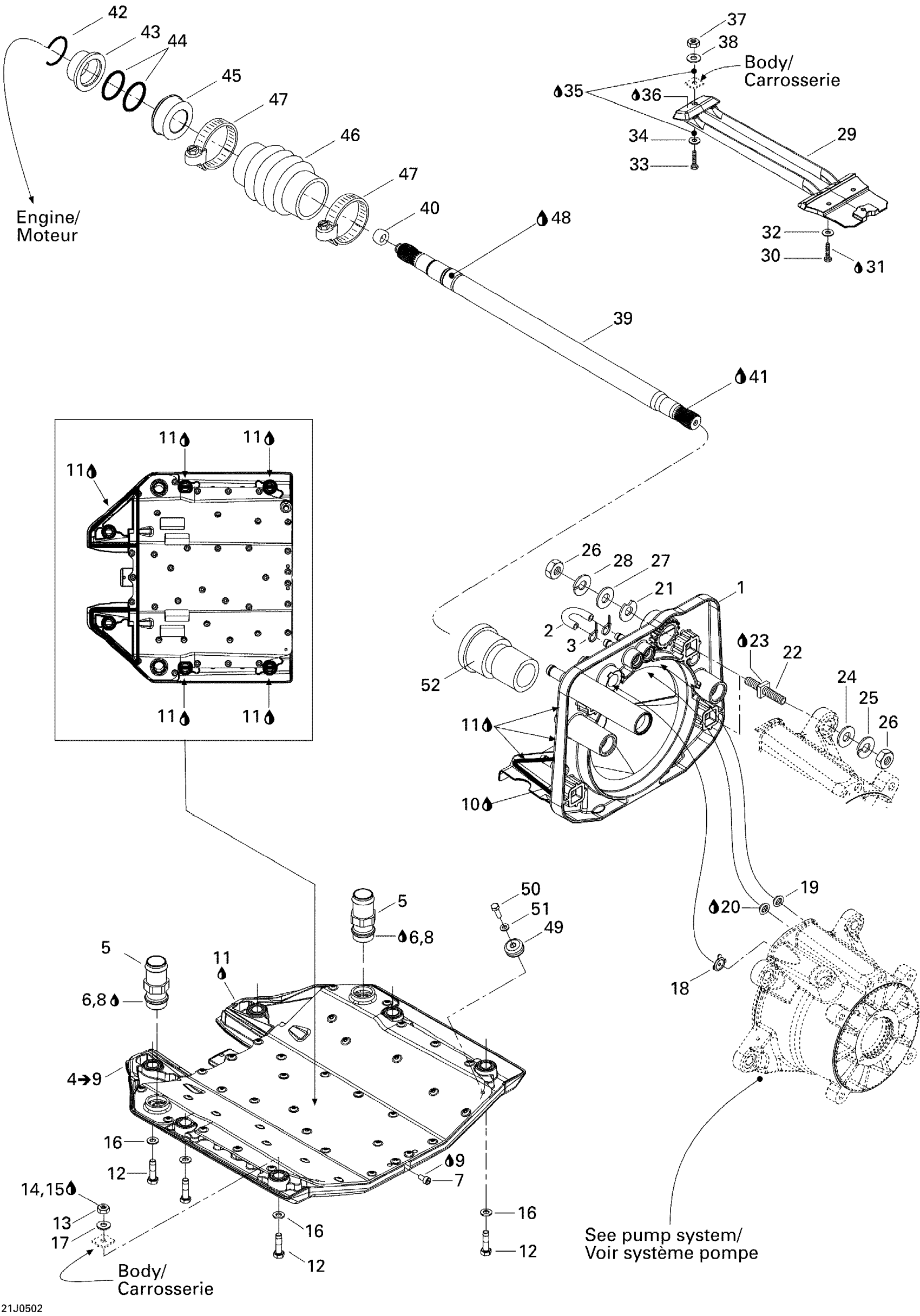

Sea-doo Sportster 4-TEC, 2005 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120266

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

3

Tie Wrap 94 mm | 4X4

293750001

$0.96

4

Riding Plate | Includes 11 to 16

271001491

Unavailable

5

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

6

Was 293800041 Loctite Primer 7649

219704458

$41.99

7

Socket Drain Plug M6 X 12

250500005

$13.48

8

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

9

Was 293800013 Loctite 56765

219704454

$63.40

10

Glue Tube, Loctite 454, 20 G

413708300

$58.18

11

Instant Gasket

219701421

$51.99

12

Hex. Screw M8 X 40

207084060

$2.12

13

Hex. Elastic Nut M8

232581600

$1.43

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

Loctite 243, 10 ml

293800060

$21.49

16

Stainless, Flat Washer 8 mm

234081600

$0.52

17

Flat Washer 8 mm, Stainless

234082600

$2.27

18

Reducer This part replaces 291001887.

291004649

$14.43

19

Watertight Seal

293250084

$6.67

20

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

21

Shim 0.3 mm

272000053

$9.21

21

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

22

Square Stud

250300022

$17.88

23

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

24

Flat Washer 10 mm, Stainless

234002600

$2.12

25

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

26

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

27

Flat Washer 10 mm, Stainless

234002600

$2.12

28

Helicoidal Lock Washer M10 | XT Models

234101601

$1.06

29

PUMP GRATE, BLACK - Call your local BRP dealership

271001459

Unavailable

30

Hex. Screw M6 X 16

207161660

$1.40

31

Loctite 271, 10 ml

293800005

$23.85

32

Stainless Flat Washer M6

234061600

$0.28

33

Hex. Screw M8 X 40

207184060

$2.12

34

Stainless, Flat Washer 8 mm

234081600

$0.52

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

Instant Gasket

219701421

$51.99

37

Hex. Elastic Nut M8

232581600

$1.43

38

Stainless, Flat Washer 8 mm

234081600

$0.52

39

Drive Shaft

271001449

$276.09

40

Drive Shaft Plug

272000173

$8.06

41

Synthetic Grease, 400 G

293550010

Unavailable

42

C-Clip

271001575

$5.21

43

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

44

O-Ring

293300044

$0.99

45

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

46

Bellows

272000183

$26.09

47

Norma Clamp

293650077

$7.01

48

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

49

Anode Zinc

271001813

$15.64

50

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

51

Stainless Flat Washer M6

234061600

$0.28

52

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
