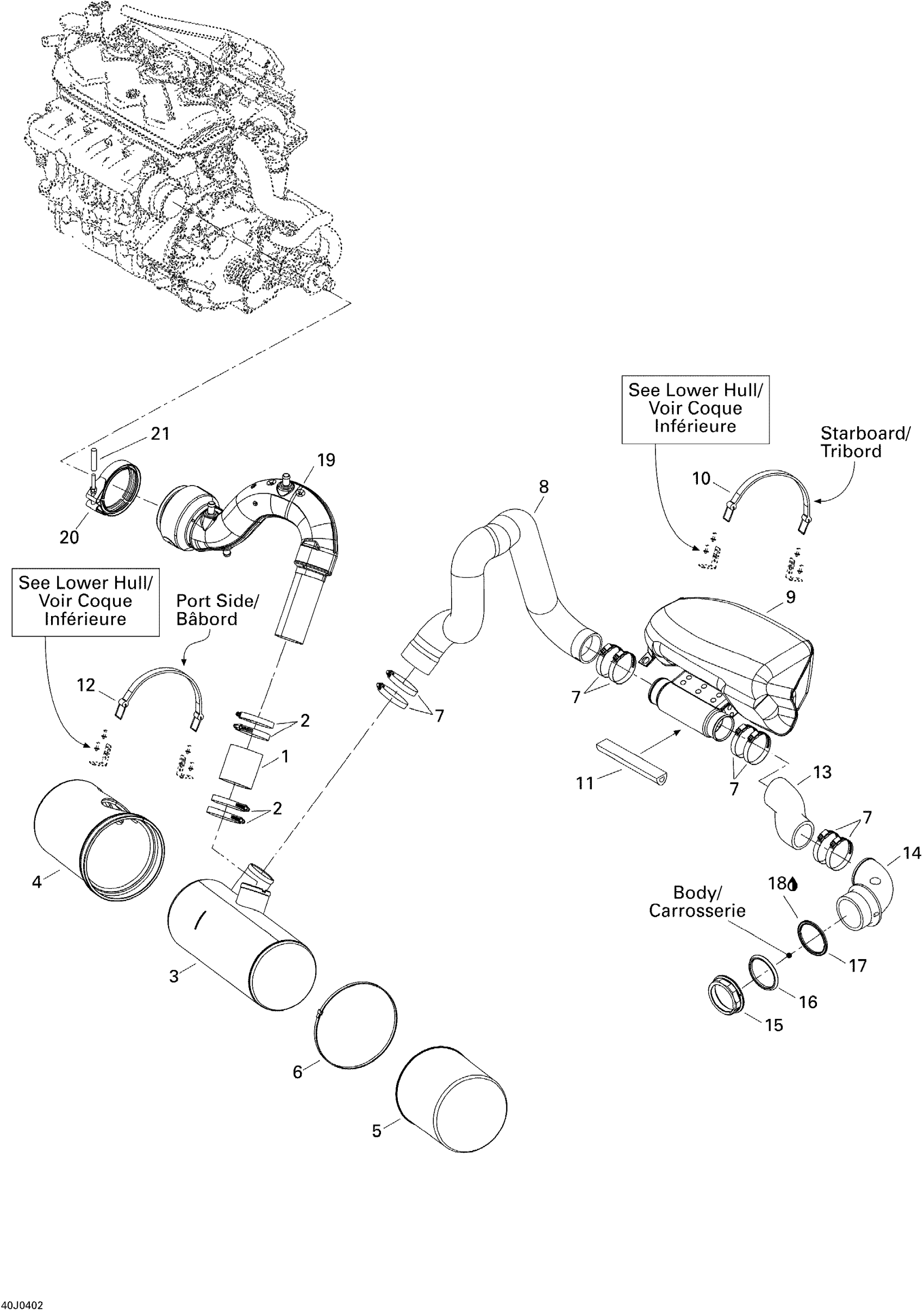

Sea-doo Sportster 4-TEC, 2004 Exhaust Diagram

#

Description
Price

1

Exhaust Hose

274001302

$28.57

2

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

3

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

4

Front Muffler Cover

274001008

Unavailable

5

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

6

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

7

Tridon Clamp

293650179

$8.81

8

EXHAUST HOSE - Call your local BRP dealership | Without Catalyst

204340436

Unavailable

9

RH Resonator

274001045

$176.12

10

STRAP - Call your local BRP dealership

293850022

Unavailable

11

Seal Tray 1000Mm Long

219704368

$12.30

12

Retainer Strap

293850097

$9.26

13

Exhaust Hose This part replaces 204340437.

0461589

Unavailable

14

Exhaust Hose, Outlet

274001389

$23.37

15

Nut 72 mm

274000224

$12.17

16

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

17

GASKET - Call your local BRP dealership

293250041

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

20

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

21

Polyurethane Hose 10000Mm Long

219704410

$46.12
