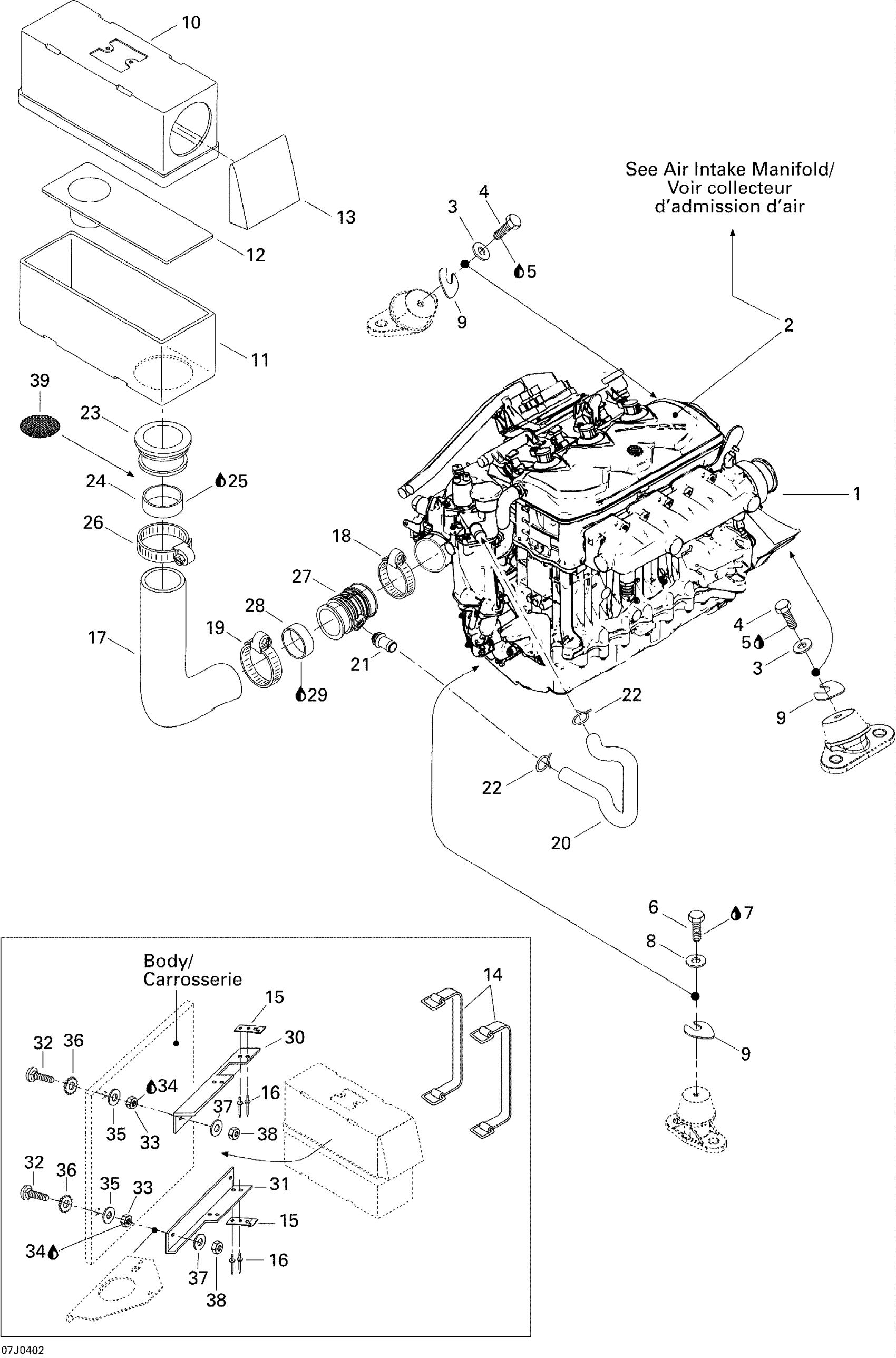

Sea-doo Sportster 4-TEC, 2004 Engine Support And Air Intake Diagram
#
1
Rotax Engine 4 Strokes «1503»
270000567
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
Flat Washer 8 mm, Stainless
234082600
Unavailable
4
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
5
Loctite 243, 10 ml
293800060
Unavailable
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Loctite 243, 10 ml
293800060
Unavailable
8
Flat Washer 8 mm, Stainless
234082600
Unavailable
9
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
9
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
10
Air Silencer, Upper
204250260
Unavailable
11
Air Silencer, Lower
204250261
Unavailable
12
Air Silencer Divider
204250269
Unavailable
13
Air Silencer Hood
204250270
Unavailable
14
Retainer Strap
293850097
Unavailable
15
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
16
Pop Rivet 3/16"
204000081
Unavailable
17
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
18
TRIDON GEAR CLAMP - Call your local BRP dealership
293650061
Unavailable
19
Tridon Clamp
293650179
Unavailable
20
FORMED HOSE - Call your local BRP dealership
275500497
Unavailable
21
Breather Valve
273000234
Unavailable
22
Spring Clamp
293650115
Unavailable
23
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
24
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
25
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
26
Tridon Clamp
293650179
Unavailable
27
Adaptor Hose, Engine
204250276
Unavailable
28
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
29
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
30
Air Silencer Bracket, Upper
204250285
Unavailable
31
Air Silencer Bracket, Lower
204250284
Unavailable
32
Elevator Bolt
204000130
Unavailable
33
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
34
Loctite 271, 10 ml
293800005
Unavailable
35
Stainless, Flat Washer 8 mm
234081600
Unavailable
36
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
37
Flat Washer M6, Stainless
234062600
Unavailable
38
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
39
Intake Screen
204250395
Unavailable
