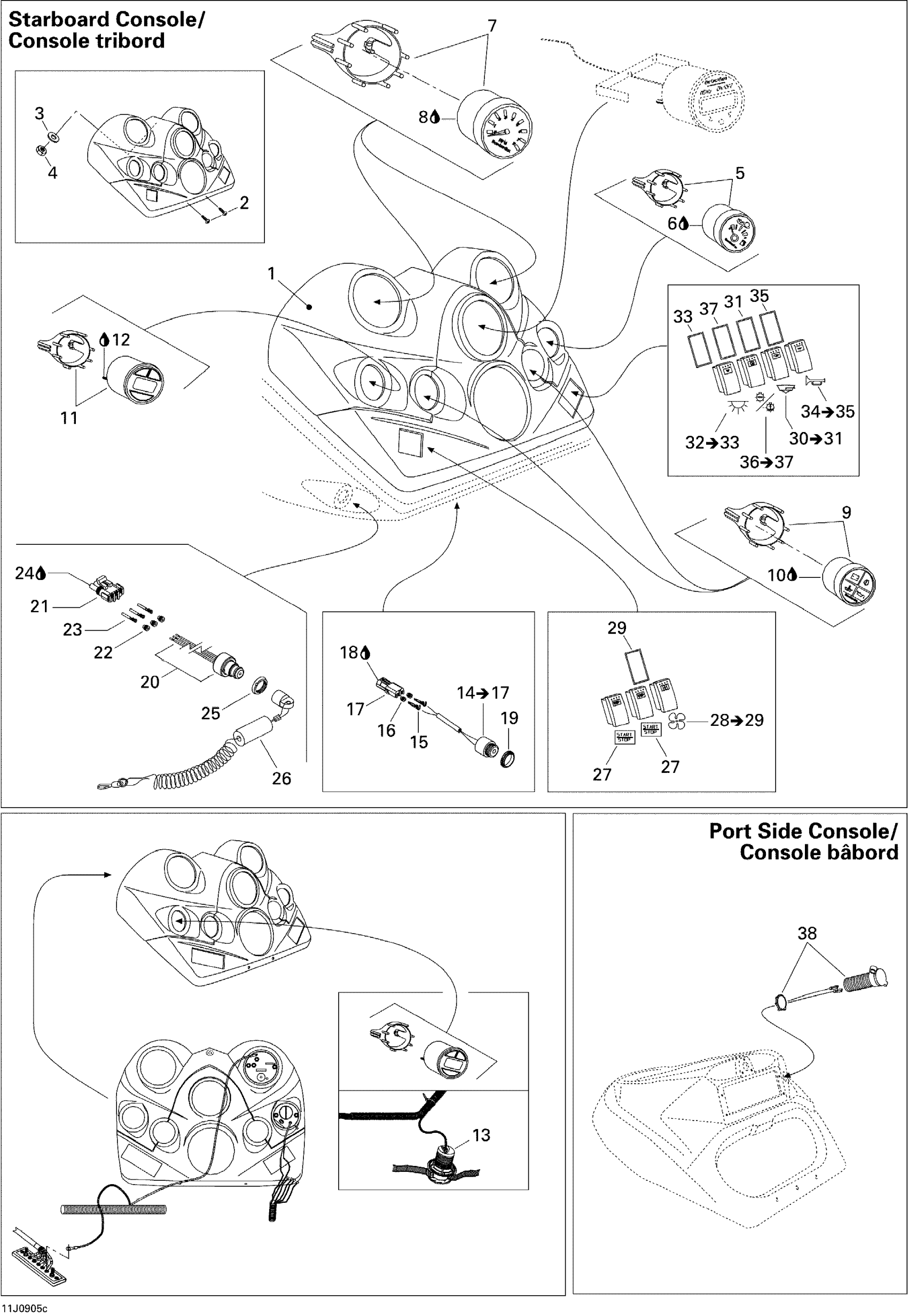

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Electrical Accessories 3 Diagram

#

Description
Price

1

Fascia

204471354

Unavailable

2

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

Unavailable

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

7

TACHOMETER GAUGE - Call your local BRP dealership

204470958

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

9

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

11

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

13

Depth Sensor

204471292

Unavailable

14

Buzzer Ass'y

204470913

Unavailable

15

Male Terminal | XT Models

278000222

$2.55

16

Wire Seal

278000218

Unavailable

17

Female Housing, 2 Circuits

278000217

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

19

Buzzer Nut

278000707

Unavailable

20

Safety Switch This part replaces 278002325.

278002773

Unavailable

21

Male Housing, 3 Circuits

278000273

Unavailable

22

Wire Seal

278000218

Unavailable

23

Female Terminal

278000223

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

25

Safety Nut (DESS Switch)

278002963

$2.72

26

Safety Lanyard

204471206

Unavailable

27

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

28

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

29

Gasket

204470132

Unavailable

30

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

31

Gasket

204470132

Unavailable

32

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

33

Gasket

204470132

Unavailable

34

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

Unavailable

35

Gasket

204470132

Unavailable

36

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

37

Gasket

204470132

Unavailable

38

DC Outlet

710001248

$31.17

Fascia

204471259

Unavailable
