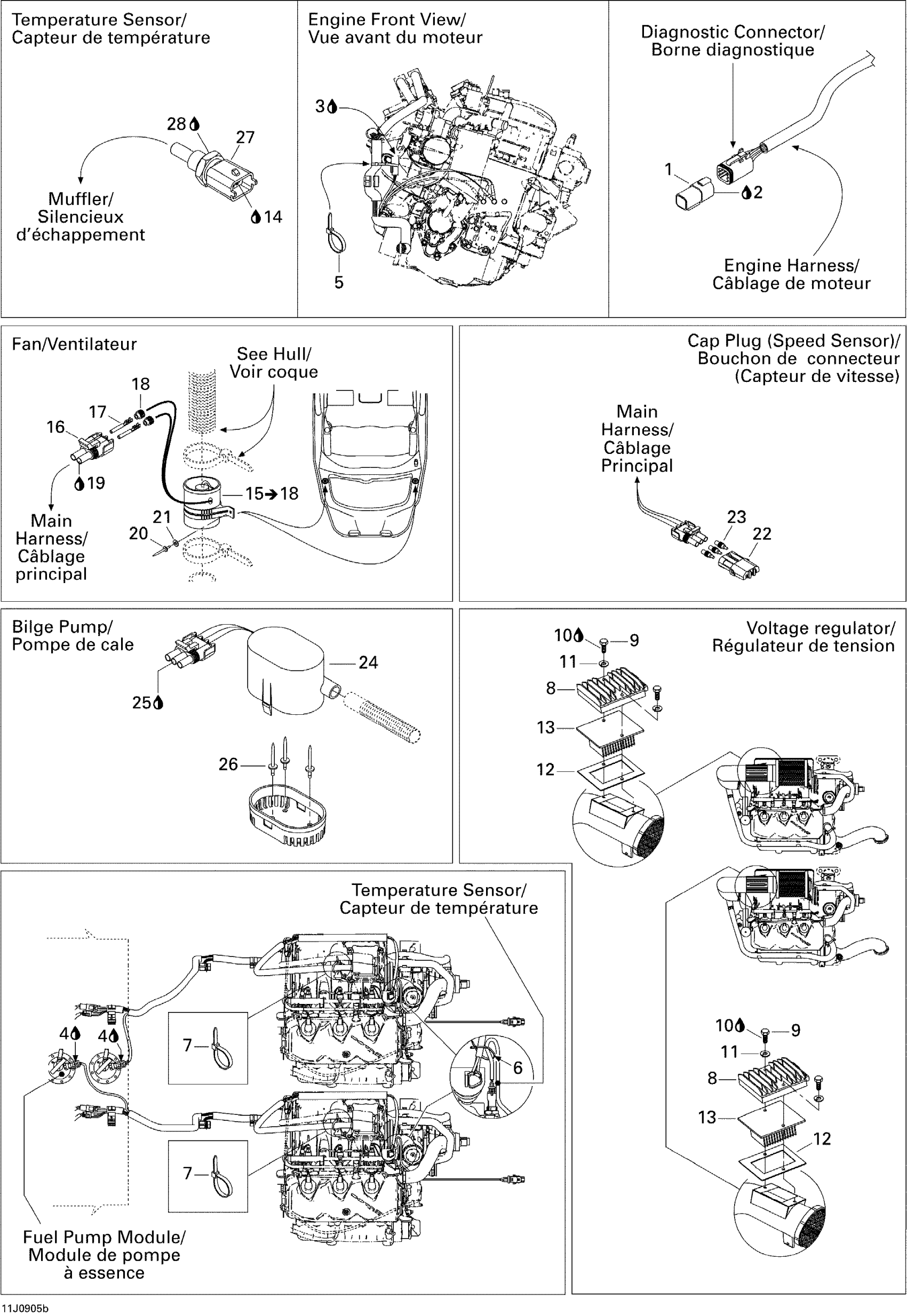

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Electrical Accessories 2 Diagram

#

Description
Price

1

Diagnostic Connector

278002704

Unavailable

2

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

4

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

5

Tie-Rap 180 mm

414115200

$0.09

6

Tie Wrap 142 mm

293750002

Unavailable

7

Tie Wrap 142 mm

293750002

Unavailable

8

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

9

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

10

Loctite 243, 10 ml

293800060

$20.77

11

Lock Washer 1/4”

211200025

Unavailable

12

SEAL - Call your local BRP dealership

204471293

Unavailable

13

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

15

Fan Ass'y | Includes 44 to 47

204470108

Unavailable

16

Male Connector, 2 Circuits

278000220

$11.02

17

Female Terminal

278000223

Unavailable

18

Wire Seal

278000218

Unavailable

19

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

20

Pop Rivet 3/16"

293150008

Unavailable

21

Flat Washer 5 mm, Stainless

234052600

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

23

Wire Seal

278000216

Unavailable

24

Bilge Pump

204471431

Unavailable

25

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

26

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

27

Temperature Sensor

278002895

$31.82

28

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable
