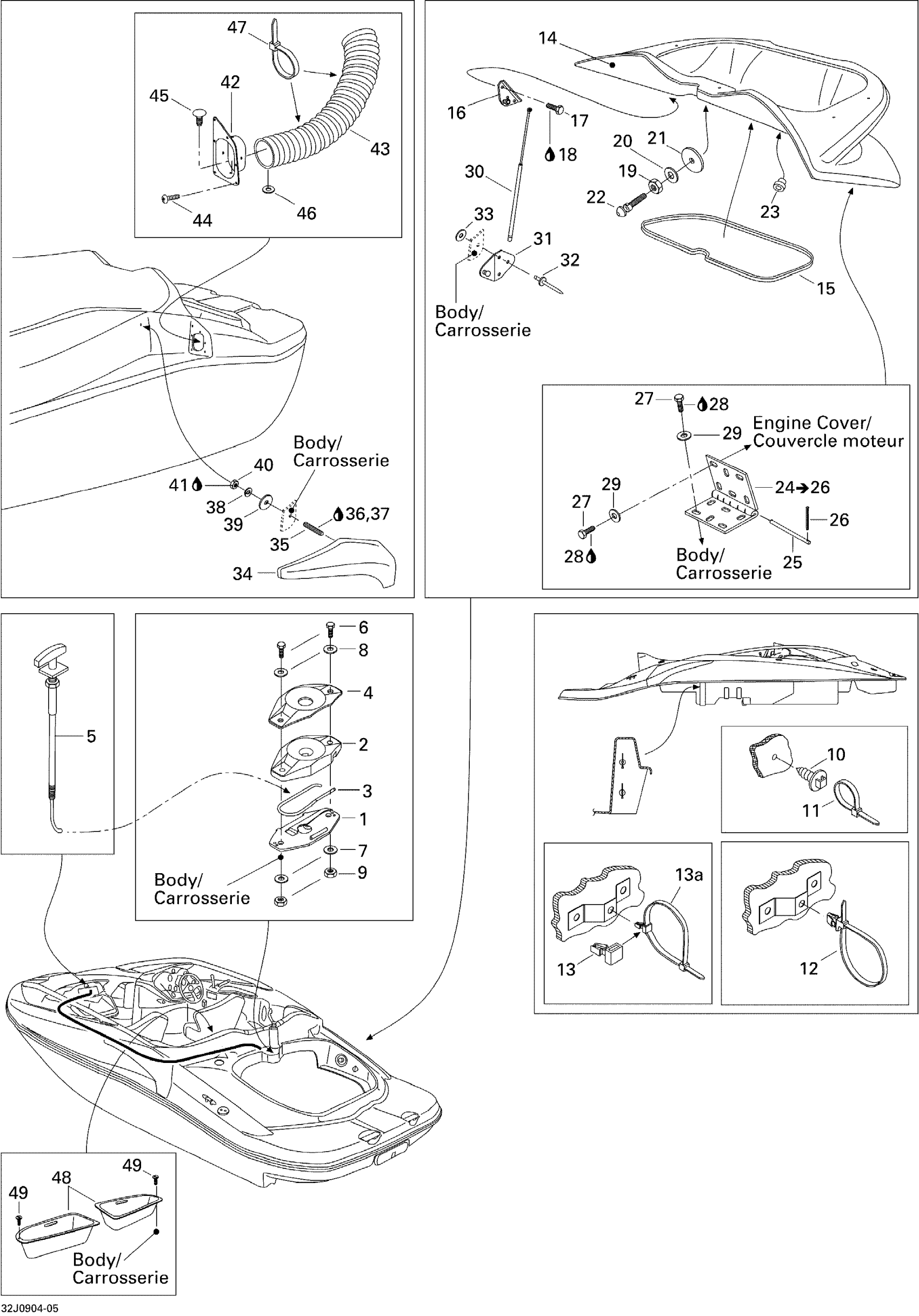

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

6

Hex. Screw M6 X 35

207163560

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

Stainless Flat Washer M6

234061600

$0.25

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Mount Dart

293730040

$0.86

11

Tie-Rap 180 mm

414115200

$0.09

12

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

13

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

13a

Tie Wrap 368 mm

293750008

$0.85

14

Engine Cover

204073208

Unavailable

15

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

16

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

17

Hex. Screw M4 X 16 | Europe

207141660

Unavailable

18

Loctite 243, 10 ml

293800060

$20.77

19

Hex. Jam Nut M10

232100600

Unavailable

20

Flat Washer 10 mm, Stainless

234002600

Unavailable

21

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

22

Latch Stud

204130146

Unavailable

23

GROMMET - Call your local BRP dealership

293720017

Unavailable

24

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

25

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

26

Cotter Pin M2.5 X 12

204070205

Unavailable

27

Hex. Screw M6 X 25

207162560

Unavailable

28

Loctite 243, 10 ml

293800060

$20.77

29

Stainless Flat Washer M6

234061600

$0.25

30

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

30

GAS SHOCK - Call your local BRP dealership

204071959

Unavailable

31

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

32

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

33

Flat Washer M5, Stainless

234051600

$0.64

34

INLET VENT COVER, PORT SIDE - Call your local BRP dealership

204072463

Unavailable

34

INLET VENT COVER, STARBOARD - Call your local BRP dealership

204072464

Unavailable

35

Set Screw 1/4-20

204100142

Unavailable

36

Was 293800041 Loctite Primer 7649

219704458

Unavailable

37

Loctite 271, 10 ml

293800005

Unavailable

38

Lock Washer 1/4”

211200025

Unavailable

39

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

40

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

41

Loctite 243, 10 ml

293800060

$20.77

42

INLET VENT, PORT SIDE - Call your local BRP dealership

204071856

Unavailable

42

INLET VENT, STARBOARD - Call your local BRP dealership

204071857

Unavailable

43

Was 204050122 Vent Hose 4"

219704358

Unavailable

44

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

45

Black, Dart

293730006

Unavailable

46

Flat Washer M6, Stainless

234062600

Unavailable

47

Tie Rap, 533 mm

293750047

Unavailable

48

REAR STORAGE TRAY, PORT SIDE - Call your local BRP dealership

204071858

Unavailable

48

REAR STORAGE TRAY, STARBOARD - Call your local BRP dealership

204073076

Unavailable

49

SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership

204100095

Unavailable
