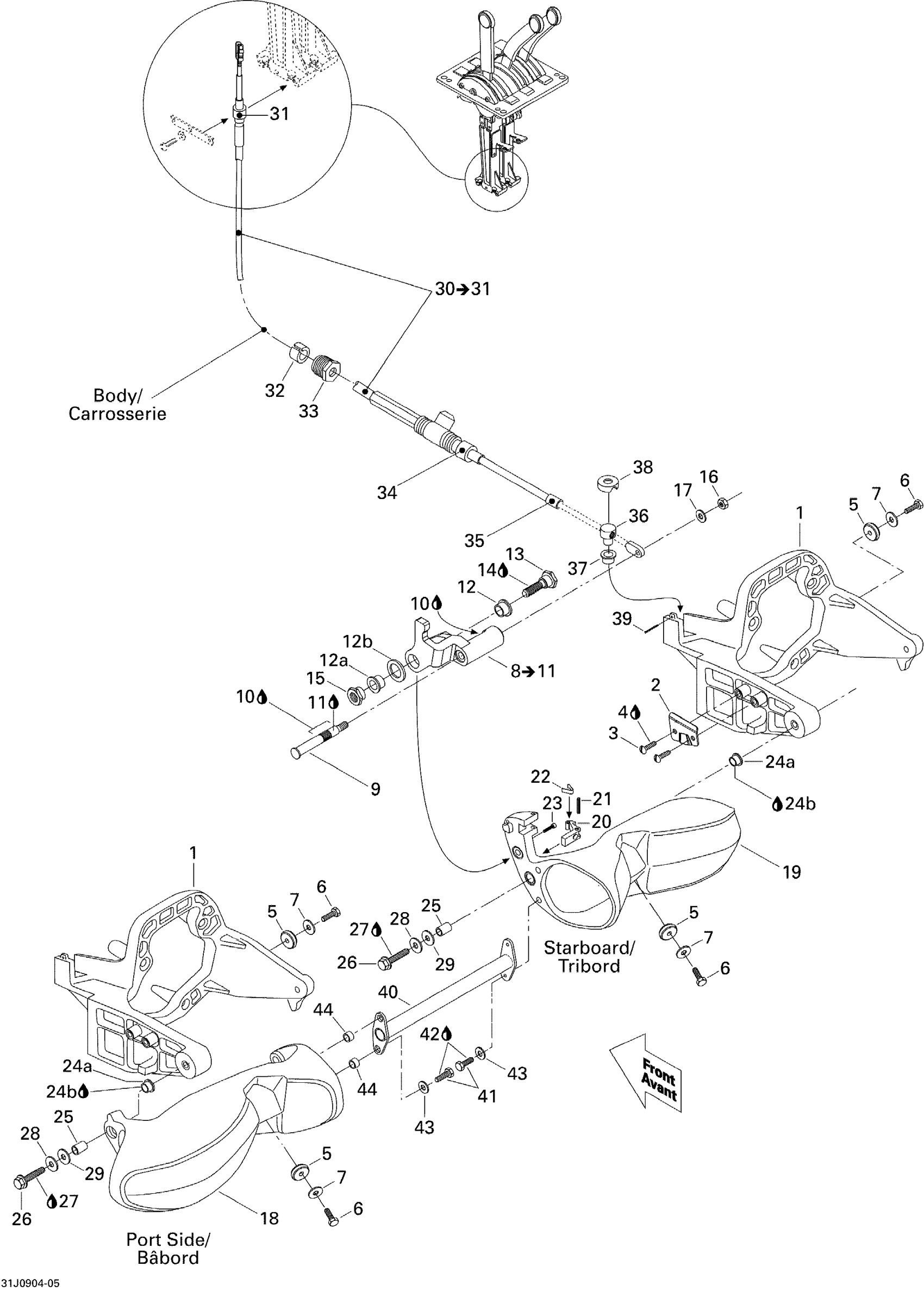

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Reverse Diagram
#
1
Reverse Gate Support
204170214
Unavailable
2
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
3
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
5
Anode Zinc
271001813
Unavailable
6
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
8
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
Unavailable
9
PIN - Call your local BRP dealership
204130037
Unavailable
10
Was 293800041 Loctite Primer 7649
219704458
Unavailable
11
Sealant Loctite 648
219703000
Unavailable
12a
BUSHING - Call your local BRP dealership
204130036
Unavailable
12b
WASHER, NYLON - Call your local BRP dealership
204100237
Unavailable
13
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
14
Loctite 271, 10 ml
293800005
Unavailable
15
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
16
NEEDS DESCRIPTION This part replaces 204100034.
0460000
Unavailable
17
Flat Washer 5 mm, Stainless
234052600
Unavailable
18
NEEDS DESCRIPTION This part replaces 204170217.
423465080
Unavailable
19
Reverse Gate, Starboard
268000107
Unavailable
20
HOOK - Call your local BRP dealership
204170220
Unavailable
21
Pin
211400009
Unavailable
22
Spring
271000431
Unavailable
23
Socket Head Screw
204100127
Unavailable
24a
Bushing
204130237
Unavailable
24b
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
25
Sleeve
204170177
Unavailable
26
Hex. Flange Screw 18 X 1.56
204100163
Unavailable
28
Flat Washer 8 mm, Stainless
234082600
Unavailable
29
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
30
Reverse Cable
268000109
Unavailable
31
End Piece
277001583
Unavailable
32
RUBBER GROMMET - Call your local BRP dealership
204130041
Unavailable
33
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
34
End Piece
277001583
Unavailable
35
Wiper Rod
277001582
Unavailable
36
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
37
Bushing
204130237
Unavailable
38
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
39
Cotter Pin
204130040
Unavailable
40
Reverse Rod
204170231
Unavailable
41
SCREW HEX. M4 X 20 - Call your local BRP dealership
207142060
Unavailable
43
Flat Washer 4 mm, Stainless
234042600
Unavailable
44
SPACER BUSHING - Call your local BRP dealership
204170026
Unavailable
