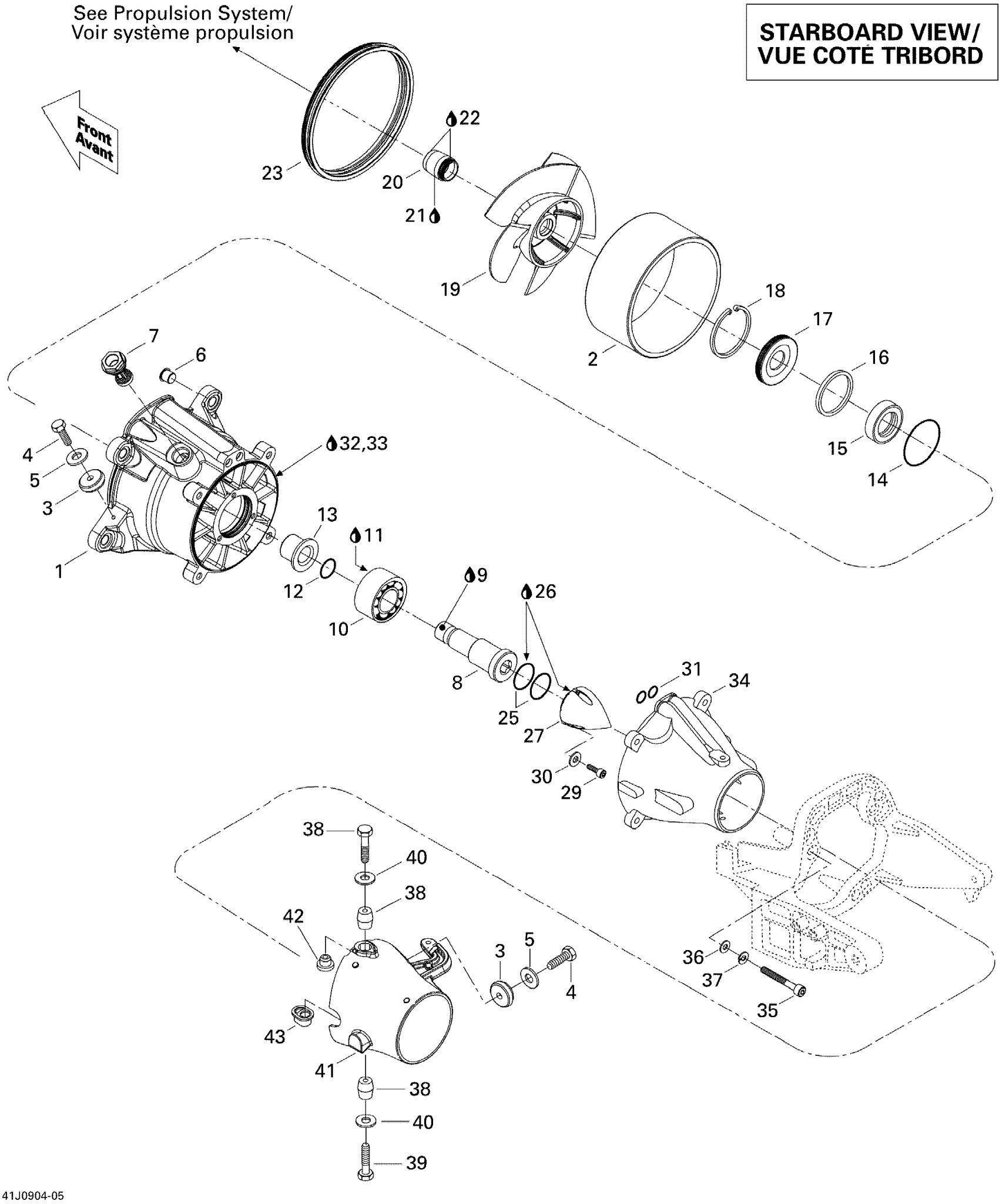

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Pump Diagram
#
1
Impeller Housing
267000084
Unavailable
2
Wear Ring
267000372
Unavailable
3
Anode Zinc
271001813
Unavailable
4
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
6
Bushing
267000093
Unavailable
7
Plug | Includes 370z to 370z1
267000282
Unavailable
8
Impeller Shaft
267000054
Unavailable
9
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
10
Angled Bearing This part replaces 267000030.
267000900
Unavailable
11
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
12
O-Ring
505070315
Unavailable
13
Shaft Sleeve
267000318
Unavailable
14
O-Ring
293300090
Unavailable
15
Seal
271002071
Unavailable
16
Spacer
271001393
Unavailable
17
Oil Seal
293200089
Unavailable
18
Circlip
293370038
Unavailable
19
Impeller Ass'y This part replaces 267000250.
267000699
Unavailable
20
Guard
271002228
Unavailable
21
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
22
Synthetic Grease, 400 G
293550010
Unavailable
23
Neoprene Seal
293200087
Unavailable
25
O-Ring
293300086
Unavailable
26
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
27
Impeller Cover
267000262
Unavailable
29
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
32
Was 293800041 Loctite Primer 7649
219704458
Unavailable
33
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
34
VENTURI, BLACK - Call your local BRP dealership
204160306
Unavailable
35
Socket Screw M8 X 110, Scotch Grip
231181060
Unavailable
36
Flat Washer M8.5 x 18
293050001
Unavailable
37
Lock Washer 8 mm, Stainless
234181601
Unavailable
38
Sleeve
271001816
Unavailable
39
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
40
Flat Washer M8.5 x 18
293050001
Unavailable
41
STEERING NOZZLE, BLACK - Call your local BRP dealership
271001787
Unavailable
42
Venturi Bushing
293900001
Unavailable
43
Plastic Bushing
293900010
Unavailable
