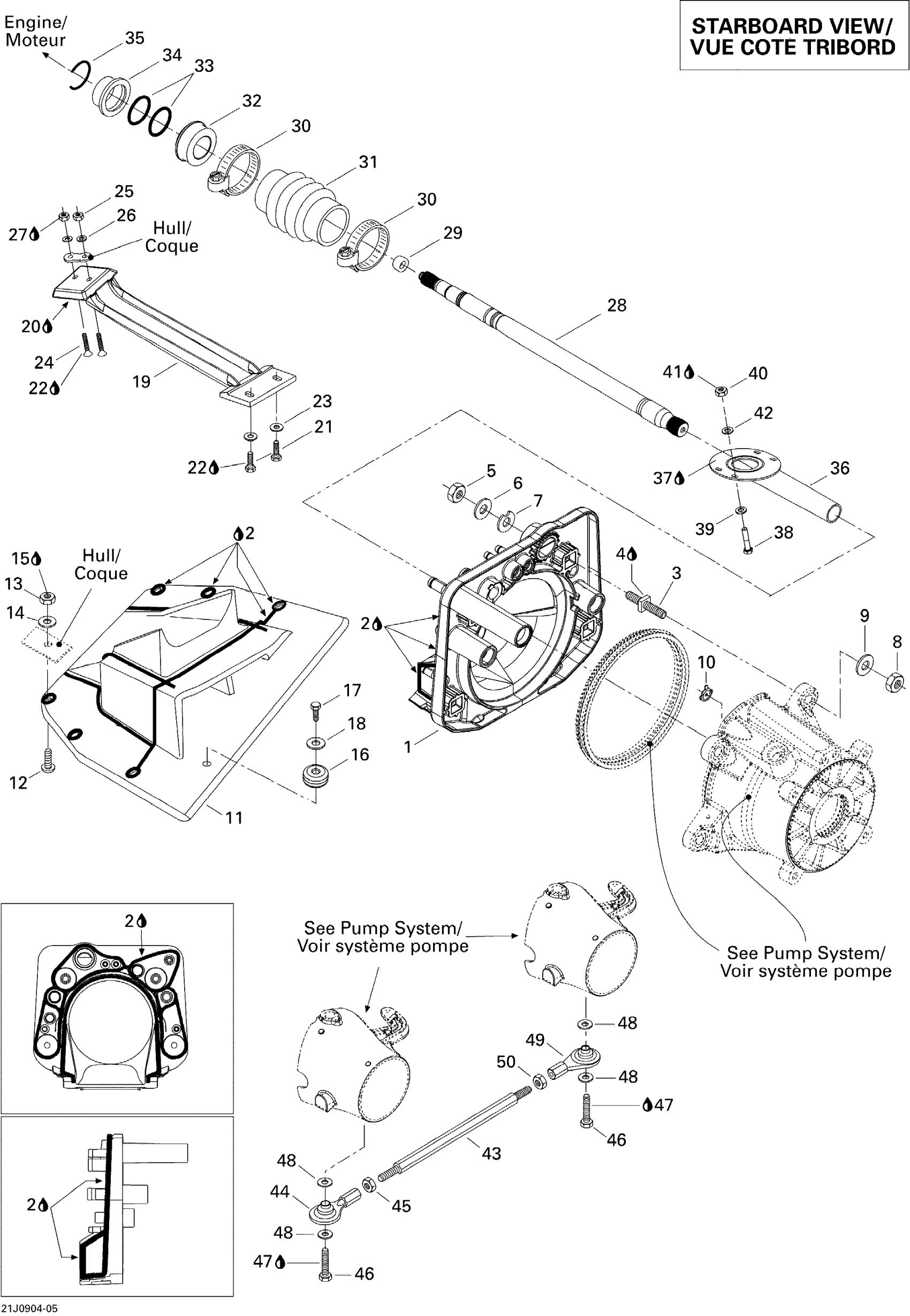

Sea-doo Speedster Wake, 2 x 215 SCIC, 2009 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120313

Unavailable

2

Instant Gasket

219701421

Unavailable

3

Square Stud

250300022

Unavailable

4

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

5

Elastic Stop Nut M10, Brass

232501200

Unavailable

6

Flat Washer 10 mm, Stainless

234002600

Unavailable

7

Shim 0.3 mm

272000053

Unavailable

7

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

8

Elastic Stop Nut M10, Brass

232501200

Unavailable

9

Flat Washer

211200051

Unavailable

10

Reducer This part replaces 291001887.

291004649

Unavailable

11

Ride Plate, Port Side

204120323

Unavailable

11

Ride Plate, Starboard

204120324

Unavailable

12

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

13

Hex. Elastic Stop Nut M6

232561600

$0.92

14

Flat Washer M6, Stainless

234062600

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

Unavailable

16

Anode Zinc

271001813

Unavailable

17

Hex. Screw M6 X 20, Scotch Grip

207362060

Unavailable

18

Stainless Flat Washer M6

234061600

$0.25

19

FIXED GRATE PORT SIDE - Call your local BRP dealership

204120325

Unavailable

19

Fixed Grate, Starboard

204120326

Unavailable

20

Instant Gasket

219701421

Unavailable

21

Hex. Screw M6 X 16

207161660

Unavailable

22

Loctite 271, 10 ml

293800005

Unavailable

23

Stainless Flat Washer M6

234061600

$0.25

24

Phillips Screw M6 X 35 | W/O Weedless System

208563560

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

Flat Washer M6, Stainless

234062600

Unavailable

27

Silicone Sealant 51388, 300 ml

296000309

Unavailable

28

Drive Shaft

204120284

Unavailable

29

Drive Shaft Plug

272000173

Unavailable

30

Norma Clamp

293650077

$6.11

31

Bellows

272000183

Unavailable

32

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

33

O-Ring

293300044

Unavailable

34

Carbon Ring Kit This part replaces 272000177.

295501200

Unavailable

35

C-Clip

271001575

Unavailable

36

SHAFT GUARD - Call your local BRP dealership

204120316

Unavailable

37

Instant Gasket

219701421

Unavailable

38

Phillips Screw M5 X 35

208653560

Unavailable

39

Flat Washer M5, Stainless

234051600

$0.64

40

Hex. Elastic Nut M5 | X

232551600

Unavailable

41

Silicone Sealant 51388, 300 ml

296000309

Unavailable

42

Flat Washer 5 mm, Stainless

234052600

Unavailable

43

LINK ROD - Call your local BRP dealership

204120255

Unavailable

44

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

45

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

46

Hex. Screw M6 X 25

207162560

Unavailable

47

Loctite 243, 10 ml

293800060

$20.77

48

Stainless Flat Washer M6

234061600

$0.25

49

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

50

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

$6.23
