- Speedster SK, 5677/5681, 1999
Typical Electrical Connections

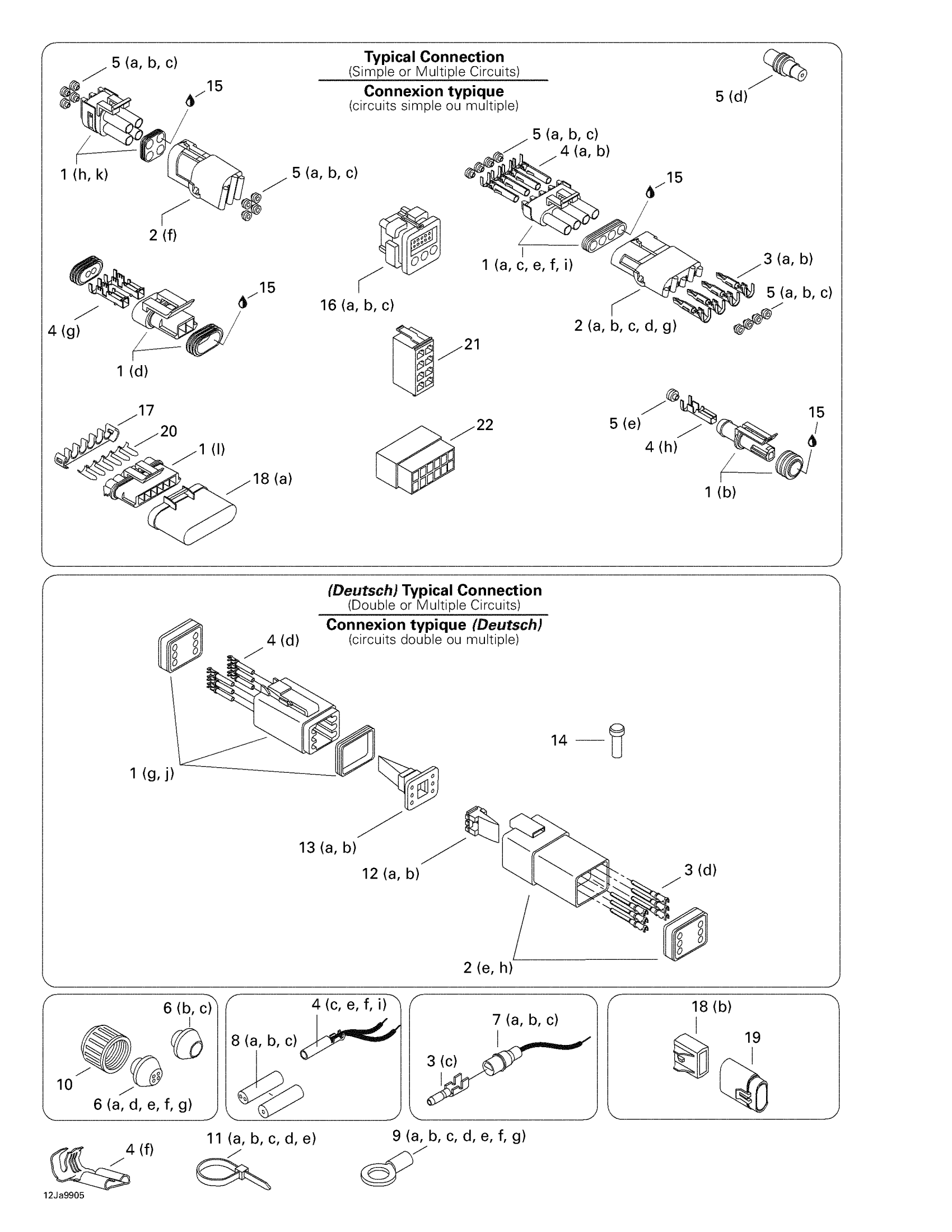

Sea-doo Speedster SK, 5677/5681, 1999 Typical Electrical Connections Diagram
#
1a
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
1e
Male Housing, 3 Circuits
278000273
Unavailable
1f
Male Housing, 4 Circuits
278000395
Unavailable
1h
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
1i
MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000221
Unavailable
1j
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
1k
Male Housing, 6 Circuits, Amp
278001318
Unavailable
1l
Male Housing, 6 Circuits, Packard
278001327
Unavailable
2a
Female Housing, 1 Circuit
278000161
Unavailable
2b
Female Housing, 2 Circuits
278000217
Unavailable
2c
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
2d
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
2f
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
2g
FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership
278000156
Unavailable
3c
Male Terminal
278000230
Unavailable
4b
Female Terminal
278000223
Unavailable
4c
Female Terminal | DS 650 X
278001009
Unavailable
4d
Female Terminal
278000632
Unavailable
4e
Female Terminal | DS 650 X
278001009
Unavailable
4f
FEMALE TERMINAL - Call your local BRP dealership
278000228
Unavailable
4h
Female Terminal
278001014
Unavailable
4i
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
5a
Wire Seal
278000218
Unavailable
5b
Wire Seal
278001065
Unavailable
5c
Wire Seal
278001065
Unavailable
5d
Wire Seal
278000216
Unavailable
5e
Wire Seal
278001013
Unavailable
6a
Grommet, 1 Circuit, Blue
293720030
Unavailable
6b
GROMMET - Call your local BRP dealership
278000098
Unavailable
6c
Grommet
278000682
Unavailable
6d
GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership
293720025
Unavailable
6e
GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership
278000193
Unavailable
6f
Grommet, 4 Circuit, Red
570026800
Unavailable
6g
Grommet
293720034
Unavailable
7a
Insulation Sheath
278000231
Unavailable
7b
Insulated Sheath
278001008
Unavailable
7c
Insulated Sheath
278001008
Unavailable
8a
Insulated Sheath
278001007
Unavailable
8b
Insulated Sheath
278001007
Unavailable
8c
Insulated Sheath
278000770
Unavailable
9b
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
9c
Ring Terminal
278000300
Unavailable
9d
Open Barrel, 8 mm
278001138
Unavailable
9e
Open Barrel
278001165
Unavailable
9f
Open Barrel, Amp
278001323
Unavailable
9g
Open Barrel, Amp
278001324
Unavailable
10
Electric Wire Cap
278000100
Unavailable
11b
Tie Wrap 142 mm
293750002
Unavailable
11d
Tie-Rap 173 mm
293750009
Unavailable
12b
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
14
Sealing Cap
293000052
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
16a
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
16b
Male Terminal Housing, 26 Circuits
278001062
Unavailable
16c
MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership
278001063
Unavailable
17
Secondary Lock, Packard
278001328
Unavailable
18a
Cap, 6 Circuits, Packard
278001330
Unavailable
20
Buss Bar, Packard
278001329
Unavailable
21
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001321
Unavailable
22
Male Housing, 2 Circuits, Molex
278001322
Unavailable
