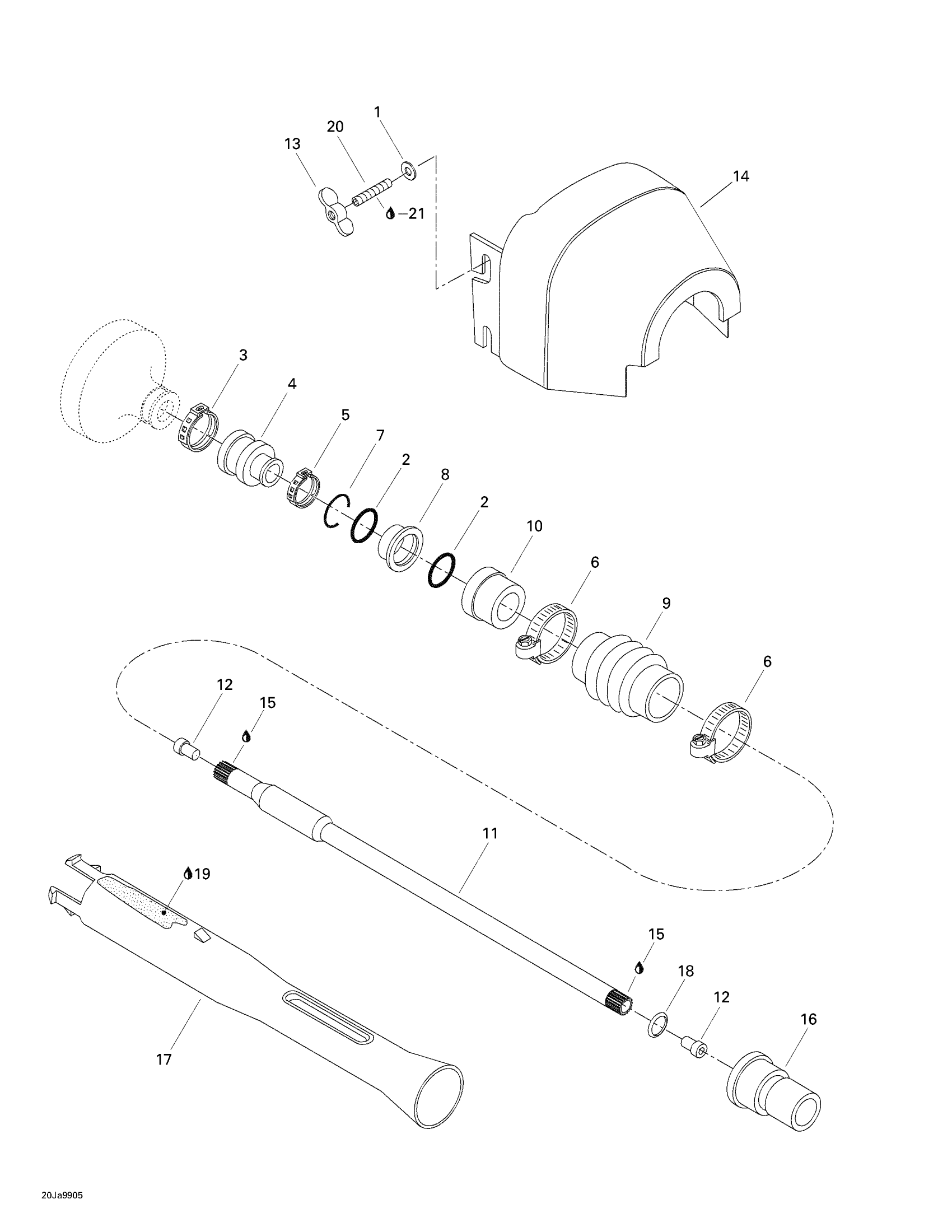

Sea-doo Speedster SK, 5677/5681, 1999 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.27

2

O-Ring

293300032

$5.61

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$9.28

7

C-CLIP - Call your local BRP dealership

272000135

Unavailable

8

Support Ring

272000064

$61.16

9

BELLOWS - Call your local BRP dealership

272000184

Unavailable

10

Carbon Ring

272000770

Unavailable

11

Drive Shaft

272000073

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$1.99

14

Flywheel Guard R.H

204120163

Unavailable

Flywheel Guard L. H

204120162

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

16

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

17

SHAFT PROTECTOR - Call your local BRP dealership

204120130

Unavailable

18

Retaining Ring

204120132

Unavailable

19

Instant Gasket

219701421

$51.99

20

Stud M8 x 15

211300013

Unavailable

21

Loctite 271, 10 ml

293800005

$23.85
