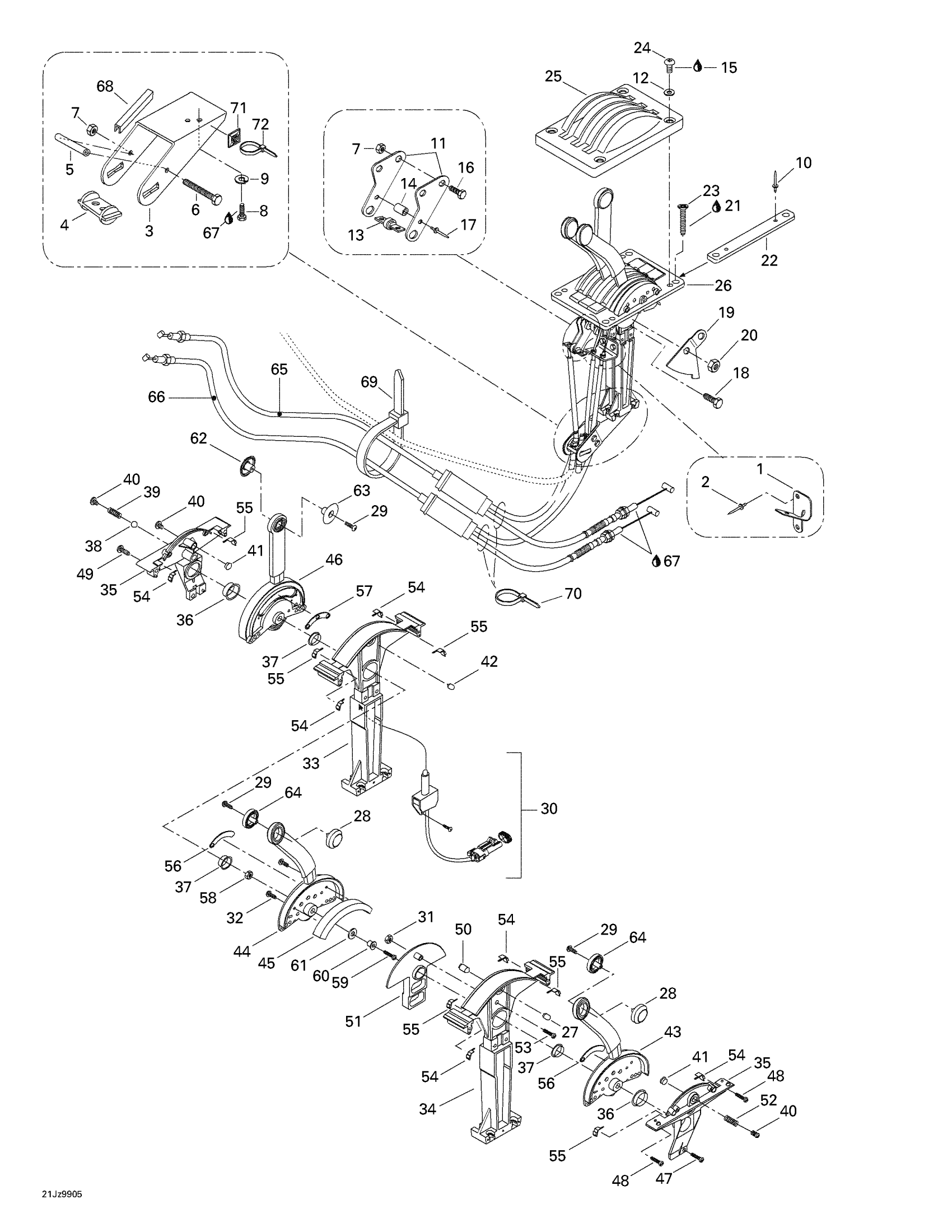

Sea-doo Speedster SK, 5677/5681, 1999 Control Handle Diagram

#

Description
Price

1

CABLE SUPPORT - Call your local BRP dealership

277000504

$16.60

2

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

3

SUPPORT - Call your local BRP dealership

277000452

Unavailable

4

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

5

SPACER - Call your local BRP dealership

277000453

Unavailable

6

SOCKET HEAD SCREW M6 X 80 - Call your local BRP dealership

205068060

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Hex. Cap Screw M6 X 12

207161260

Unavailable

9

Lock Washer Helical M6

234161601

Unavailable

10

Pop Rivet 3/16"

293150013

$1.11

11

Link - Reverse

204390151

Unavailable

12

Flat Washer 4 mm

234040600

Unavailable

13

Pivot Bracket

204390152

Unavailable

14

SPACER - Call your local BRP dealership

277000449

Unavailable

15

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

16

Hex. Screw M6 X 16

207161660

Unavailable

17

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

18

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

19

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

20

Hex. Elastic Nut M5 | X

232551600

Unavailable

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

23

SCREW M5 X 30 - Call your local BRP dealership

205353060

Unavailable

24

Phillips Screw M4 X 10

208641060

Unavailable

25

Control Plate

204390124

Unavailable

26

Control Ultraflex Ass'y | Includes 26 - 64.

204390150

Unavailable

27

Throttle Lever Pin

277000708

Unavailable

28

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

29

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

30

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

31

Hex. Elastic Nut M5 | X

232551600

Unavailable

32

Screw M4.2 x 19

277000411

Unavailable

33

LH Frame

277000394

Unavailable

34

RH Frame

277000395

Unavailable

35

Half-Case

277000703

Unavailable

36

BUSHING - Call your local BRP dealership

277000397

Unavailable

37

BUSHING - Call your local BRP dealership

277000398

Unavailable

38

BALL - Call your local BRP dealership

277000399

Unavailable

39

SPRING - Call your local BRP dealership

277000400

Unavailable

40

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

41

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

42

BLOCKING PIVOT - Call your local BRP dealership

277000704

Unavailable

43

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

44

LH THROTTLE LEVER - Call your local BRP dealership

277000409

Unavailable

45

Guide Block

277000410

Unavailable

46

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

47

SCREW M5 X 60 - Call your local BRP dealership

277000420

Unavailable

48

Screw M5 X 20

277000421

Unavailable

49

Screw M5 X 70

277000422

Unavailable

50

THROTTLE LEVER PIN - Call your local BRP dealership

277000705

Unavailable

51

SPACER FRAME - Call your local BRP dealership

277000706

Unavailable

52

SPRING - Call your local BRP dealership

277000401

Unavailable

53

Screw M5 X 25

277000412

Unavailable

54

RH Water Seal

277000423

Unavailable

55

LH Water Seal

277000424

Unavailable

56

SPACER - Call your local BRP dealership

277000707

Unavailable

57

Shift Lever Spacer

277000408

Unavailable

58

NUT M6 - Call your local BRP dealership

277000425

Unavailable

59

Screw M6 x 35

277000426

Unavailable

60

Bushing

277000427

Unavailable

61

Washer

277000428

Unavailable

62

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

63

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

64

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

65

THROTTLE CABLE R.H - Call your local BRP dealership

204390077

Unavailable

66

Throttle Cable L.H

204390078

Unavailable

67

Loctite 243, 10 ml

293800060

$20.77

68

Was 271000110 Protection Trim

219704353

Unavailable

69

Tie-Rap 180 mm

414115200

$0.09

70

Tie Wrap 142 mm

293750002

Unavailable

71

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$0.83
