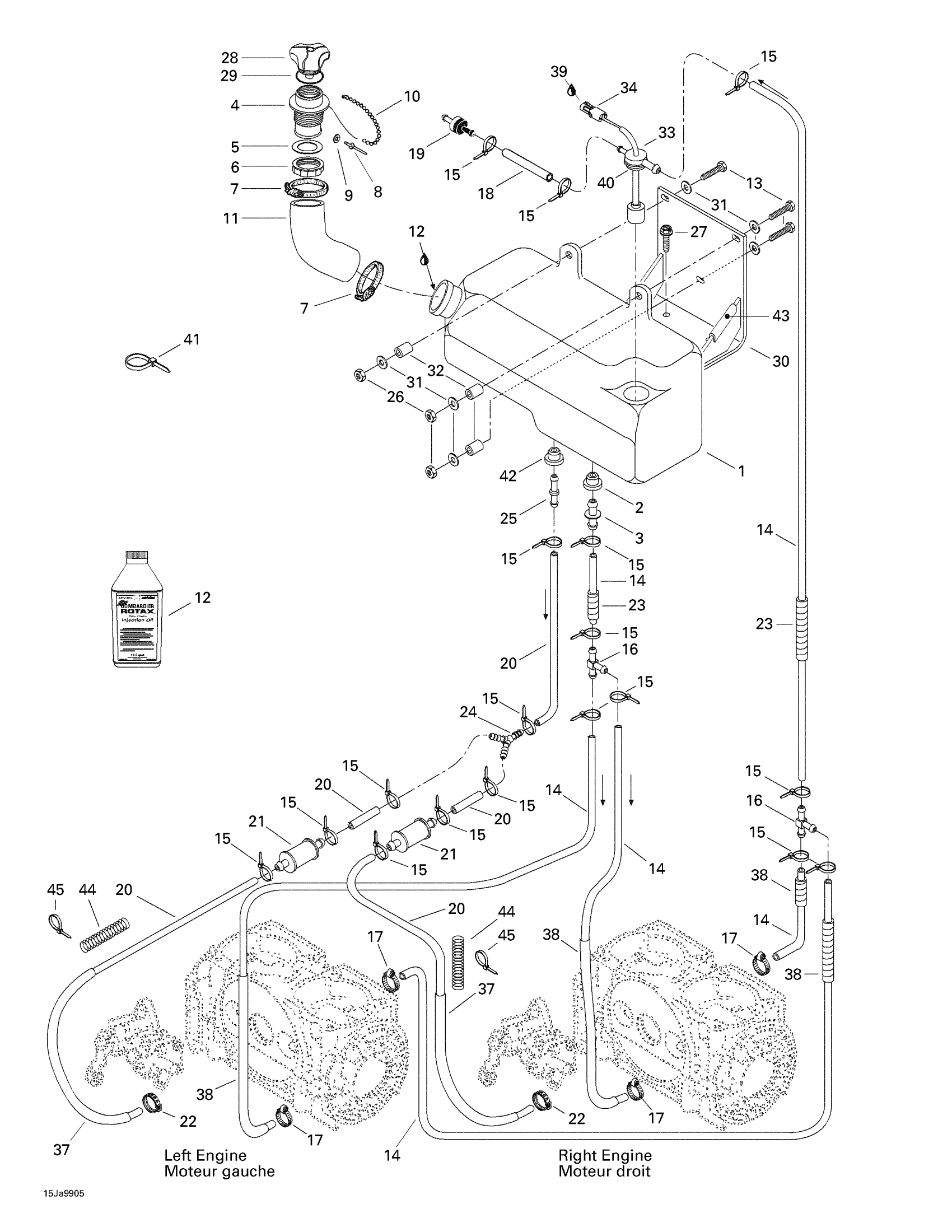

Sea-doo Speedster SK, 5677/5681, 1999 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

204550020

Unavailable

2

Grommet | Europe

707800347

$7.58

3

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

4

Filler Neck

275000212

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

Norma Clamp

293650077

$6.11

8

Pop Rivet 1/8"

293150056

Unavailable

9

Flat Washer M3, Stainless

234032600

$0.54

10

Oil Cap Chain

275500015

Unavailable

11

Filled Hose

204550063

Unavailable

12

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

13

Hex. Screw M6 X 35

207163560

$1.17

14

Was 275500008 Hose 12 mm

219704356

$5.94

15

Tie Wrap 94 mm | 4X4

293750001

$0.83

16

T-FITTING - Call your local BRP dealership

293710053

Unavailable

17

Tridon Gear Clamp

293650170

$1.74

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

19

Check Valve

275500398

$8.57

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$1.40

23

Slit Conduit, Meter

204550045

Unavailable

24

Y-Fitting

204550001

Unavailable

25

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

26

Hex. Elastic Stop Nut M6

232561600

$0.92

27

Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership

204050138

Unavailable

28

Oil Cap

275000186

Unavailable

29

O-RING - Call your local BRP dealership

293250025

Unavailable

30

Oil Tank Support

204550062

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.64

32

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable

33

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

34

Female Housing, 2 Circuits

278000217

$7.59

35

Male Terminal | XT Models

278000222

$2.55

36

Wire Seal

278000218

$3.48

37

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

38

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

40

Grommet

204470104

Unavailable

41

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 180 mm

414115200

$0.09

42

Grommet

709200285

$7.09

43

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

44

Spring

270000377

Unavailable

45

Tie-Rap 180 mm

414115200

$0.09
