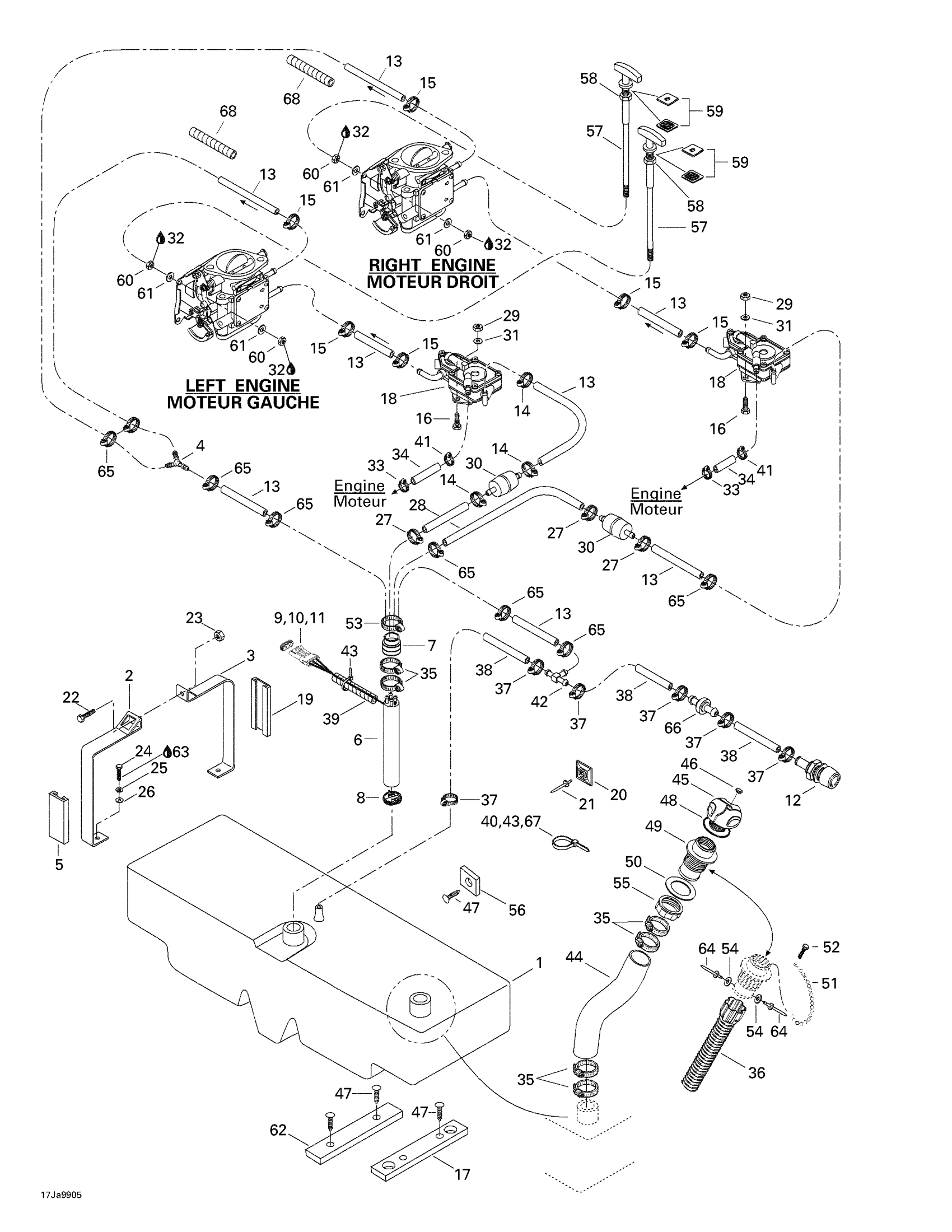

Sea-doo Speedster SK, 5677/5681, 1999 Fuel System Diagram
#
1
Plastic Fuel Tank
204560053
Unavailable
2
Tank Bracket
204560065
Unavailable
3
Tank Bracket
204560072
Unavailable
4
Y-Fitting
293710059
Unavailable
5
Protector Strip
204560075
Unavailable
6
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48
204560223
Unavailable
7
Fuel Tube Adaptor
204560066
Unavailable
8
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
9
Wire Seal
278000218
Unavailable
10
Female Terminal
278000223
Unavailable
11
Male Housing, 3 Circuits
278000273
Unavailable
12
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
13
Hose 6 mm (Meter)
204560099
Unavailable
14
Norma Clamp
293650088
Unavailable
15
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
16
Hex. Forming Screw M6 X 20
207162060
Unavailable
17
Rubber Pad
204060185
Unavailable
18
Fuel Pump
270500390
Unavailable
19
Protector Strip
204560076
Unavailable
20
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
21
Pop Rivet 3/16"
293150008
Unavailable
22
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
23
Hex. Elastic Nut M8
232581600
Unavailable
24
Hex. Screw M8 X 30
207183060
Unavailable
25
Lock Washer 8 mm, Stainless
234181601
Unavailable
26
Flat Washer 8 mm, Stainless
234082600
Unavailable
27
NORMA CLAMP - Call your local BRP dealership
293650087
Unavailable
28
Hose 5/16"
204560070
Unavailable
30
FUEL FILTER - Call your local BRP dealership
204560077
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
34
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
35
Norma Clamp
293650081
Unavailable
36
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
37
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
38
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
Tie Wrap 142 mm
293750002
Unavailable
41
Oetiker Clamp
293650042
Unavailable
42
T-Fitting
204560038
Unavailable
44
Exterior Hose Filler Neck
204560079
Unavailable
45
Fuel Tank Cap, Black | Includes 26 to 27
275500430
Unavailable
46
Black, Snap Cap
293000034
Unavailable
47
Black, Dart
293730006
Unavailable
48
Gasket
293250017
Unavailable
49
Filler Neck
275500247
Unavailable
50
Gasket
293250029
Unavailable
51
Oil Cap Chain
275500015
Unavailable
55
Filler Neck Nut, Fuel
211100012
Unavailable
56
Rubber Pad
274000354
Unavailable
57
RH Choke Cable | Includes 57 - 61.
204250065
Unavailable
LH Choke Cable
204250066
Unavailable
58
Hex. Nut
211100007
Unavailable
59
Choke Plate
291000457
Unavailable
60
Hex. Nut M6
232160600
Unavailable
62
Rubber Pad
293830055
Unavailable
63
Loctite 271, 10 ml
293800005
Unavailable
64
Rivet 1/8”
293150057
Unavailable
65
Norma Clamp
293650088
Unavailable
66
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
68
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
