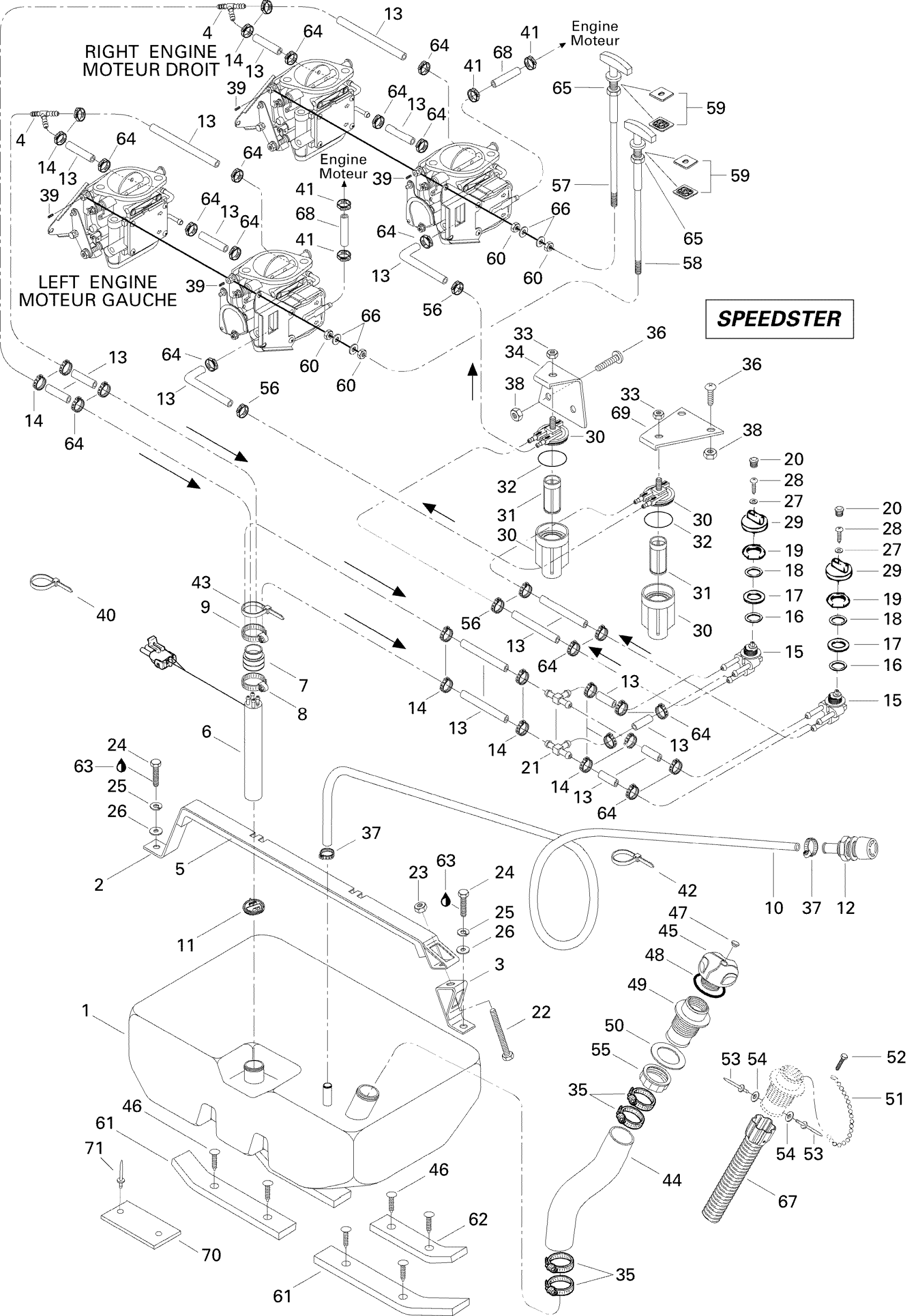

Sea-doo Speedster, 5894, 1996 Fuel System 5894 Diagram

#

Description
Price

1

Plastic Fuel Tank | For Speedster 000 5894 00

275500198

Unavailable

2

Tank Bracket

275500199

Unavailable

3

Strap Bracket

275500202

Unavailable

4

Y-Fitting

293710059

Unavailable

5

Rubber Pad

275500200

Unavailable

6

Baffle Pick-up Ass'y | Includes 6 - 8.

275500237

Unavailable

7

Tube Adapter

275500111

Unavailable

8

Tridon Clamp

293650023

Unavailable

9

Tridon Clamp

293650035

Unavailable

10

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

11

Fuel Filter

275500249

Unavailable

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm

204000068

Unavailable

14

Clic Clamp

293650059

Unavailable

15

Fuel Valve

275500098

Unavailable

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

WASHER - Call your local BRP dealership

293050003

Unavailable

18

Gasket

293250005

Unavailable

19

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

20

Black, Cap

275500241

Unavailable

21

T Fitting

293710040

Unavailable

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

Unavailable

24

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

Unavailable

26

Flat Washer 8 mm, Stainless

234082600

Unavailable

27

Flat Washer 4 mm

234040600

Unavailable

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

30

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

Unavailable

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

Fixation Plate

275500207

Unavailable

35

Tridon Clamp

293650023

Unavailable

36

Screw M6 x 16

211000003

Unavailable

37

TRIDON GEAR CLAMP - Call your local BRP dealership

293650005

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$0.92

39

Allen Screw M4 x 6

210100014

Unavailable

40

Tie Wrap 142 mm

293750002

Unavailable

41

CAILLAU CLIC CLAMP - Call your local BRP dealership

293650063

Unavailable

42

Tie Wrap 368 mm

293750008

$0.85

43

Tie-Rap 180 mm

414115200

$0.09

44

Filler Neck Hose

275500259

Unavailable

45

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

46

Black, Dart

293730006

Unavailable

47

Black, Snap Cap

293000034

Unavailable

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

Unavailable

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.25

53

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.54

55

Filler Neck Nut, Fuel

211100012

Unavailable

56

Clic Clamp

293650057

Unavailable

57

Choke Cable - Right | Includes 59,60,65,66

270000185

Unavailable

58

Choke Cable Ass'y | Includes 58 - 62.

270000186

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

Unavailable

61

Rubber Pad 330 mm

293830020

Unavailable

62

Rubber Pad

293830021

Unavailable

63

Loctite 271, 10 ml

293800005

Unavailable

64

Caillau Clic Clamp

293650060

Unavailable

65

Hex. Nut

211100007

Unavailable

66

Stainless Flat Washer M6

234061600

$0.25

67

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

68

IMPULSE HOSE - Call your local BRP dealership

275500282

Unavailable

69

Fuel Filter Support

204560007

Unavailable

70

Access Cover

204600002

Unavailable

71

Pop RIvet 1/8 X ,375

293150285

Unavailable
