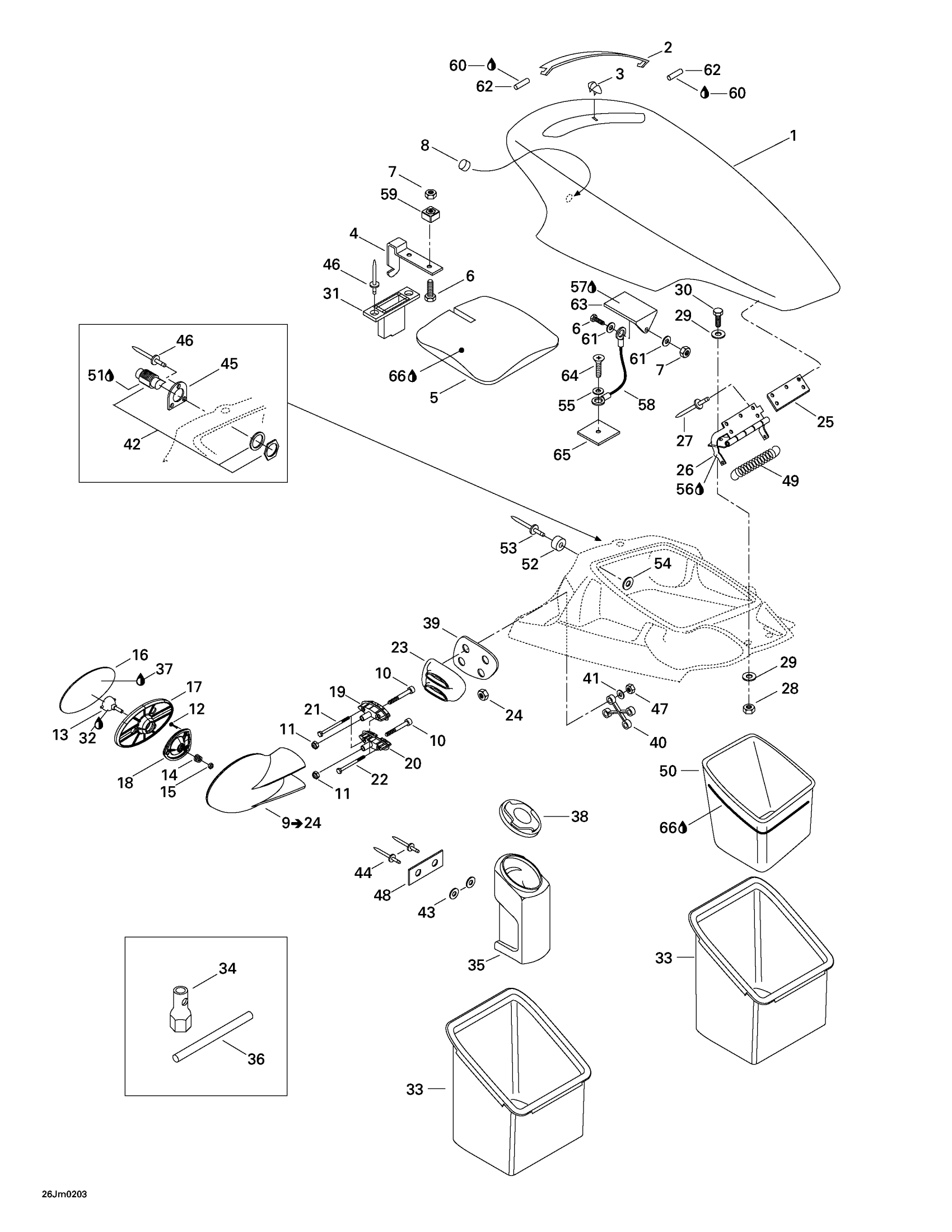

Sea-doo Speedster, 5700, 2002 Front Storage Compartment Diagram

#

Description
Price

1

Windshield This part replaces 204620079.

291003861

$302.87

2

DEFLECTOR - Call your local BRP dealership

204073803

Unavailable

3

REAR STOPPER - Call your local BRP dealership

204620106

Unavailable

4

LATCH - Call your local BRP dealership

204620070

Unavailable

5

FOAM, WINDSCREEN - Call your local BRP dealership

204620080

Unavailable

6

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

$0.74

7

Hex. Elastic Nut M5 | X

232551600

$0.91

8

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

9

RH Mirror Ass'y | Includes 37 to 54

204070995

Unavailable

10

Socket Head Screw M8 X 75

205087560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.25

12

Hex. Flange Screw K40 X 16

241141660

$1.25

13

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

14

Mirror Spring

269500453

$7.97

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

MIRROR - Call your local BRP dealership

269500454

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Screw M6 X 100

230060060

$6.08

22

HEX. SCREW M6 X 90 - Call your local BRP dealership

207069060

$5.62

23

Adaptor, Black

204070997

Unavailable

24

Hex. Nut M6

232061600

$0.91

25

RETAINING PLATE - Call your local BRP dealership

204620087

Unavailable

26

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

27

Pop Rivet 3/16"

293150039

$1.37

28

Hex. Elastic Nut M5 | X

232551600

$0.91

29

Flat Washer 5 mm, Stainless

234052600

$0.64

30

Hex. Screw M5 X 20

207152060

$1.22

31

LATCH GUIDE - Call your local BRP dealership

204072064

Unavailable

32

Synthetic Grease, 400 G

293550010

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

34

Socket Wrench

204630050

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

$23.82

36

Steel Bar

204630051

Unavailable

37

Silicone Sealant 51388, 300 ml

296000309

$35.72

38

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

39

RH Gasket

293250035

Unavailable

40

RH Reinforcement Plate

291000679

Unavailable

41

Stainless Flat Washer M6

234061600

$0.25

42

LATCH KIT - Call your local BRP dealership

204620063

Unavailable

43

Flat Washer M3, Stainless

234032600

$0.54

44

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

$0.35

45

LATCH PLATE - Call your local BRP dealership

204070304

Unavailable

46

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

47

Hex. Nut M6

232061600

$0.91

48

GASKET - Call your local BRP dealership

293250037

$5.00

49

HINGE SPRING - Call your local BRP dealership

204620018

Unavailable

50

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

51

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

52

Rubber Stopper

293830043

Unavailable

53

Pop Rivet 3/16"

293150014

$0.87

54

Flat Washer M5, Stainless

234051600

$0.64

55

Flat Washer M6, Stainless

234062600

$0.64

56

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

57

Not Available As Spare Part - Friction Washer

Unavailable

58

RETAINER CABLE - Call your local BRP dealership

204620194

$29.20

59

NUT HOUSING - Call your local BRP dealership

204073798

Unavailable

60

Glue Tube, Loctite 454, 20 G

413708300

$59.97

61

Flat Washer 5 mm, Stainless

234052600

$0.64

62

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

$1.45

63

CABLE ATTACHEMENT - Call your local BRP dealership

204620127

Unavailable

64

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable
