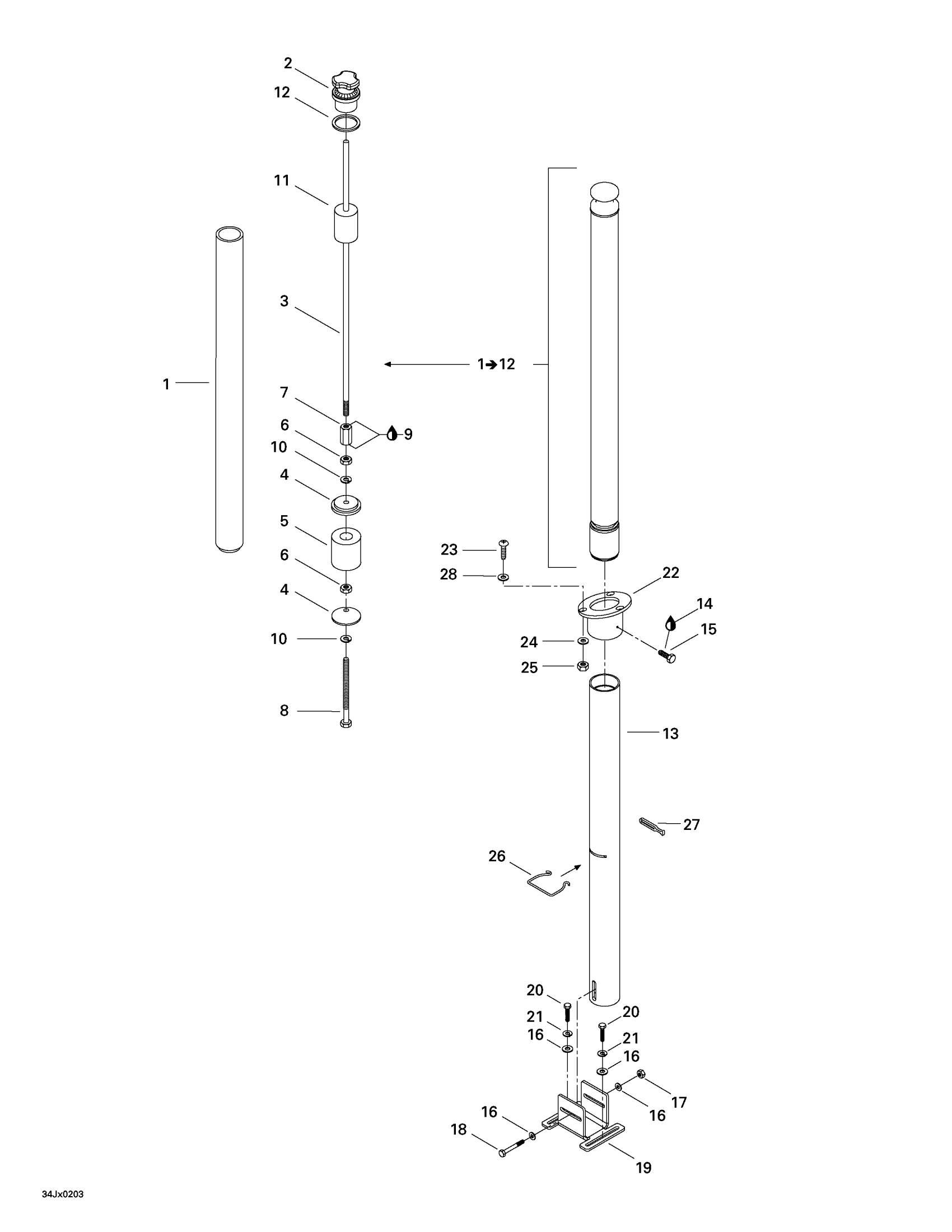

Sea-doo Speedster, 5700, 2002 Body And Accessories 2 Diagram

#

Description
Price

1

Ski Pole Ass'y | Includes 1 to 13

204070337

Unavailable

1

INNER POST - Call your local BRP dealership

204070338

Unavailable

2

Ski Cap

204070440

Unavailable

3

Threaded Rod

204070340

Unavailable

4

Compression Disk

204070341

Unavailable

5

Compression Boot

204070376

Unavailable

6

Hex. Nut M6

232061600

$0.91

7

Hex. Coupling Nut M6 X 18

204070414

Unavailable

8

Hex. Screw M6 X 90

207169060

$4.26

9

Loctite 271, 10 ml

293800005

$20.77

10

External Serrated Lock Washer 6 mm

234461608

$0.92

11

Rod Holder

204070419

Unavailable

12

Sliding Ring

204070420

Unavailable

13

Outer Post Ass'y

204070448

Unavailable

14

Loctite 271, 10 ml

293800005

$20.77

15

Hex. Screw M4 X 16 | Europe

207141660

$1.22

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Elastic Nut M8

232581600

$1.25

18

HEX. SCREW M8 X 90 - Call your local BRP dealership

207089060

$3.82

19

Post Base

204070345

Unavailable

20

Hex. Screw M8 X 30

207183060

$1.30

21

Lock Washer 8 mm, Stainless

234181601

$0.46

22

Collar Ass'y

204070344

Unavailable

23

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

$1.69

24

Flat Washer M6, Stainless

234062600

$0.64

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

Ski Pole Lock

204070449

Unavailable

27

Latch

507023800

Unavailable

28

Flat Washer 8 mm, Stainless

234082600

$1.98
