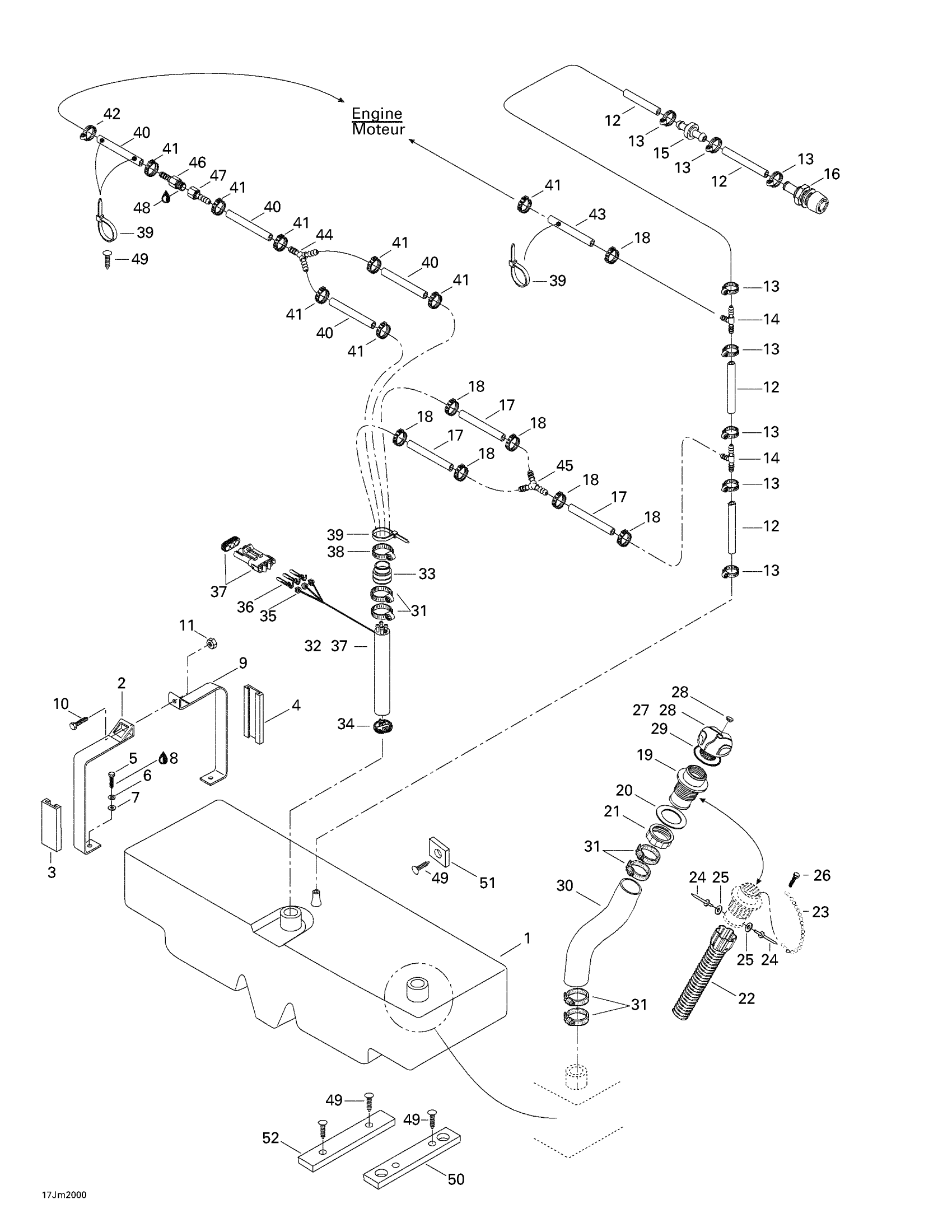

Sea-doo Speedster, 5690, 2000 Fuel System Diagram

#

Description
Price

1

Plastic Fuel Tank

204560053

Unavailable

2

Tank Bracket

204560065

Unavailable

3

Protector Strip

204560075

Unavailable

4

Protector Strip

204560076

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.49

6

Lock Washer 8 mm, Stainless

234181601

$0.52

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

Loctite 271, 10 ml

293800005

$23.85

9

Tank Bracket

204560072

Unavailable

10

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.43

12

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

13

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

14

T-Fitting

204560038

Unavailable

15

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

16

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

17

Hose 6 mm (Meter)

204560099

Unavailable

18

Norma Clamp

293650088

Unavailable

19

Filler Neck

275500247

Unavailable

20

Gasket

293250029

$13.85

21

Filler Neck Nut, Fuel

211100012

$11.51

22

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

23

Oil Cap Chain

275500015

Unavailable

24

Rivet 1/8”

293150057

Unavailable

25

Flat Washer M3, Stainless

234032600

$0.52

26

Screw K40 X 10

241140060

$1.43

27

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

28

Black, Snap Cap

293000034

$8.58

29

Gasket

293250017

Unavailable

30

Exterior Hose Filler Neck

204560079

Unavailable

31

Norma Clamp

293650081

$11.33

32

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

33

Fuel Tube Adaptor

204560066

Unavailable

34

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

35

Wire Seal

278000218

$4.00

36

Female Terminal

278000223

$2.93

37

Male Housing, 3 Circuits

278000273

$8.72

38

Norma Clamp

293650077

$7.01

39

Tie-Rap 180 mm

414115200

$0.10

40

Hose 5/16"

204560070

Unavailable

41

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

42

Tridon Gear Clamp

293650172

$3.07

43

Hose 6 mm (Meter)

204560099

Unavailable

44

Y-Fitting

204550001

Unavailable

45

Y-Fitting

293710059

$9.40

46

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

47

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

48

Was 293800013 Loctite 56765

219704454

$63.40

49

Black, Dart

293730006

$0.93

50

Rubber Pad

204060185

Unavailable

51

Rubber Pad

274000354

Unavailable

52

Rubber Pad

293830055

Unavailable
