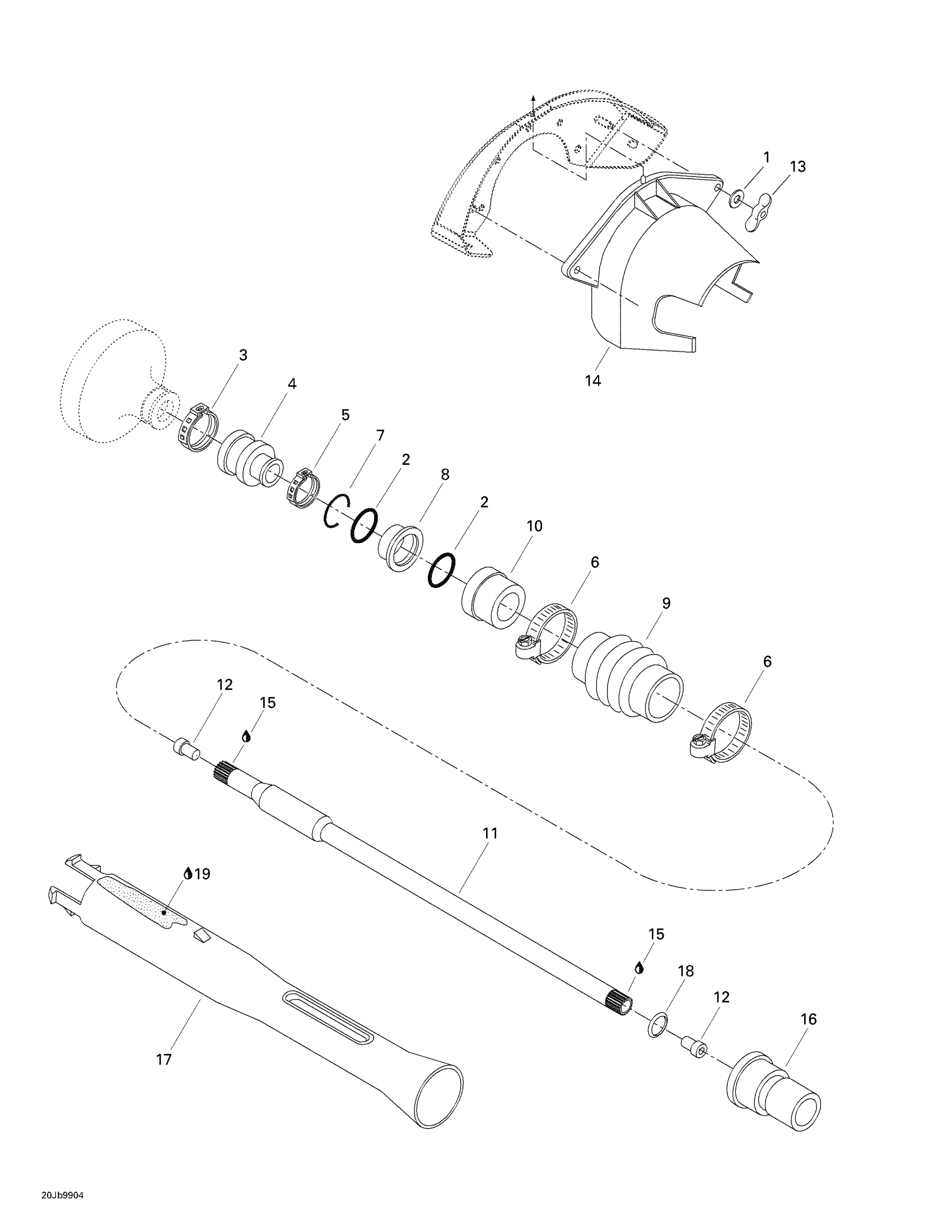

Sea-doo Speedster, 5678, 1999 Drive System Diagram
#
Description
Price
1
Flat Washer 8 mm, Stainless
234082600
Unavailable
2
O-Ring
293300032
Unavailable
3
OETIKER CLAMP - Call your local BRP dealership
293650021
Unavailable
4
RUBBER BOOT - Call your local BRP dealership
272000001
Unavailable
5
OETIKER CLAMP - Call your local BRP dealership
293650067
Unavailable
6
Norma Clamp
293650075
Unavailable
7
C-CLIP - Call your local BRP dealership
272000135
Unavailable
8
Support Ring
272000064
Unavailable
9
BELLOWS - Call your local BRP dealership
272000184
Unavailable
10
Carbon Ring
272000770
Unavailable
11
Drive Shaft
272000096
Unavailable
12
DRIVE SHAFT PLUG - Call your local BRP dealership
272000019
Unavailable
13
Wing Nut M8
232681100
Unavailable
14
RH Flywheel Guard
204120133
Unavailable
LH Flywheel Guard
204120118
Unavailable
15
Synthetic Grease, 400 G
293550010
Unavailable
16
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
17
SHAFT PROTECTOR - Call your local BRP dealership
204120130
Unavailable
18
Retaining Ring
204120132
Unavailable
19
Instant Gasket
219701421
Unavailable
