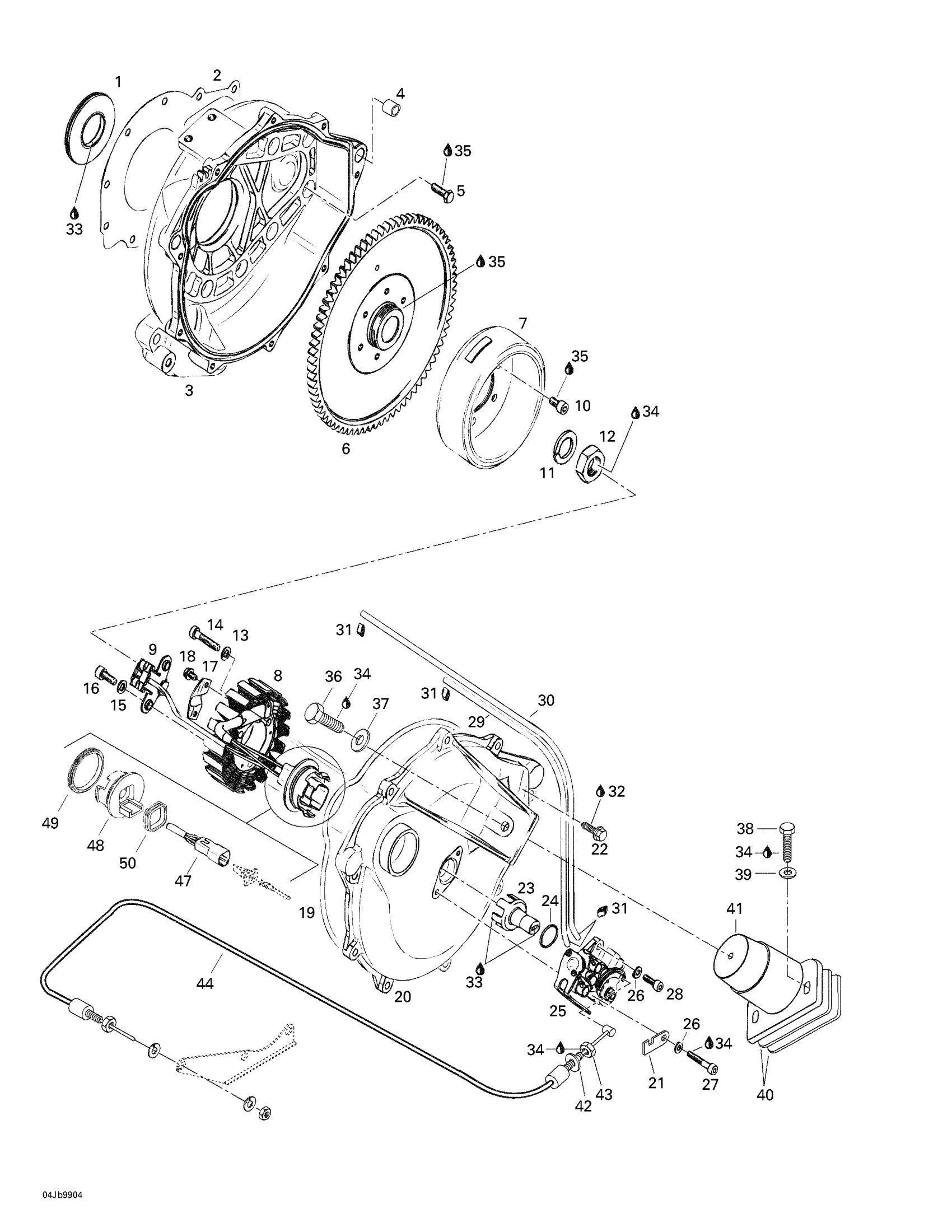

Sea-doo Speedster, 5678, 1999 Magneto, Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

Unavailable

2

Gasket

290931470

Unavailable

3

Ignition Housing (Silver) | Includes 3 - 4.

290810713

Unavailable

4

Dowel Tube

290229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.56

6

Flywheel Hub

290966442

Unavailable

7

MAGNETO FLYWHEEL - Call your local BRP dealership

290886598

Unavailable

8

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

9

Sensor Ass'y

420966832

Unavailable

10

Socket Head Screw M6 X 12

205061260

$1.26

11

Lock Washer 18 mm

290945757

Unavailable

12

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

13

Lock Washer

290445330

Unavailable

14

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 x 16

420241237

Unavailable

17

Retainer Plate

290853080

Unavailable

18

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

19

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

20

Ignition Cover (Silver)

290810722

Unavailable

21

Link

204250045

Unavailable

22

Hex. Flange Screw M6 x 25

290240033

Unavailable

23

Shaft Oil Pump

290837392

Unavailable

24

O-RING - Call your local BRP dealership

293300018

Unavailable

25

PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333.

420887333

Unavailable

26

Lock Washer

290845389

Unavailable

27

Socket Head Screw M5 x 30

290940883

Unavailable

28

Cylindrical Slotted Screw M5 x 16

215951660

Unavailable

29

Oil Hose 1500Mm Long

219704404

Unavailable

30

Oil Hose 1500Mm Long

219704404

Unavailable

31

Clamp

290256408

Unavailable

32

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

33

Dow Corning 111, 150 g

413707000

$57.82

34

Loctite 243, 10 ml

293800060

$20.77

35

Sealant Loctite 648

219703000

Unavailable

36

Hex. Screw M8 X 18

207181860

Unavailable

37

Flat Washer 8 mm, Stainless

234082600

Unavailable

38

Hex. Screw M8 X 40

207184060

Unavailable

39

Stainless, Flat Washer 8 mm

234081600

Unavailable

40

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

41

Rubber Mount, Black

270000422

Unavailable

42

Lock Washer Helical M6

234161601

Unavailable

43

Hex. Nut M6

232160600

Unavailable

44

Injection Cable | Includes 44 - 46.

270000384

Unavailable

45

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886390

Unavailable

46

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

47

Male Terminal Housing, 6 Circuits

710001539

$15.57

48

Adaptor

270000138

Unavailable

49

Gasket

293300033

Unavailable

50

Gasket

293200030

Unavailable
